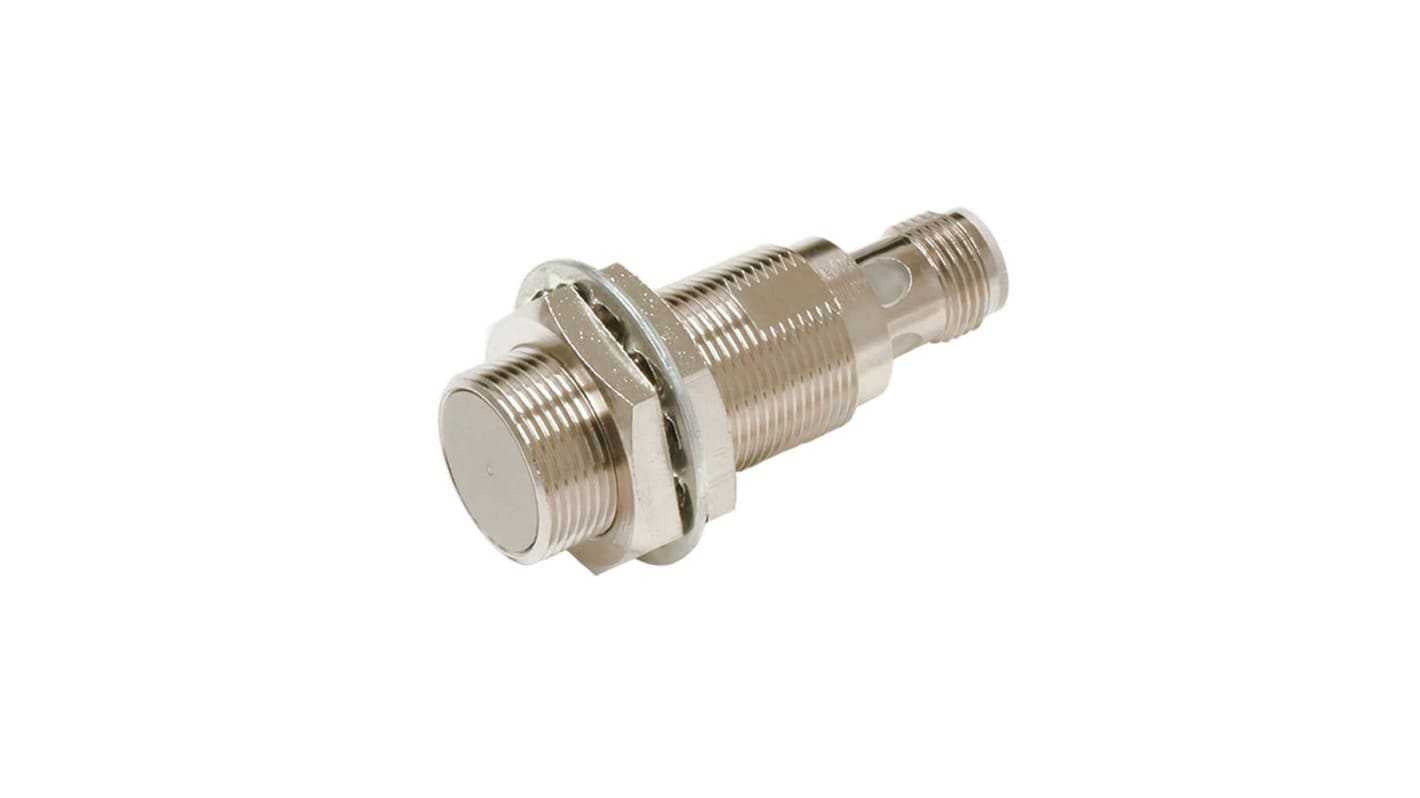

Omron Proximity Sensors E2E-X8B218-M1

Omron Proximity Sensors E2E-X8B218-M1

SKUE2E-X8B218-M1BrandOmron
Regular price AED 214.28
Regular price Sale price AED 214.28
Sale Sold out
Shipping calculated at checkout.

Omron, Cylindrical Inductive Proximity Sensor, PNP, M18, Sensing 8 mm

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Omron
  • Thread Size: M18
  • Sensor Technology: Inductive
  • Body Style: Threaded Barrel
  • Detection Range: 8 mm
  • Output Function: NC
  • Digital Switching Output Type: PNP
  • Connection Type: M12
  • Supply Voltage: 10 ? 30 V dc
  • IP Rating: IP67, IP67G, IP69K
  • Length: 53mm
  • Mounting Type: Quasi-Flush
  • Maximum dc Voltage: 30V
  • Minimum Operating Temperature: -25°C
  • Shielding: Quasi-Shielded
  • Maximum Switching Frequency: 500Hz
  • Switching Current: 200 mA
  • Switching Frequency: 500 Hz
  • Standards Met: CE
  • Series: E2E
  • Maximum Operating Temperature: +70°C
  • Country of Origin: China
