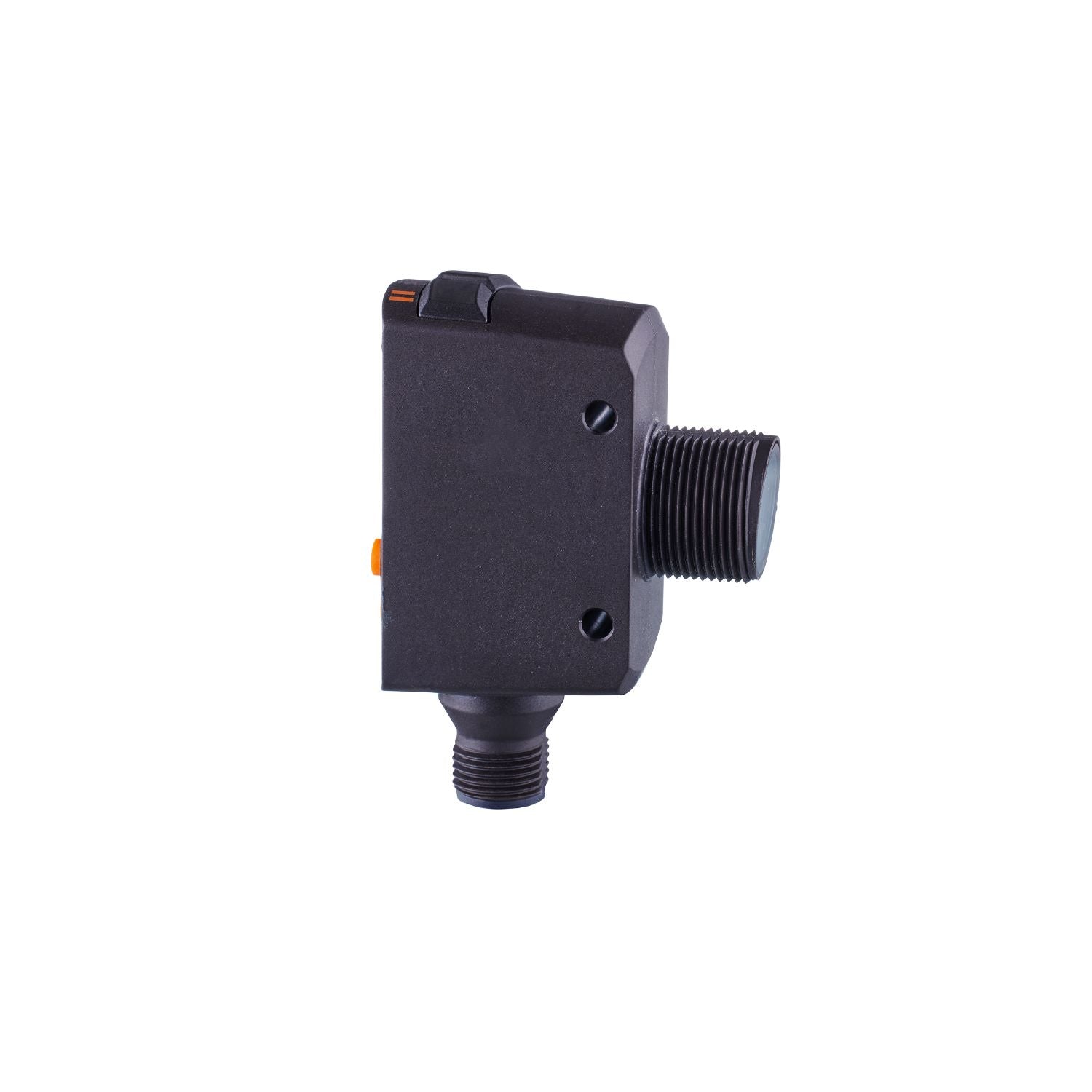

OGD550 - Rectangular Photoelectric Sensor, Distance Measurement (IP65; IP67)

Name: OGD550 - Rectangular Photoelectric Sensor, Distance Measurement (IP65; IP67)
Brand: ifm
SKU: OGD550
Price: 1730.00 AED
Availability: InStock

SKUOGD550Brandifm

AED 1,730.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The OGD550 is a high-performance photoelectric sensor engineered for precise non-contact object detection in industrial environments. Designed in a versatile rectangular style with a rugged housing: stainless steel (316L/1.4404); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA housing, this sensor features distance measurement detection technology. Equipped with a PNP/NPN; (parameterisable) output and 1 x M12; coding: A connectivity, it offers a dependable solution for your automated manufacturing systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Sensor Style: Rectangular
Detection Type: Distance Measurement
Output Type: PNP/NPN; (Parameterisable)
Switching Mode: 2 x normally open / normally closed; (parameterisable)
Electrical Connection: 1 x M12; Coding: A
Communication Protocol: 1.1.3
Light Source: red light
IP Rating: IP65; IP67

Maximum Current: 100
Interface: IO-Link
Housing Material: Housing: Stainless Steel (316L/1.4404); PPSU; ABS; PMMA; PBT / PC; EPDM; Front Pane: PMMA
Series: OGD550
Minimum Operating Temperature: -25°C
Maximum Operating Temperature: 60°C
Standards Met: EN 60947-5-2 |
Thread Size: M18 x 1
