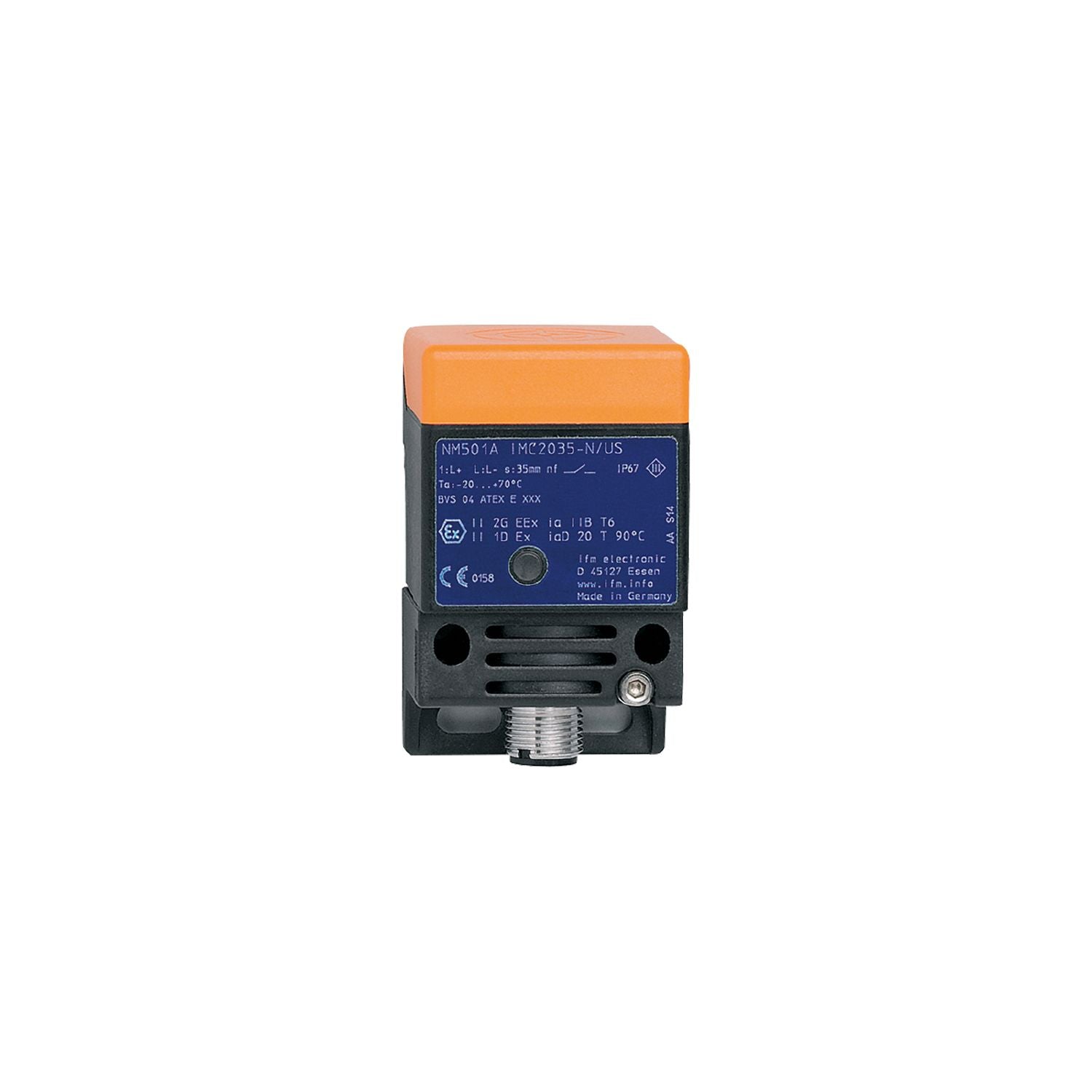

NM500A - ifm rectangular Proximity Sensor

Name: NM500A - ifm rectangular Proximity Sensor
Brand: ifm
SKU: NM500A
Price: 249.00 AED
Availability: InStock

SKUNM500ABrandifm

AED 249.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The NM500A is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 20mm sensing range and a rugged PPE housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 7.5...30; (when used outside the hazardous area) supply voltage, and a NAMUR output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: NAMUR
Detection Range: 20
Output Function: normally closed
Connection Type: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
Supply Voltage: 7.5...30; (when used outside the hazardous area)
IP Rating: IP67

Mounting Type: Flush
Housing Material: housing: PPE; sensing face: PPE orange; bevelled housing part: PPS; mounting adapter: PPS black; screw: steel galvanised
Minimum Operating Temperature: -20°C
Switching Current: 30; (when used outside the hazardous area)
Switching Frequency: 200 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 60947-5-6 |
Series: NM500A
