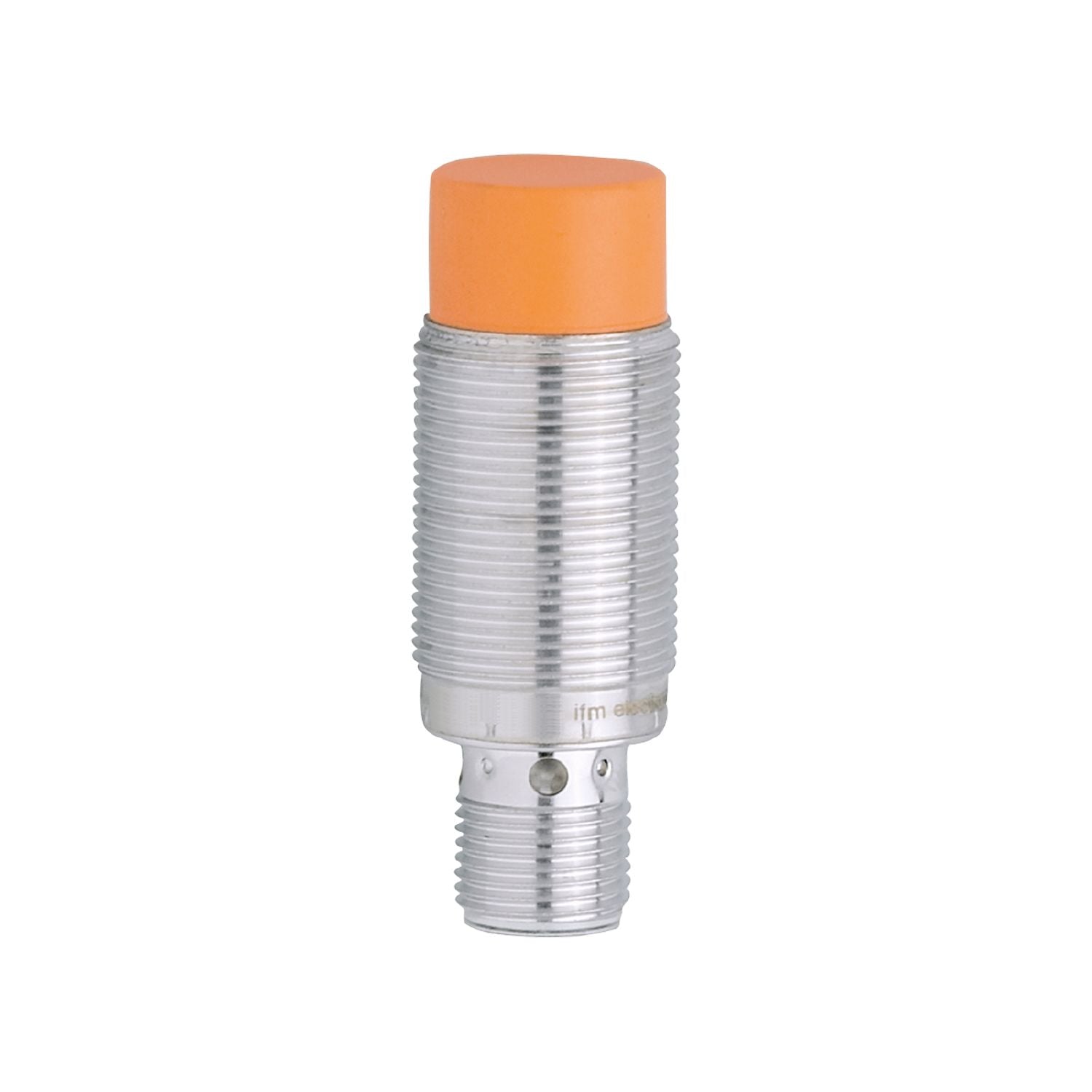

NG500A - ifm threaded type Proximity Sensor

Name: NG500A - ifm threaded type Proximity Sensor
Brand: ifm
SKU: NG500A
Price: 193.00 AED
Availability: InStock

SKUNG500ABrandifm

AED 193.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The NG500A is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 12mm sensing range and a rugged brass special coating housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 7.5...30; (when used outside the hazardous area) supply voltage, and a NAMUR output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: NAMUR
Detection Range: 12
Output Function: normally closed
Connection Type: 1 x M12; coding: A
Supply Voltage: 7.5...30; (when used outside the hazardous area)
IP Rating: IP67

Mounting Type: Non-Flush
Housing Material: housing: brass special coating; sensing face: PBT; LED window: PA
Minimum Operating Temperature: -20°C
Switching Current: 30; (when used outside the hazardous area)
Switching Frequency: 300 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 60947-5-6 |
Series: NG500A
