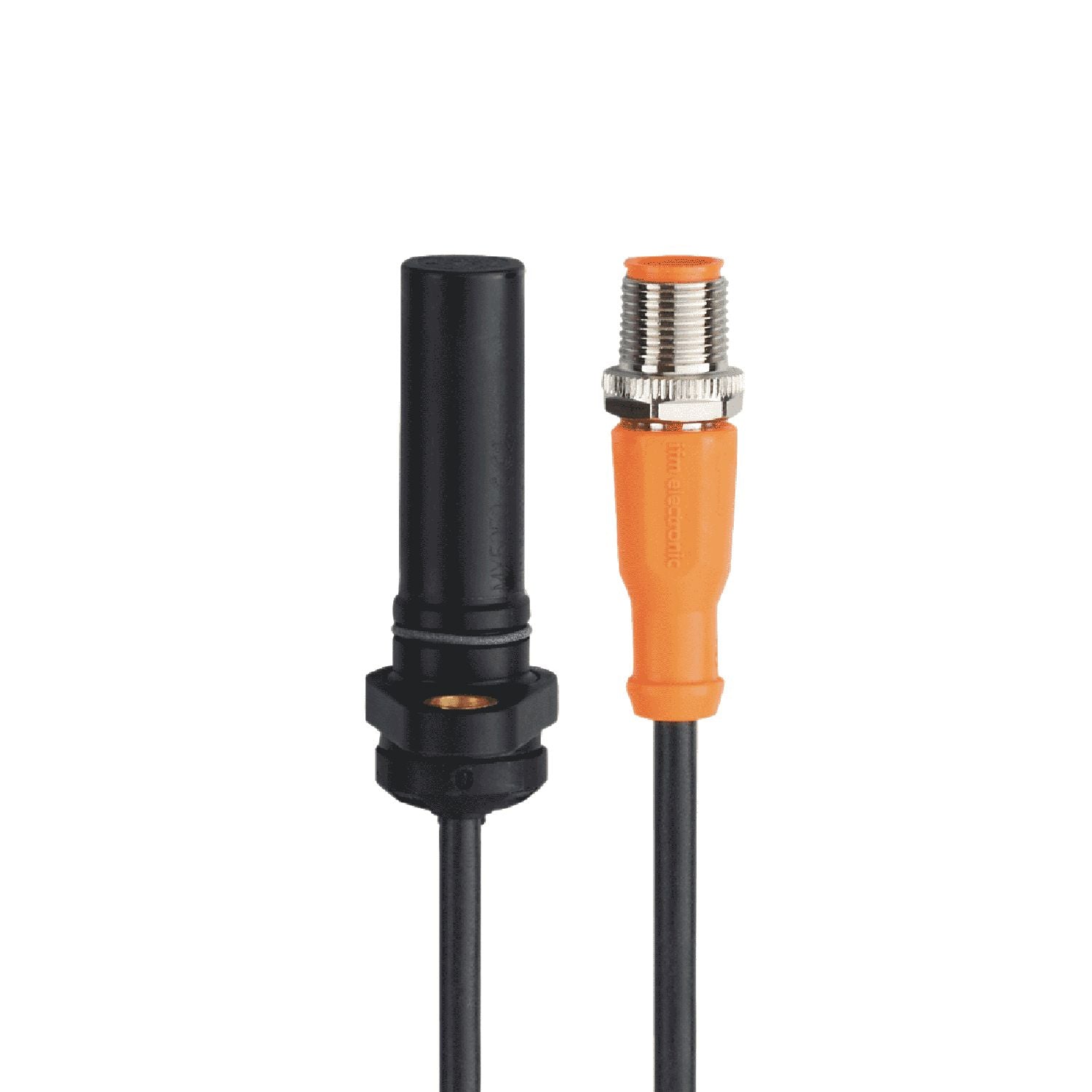

MX5050 - ifm cylindrical Proximity Sensor

Name: MX5050 - ifm cylindrical Proximity Sensor
Brand: ifm
SKU: MX5050
Price: 364.00 AED
Availability: InStock

SKUMX5050Brandifm

AED 364.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MX5050 is a highly reliable cylindrical proximity sensor engineered by ifm for precision industrial automation. Featuring a 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)mm sensing range and a rugged brass housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: cylindrical
Output Type: PNP
Detection Range: 1.7 (Using Toothed Wheels With A Different Modulus Has An Influence On The Sensing Range And The Phase Position.)
Output Function: normally open
Connection Type: 1 x M12; coding: A
Cable Length: 0.5 m
Supply Voltage: 10...30 DC
IP Rating: IP65; IP68; IP69K

Housing Material: brass; PA; O-ring: FKM
Maximum DC Voltage: 1
Minimum Operating Temperature: -32°C
Switching Current: 50
Switching Frequency: 1...15000 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 | 4 kV CD / 8 kV AD; EN 61000-4-3 | 10 V/m; EN 61000-4-4 | 2 kV; EN 61000-4-6 | 10 V/m; EN 61000-4-8 | 30 A/m; EN 55011 | 0 class B
Series: MX5050
Short Circuit Overload Protection: yes
