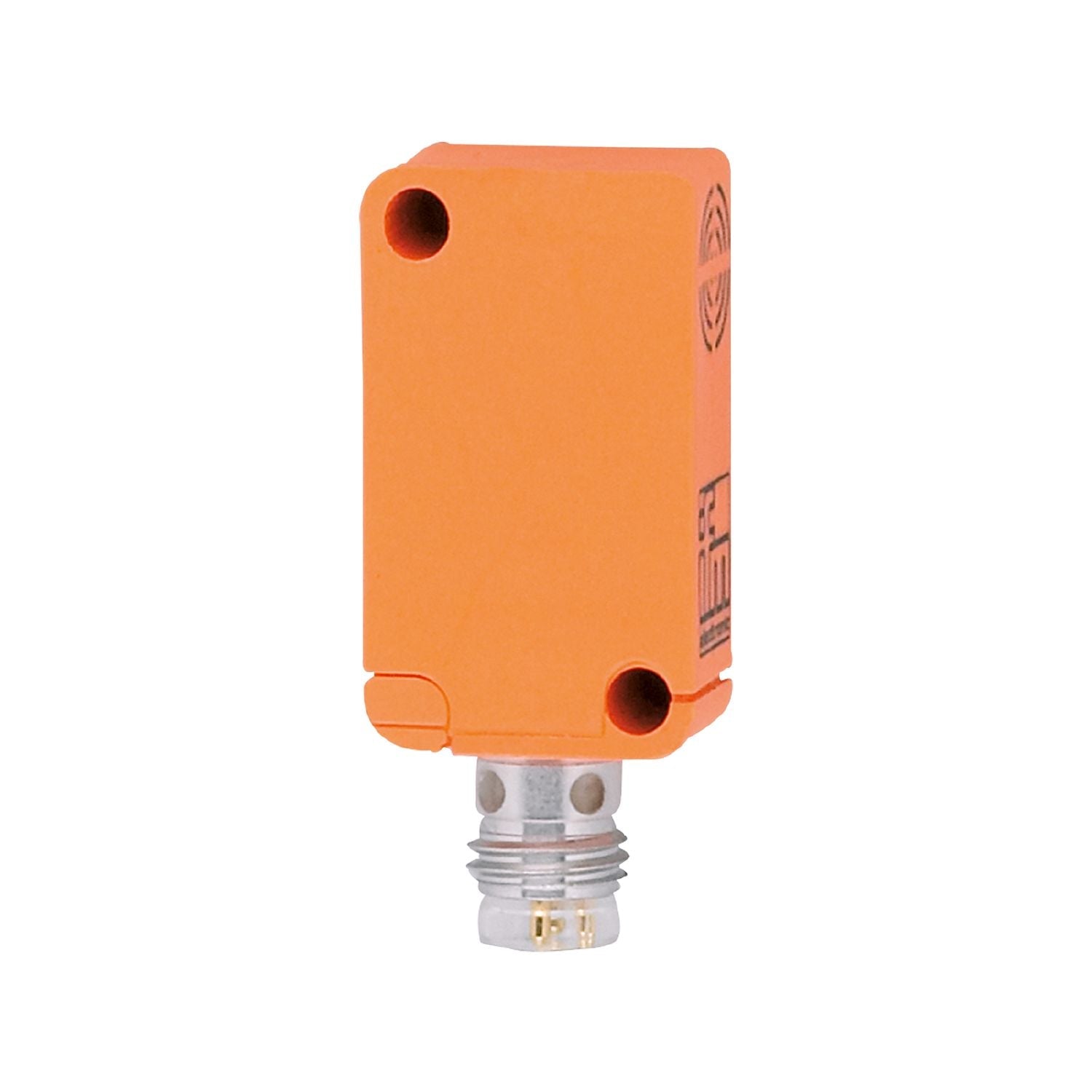

MS5013 - ifm rectangular Proximity Sensor

Name: MS5013 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: MS5013
Price: 376.00 AED
Availability: InStock

SKUMS5013Brandifm

AED 376.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MS5013 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 60; (referred to magnet M 4.0)mm sensing range and a rugged PBT orange housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: rectangular
Output Type: PNP
Detection Range: 60 (Referred To Magnet M 4.0)
Output Function: normally closed
Connection Type: 1 x M8; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP67

Housing Material: housing: PBT orange
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 5000 Hz
Maximum Operating Temperature: 75°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: MS5013
Short Circuit Overload Protection: yes
