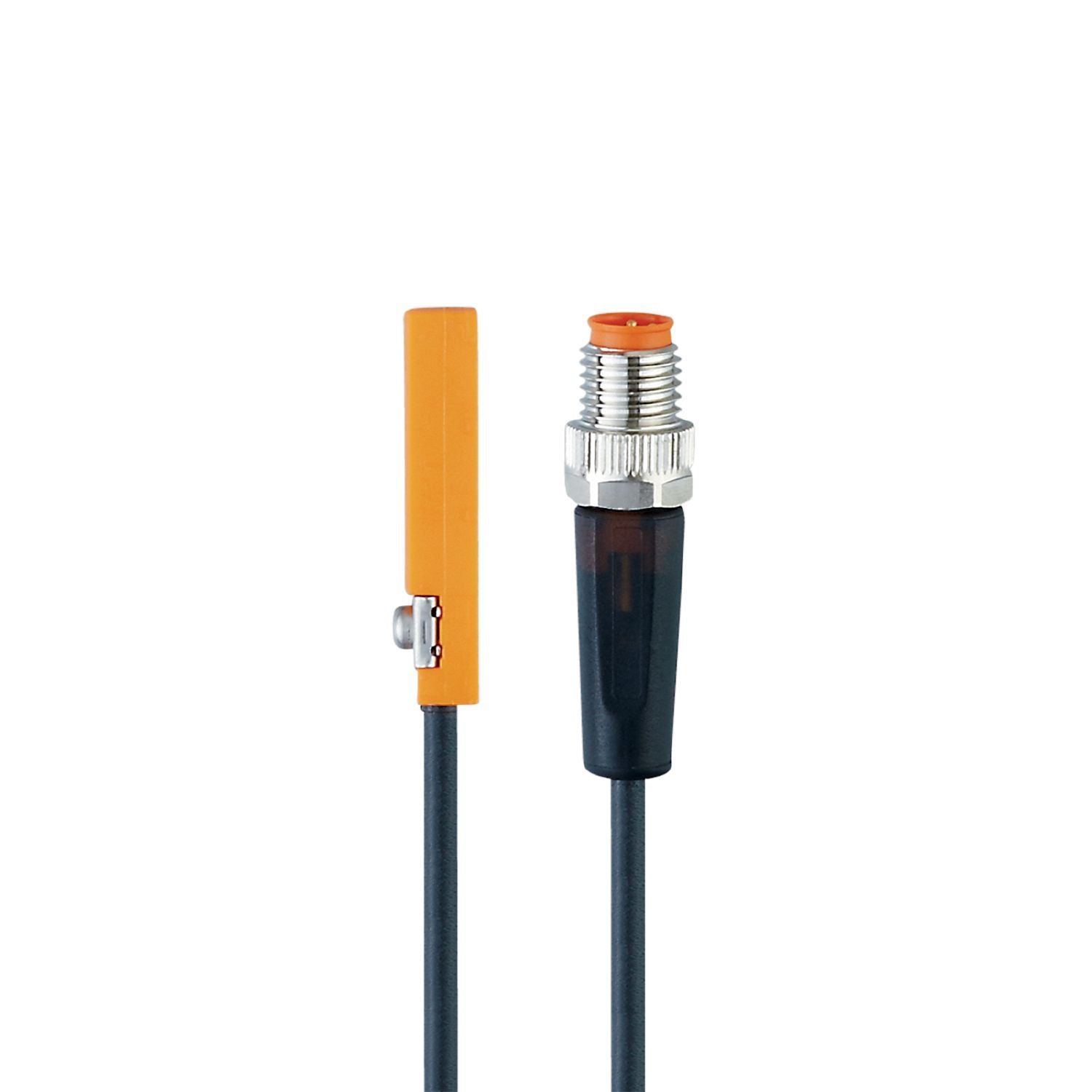

MR0102 - ifm threaded type Proximity Sensor

Name: MR0102 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: MR0102
Price: 150.00 AED
Availability: InStock

SKUMR0102Brandifm

AED 150.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MR0102 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a rugged PA housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 5...50 AC / 5...60 DC; (UL supply class 2: 5...60 DC / 5...30 AC) supply voltage, and a PNP/NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP/NPN
Output Function: normally open
Connection Type: 1 x M8; coding: A; Locking: knurled nut, rotatable
Cable Length: 0.3 m
Supply Voltage: 5...50 AC / 5...60 DC; (UL supply class 2: 5...60 DC / 5...30 AC)
IP Rating: IP65; IP67
Mounting Type: Flush

Housing Material: housing: PA; fastening clamp: stainless steel
Maximum DC Voltage: 5
Minimum Operating Temperature: -25°C
Switching Current: 100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.)
Switching Frequency: 1000 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | - CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 1 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: MR0102
Short Circuit Overload Protection: no
