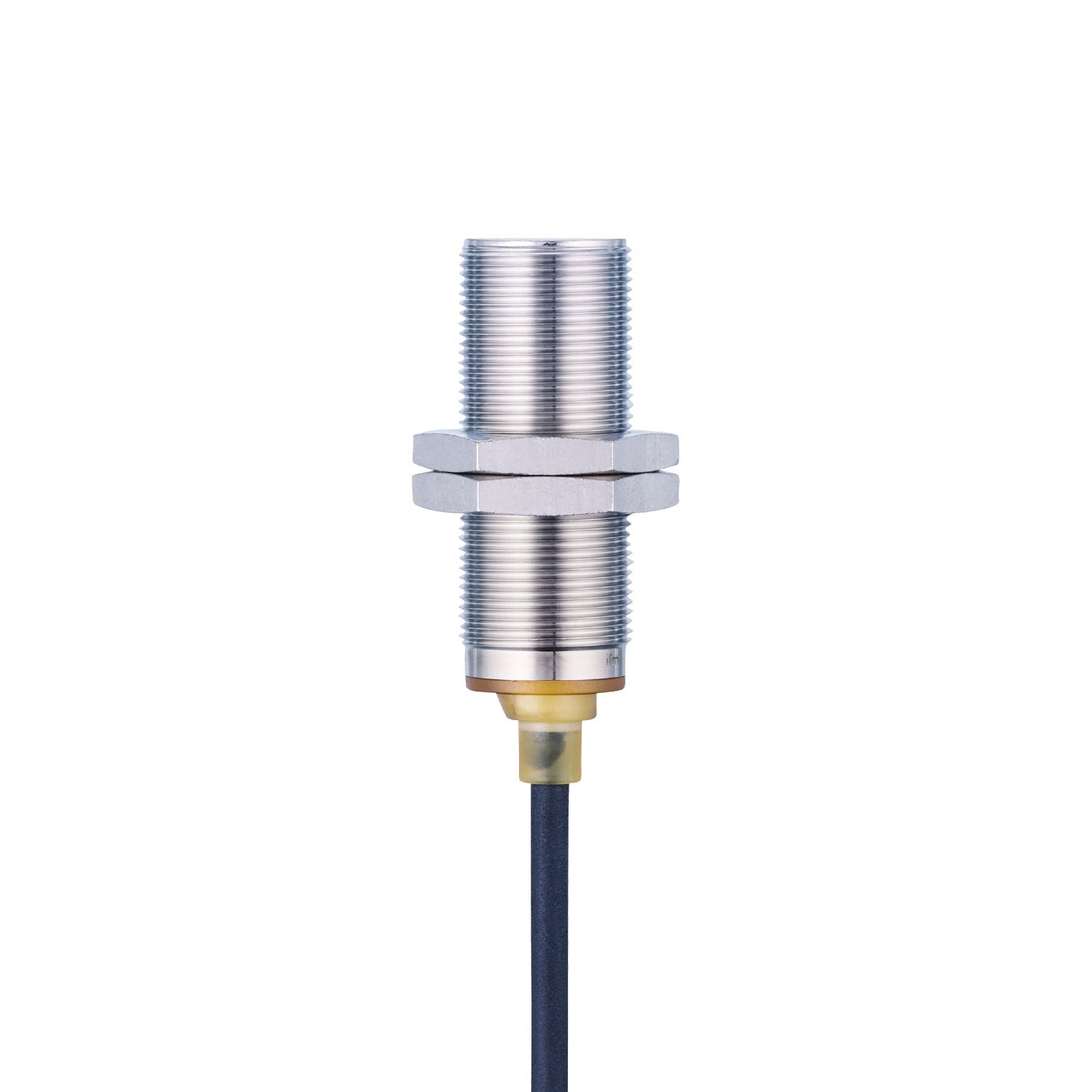

MGS212 - ifm threaded type Proximity Sensor

Name: MGS212 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: MGS212
Price: 345.00 AED
Availability: InStock

SKUMGS212Brandifm

AED 345.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MGS212 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 70; (referred to magnet M 4.0)mm sensing range and a rugged stainless steel (316L / 1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC; ("supply class 2" to cULus) supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 70 (Referred To Magnet M 4.0)
Output Function: normally open
Cable Length: 2 m
Supply Voltage: 10...30 DC; ("supply class 2" to cULus)
IP Rating: IP67

Housing Material: housing: stainless steel (316L / 1.4404); cable plug: PEI; lock nuts: brass
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 5000 Hz
Maximum Operating Temperature: 75°C
Standards Met: EN 61000-4-2 | 4 kV CD / 8 kV AD; EN 61000-4-3 | 10 V/m; EN 61000-4-4 | 2 kV; EN 61000-4-5 | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 | 10 V; EN 55011 | class B; DIN ISO 11452-2 | 100 V/m
Series: MGS212
Short Circuit Overload Protection: yes
