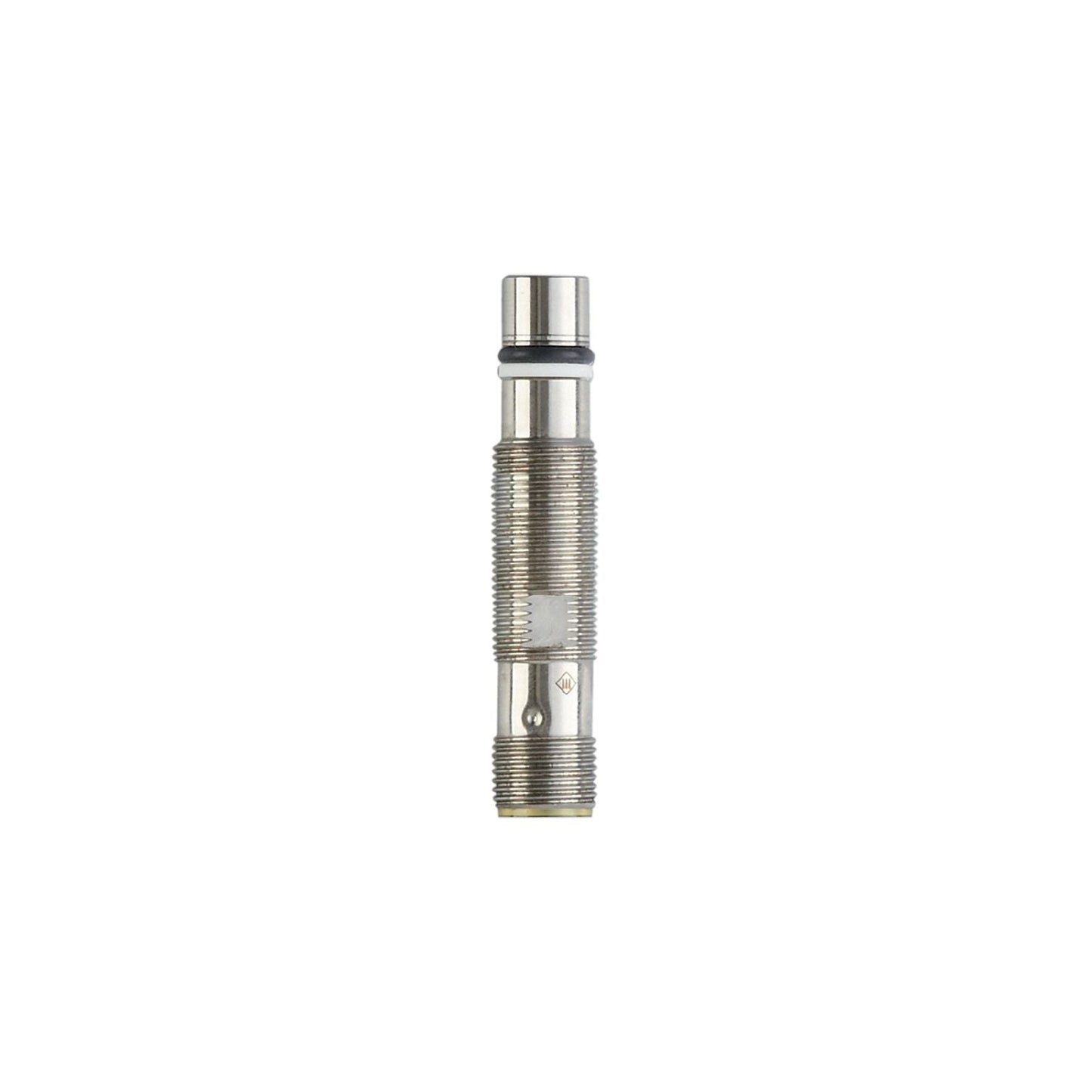

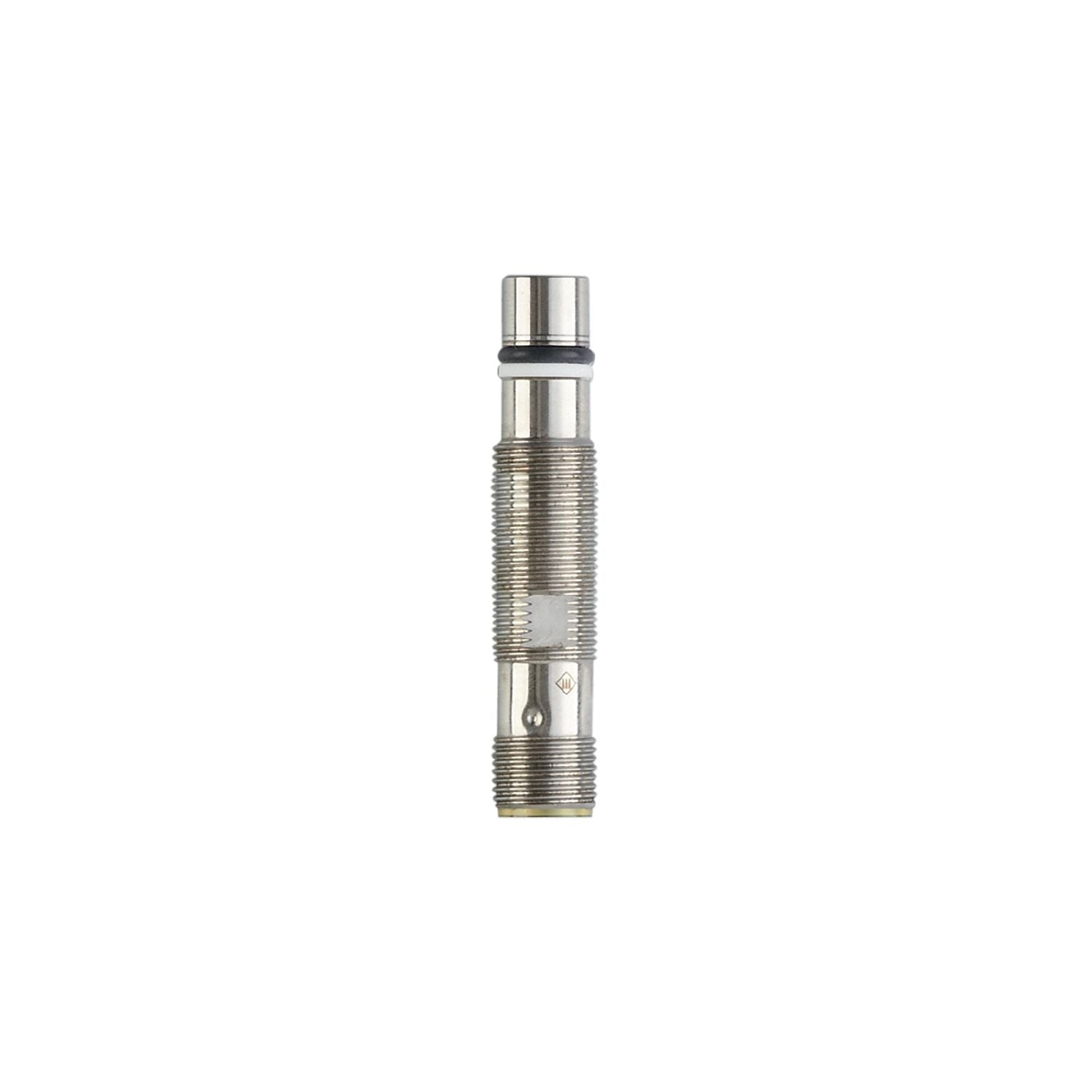

MFH217 - ifm threaded type Proximity Sensor

Name: MFH217 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: MFH217
Price: 643.00 AED
Availability: InStock

SKUMFH217Brandifm

AED 643.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MFH217 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 1.8mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open / normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 1.8
Output Function: normally open / normally closed
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...36 DC
IP Rating: IP65; IP68; IP69K
Mounting Type: Flush

Housing Material: housing: stainless steel; O-ring: FKM; supporting ring: PTFE
Maximum DC Voltage: 1.6
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 1000 Hz
Maximum Operating Temperature: 120°C
Standards Met: automotive area | ; noise emission and noise immunity: ECE R10 | E1 type approval; radiation according to ECE R10_ESA_1m | >10 db limits, depending on distance; noise immunity according to DIN ISO 11452-2 | 30 V/m; bulk current injection (BCI) acc. DIN ISO 11452-4 | 60 mA; conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) and ISO16750-2: 2012 (load dump) | ; pulse | 1 2a 2b 3a 3b 4; severity level | III III III III III III; failure criterion | C B C A A C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B; DIN ISO 11452-5 | 100 V/m
Series: MFH217
Short Circuit Overload Protection: yes
