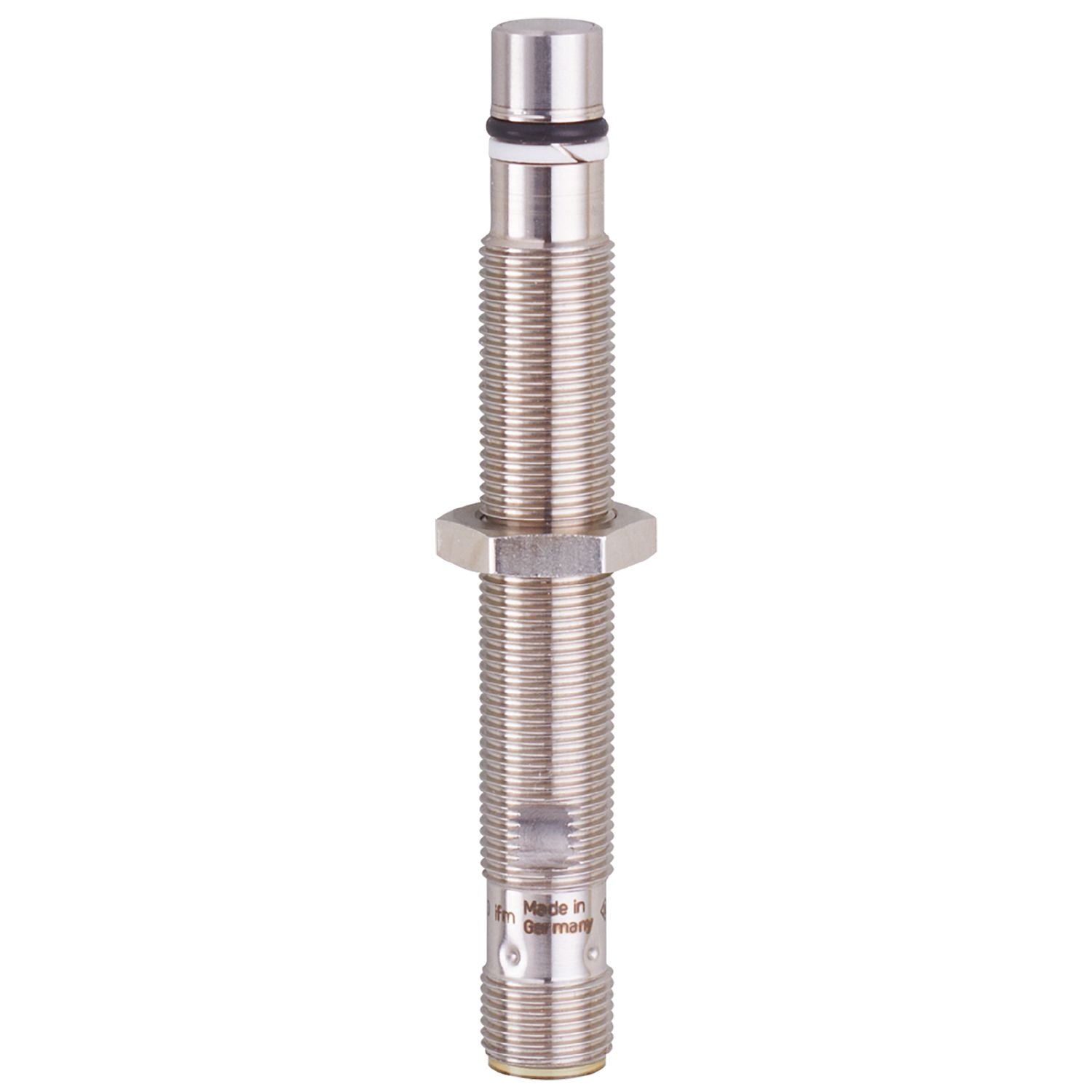

MFH201 - ifm threaded type Proximity Sensor

Name: MFH201 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: MFH201
Price: 592.00 AED
Availability: InStock

SKUMFH201Brandifm

AED 592.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MFH201 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 1.8mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: NPN
Detection Range: 1.8
Output Function: normally open
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...36 DC
IP Rating: IP65; IP68; IP69K
Mounting Type: Flush

Housing Material: housing: stainless steel; O-ring: FKM; supporting ring: PTFE
Maximum DC Voltage: 1.6
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 1000 Hz
Maximum Operating Temperature: 120°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B; DIN ISO 11452-5 | 100 V/m
Series: MFH201
Short Circuit Overload Protection: yes
