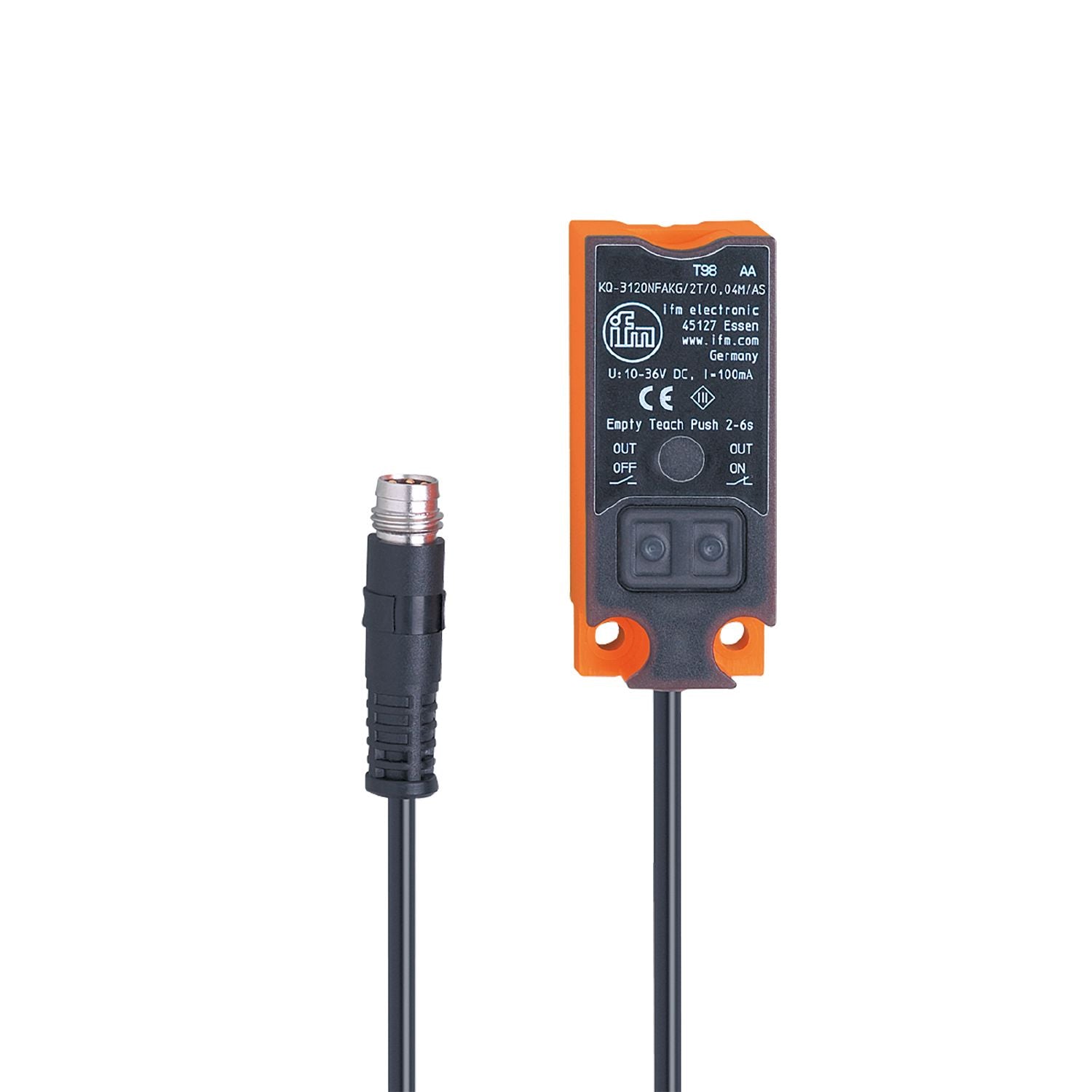

KQ6003 - ifm rectangular Proximity Sensor

Name: KQ6003 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: KQ6003
Price: 452.00 AED
Availability: InStock

SKUKQ6003Brandifm

AED 452.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KQ6003 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 12mm sensing range and a rugged PBT glass fibre reinforced housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP/NPN; (automatic load detection PNP/NPN) output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: rectangular
Output Type: PNP/NPN (Automatic Load Detection)
Detection Range: 12
Output Function: normally open / normally closed; (selectable)
Connection Type: 1 x M8; coding: A
Cable Length: 0.04 m
Supply Voltage: 10...30 DC
IP Rating: IP65; IP67; IP69K

Mounting Type: Non-Flush
Housing Material: housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 10 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: KQ6003
Short Circuit Overload Protection: yes
