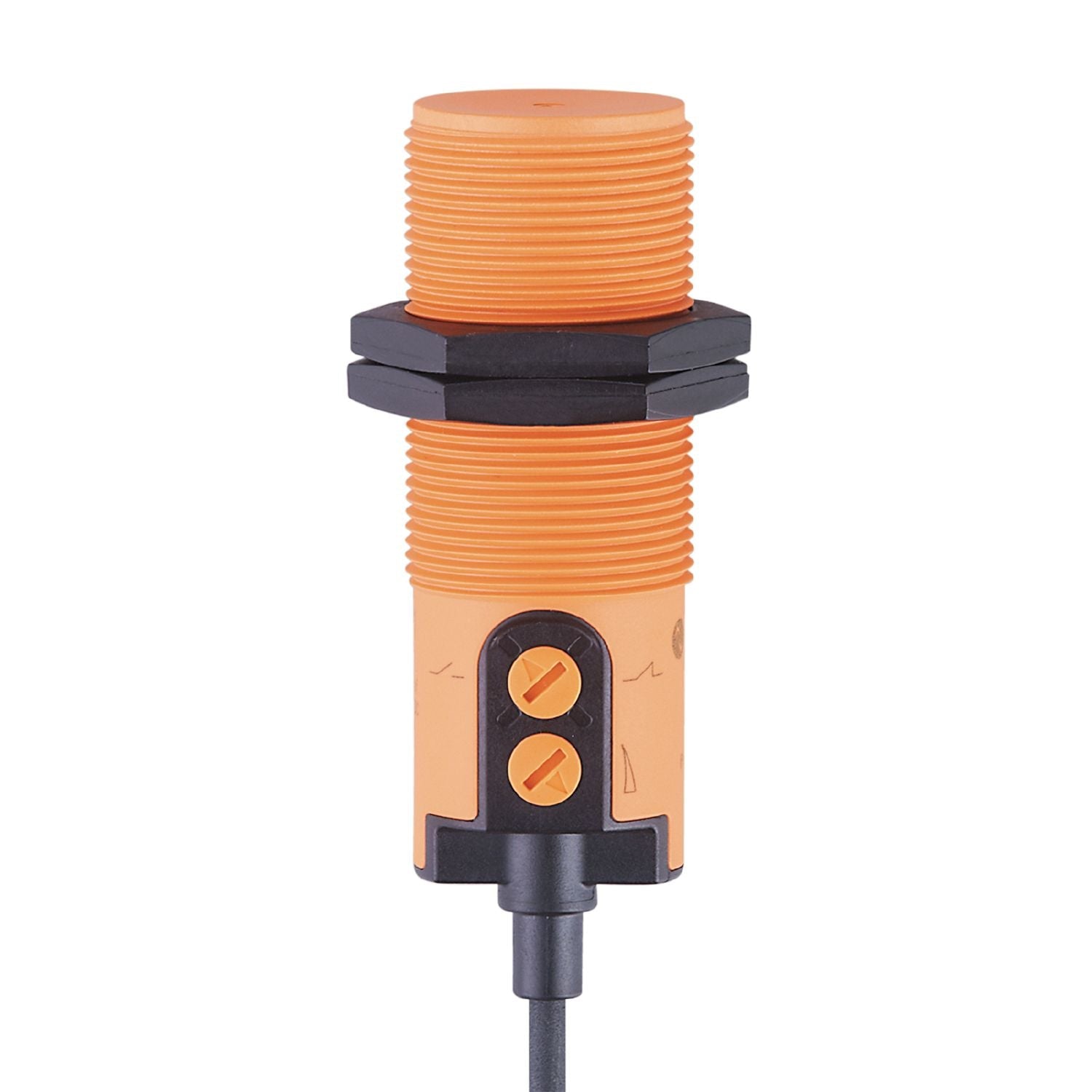

KI6001 - ifm threaded type Proximity Sensor

Name: KI6001 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KI6001
Price: 585.00 AED
Availability: InStock

SKUKI6001Brandifm

AED 585.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KI6001 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 0.5...40mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 0.5...40
Output Function: normally open / normally closed; (selectable)
Cable Length: 2 m
Supply Voltage: 10...30 DC
IP Rating: IP65; IP67; IP69K
Mounting Type: Non-Flush

Housing Material: PBT; PC; POM
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 30 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 | 30 kV AD / 4 kV CD; EN 61000-4-3 | 10 V/m; EN 61000-4-4 | 2 kV; EN 61000-4-6 | 10 V; EN 55011 | class B
Series: KI6001
Short Circuit Overload Protection: yes
