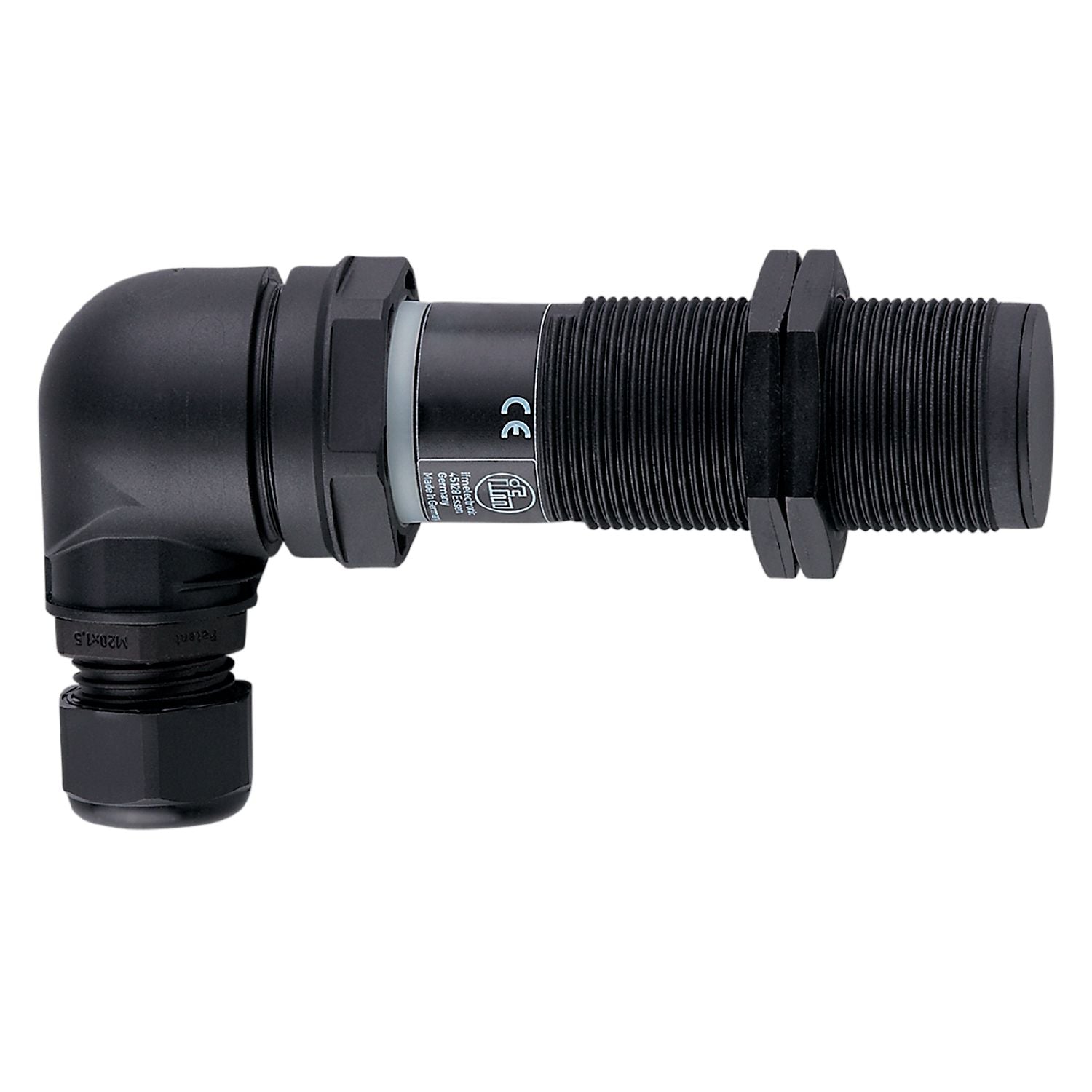

KI531A - ifm threaded type Proximity Sensor

Name: KI531A - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KI531A
Price: 783.00 AED
Availability: InStock

SKUKI531ABrandifm

AED 783.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KI531A is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 3...26mm sensing range and a rugged PA housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with complementary switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 3...26
Output Function: complementary
Supply Voltage: 10...30 DC
IP Rating: IP65; IP67
Mounting Type: Non-Flush

Housing Material: housing: PA; potentiometer: LCP; PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -20°C
Switching Current: 200
Switching Frequency: 10 Hz
Maximum Operating Temperature: 60°C
Standards Met: EN 61000-4-2 ESD | kV / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m (80...2000 MHz); EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V 0,15...80 MHz; EN 55011 | class B; IEC 60255-5 | 1 kV line to line, Ri: 500 Ohm
Series: KI531A
Short Circuit Overload Protection: yes
