KI5084 - ifm threaded type Proximity Sensor

Name: KI5084 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KI5084
Price: 745.00 AED
Availability: InStock

SKUKI5084Brandifm

AED 745.00

Sale Sold out

Shipping calculated at checkout.

Quantity

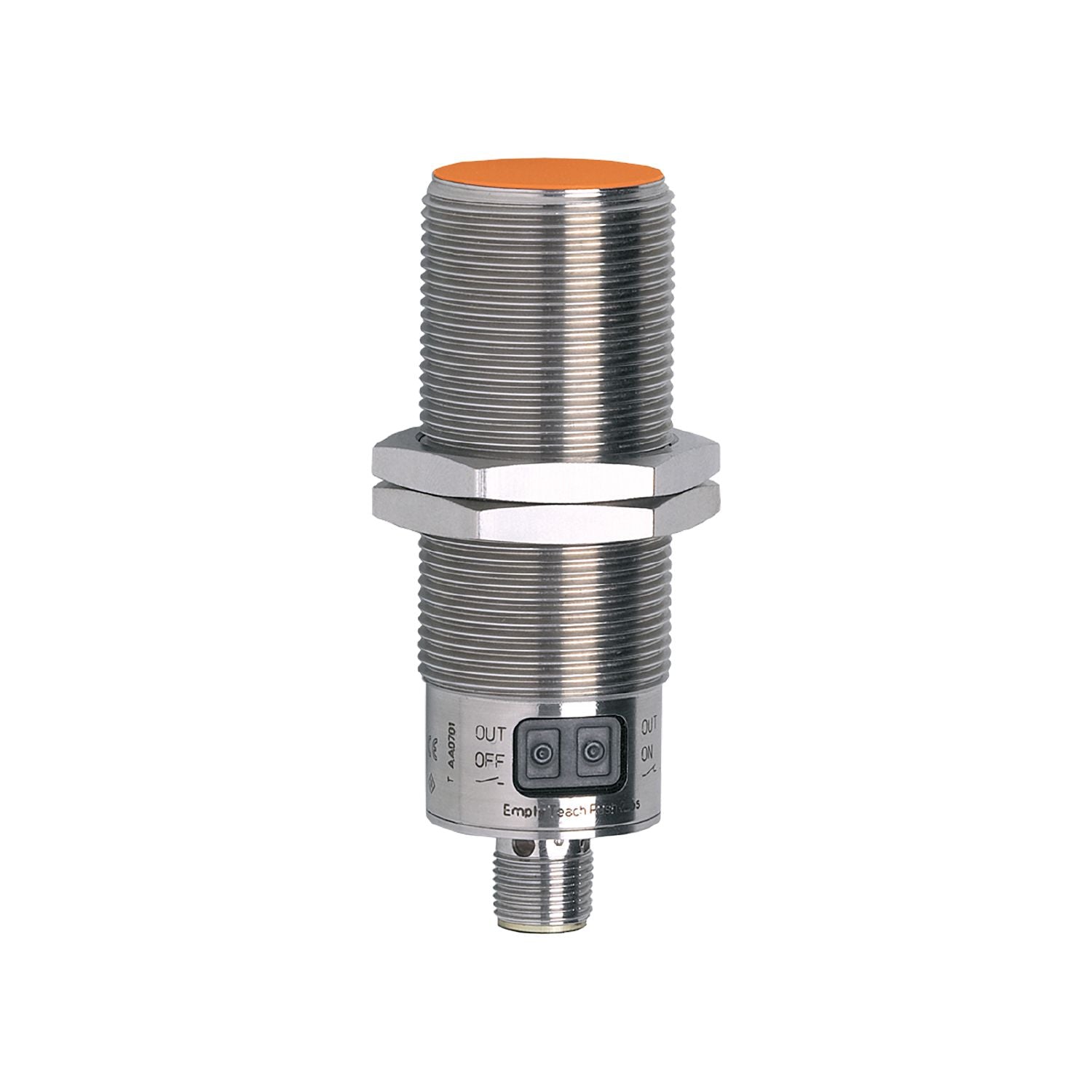

The KI5084 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC; (10...36 DC (60 °C)) supply voltage, and a PNP/NPN; (automatic load detection PNP/NPN) output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP/NPN (Automatic Load Detection)
Detection Range: 8
Output Function: normally open / normally closed; (selectable)
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...30 DC; (10...36 DC (60 °C))
IP Rating: IP65; IP67
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404); pushbuttons: TPE-U; cover: PBT; LED window: PEI
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 10 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: KI5084
Short Circuit Overload Protection: yes
