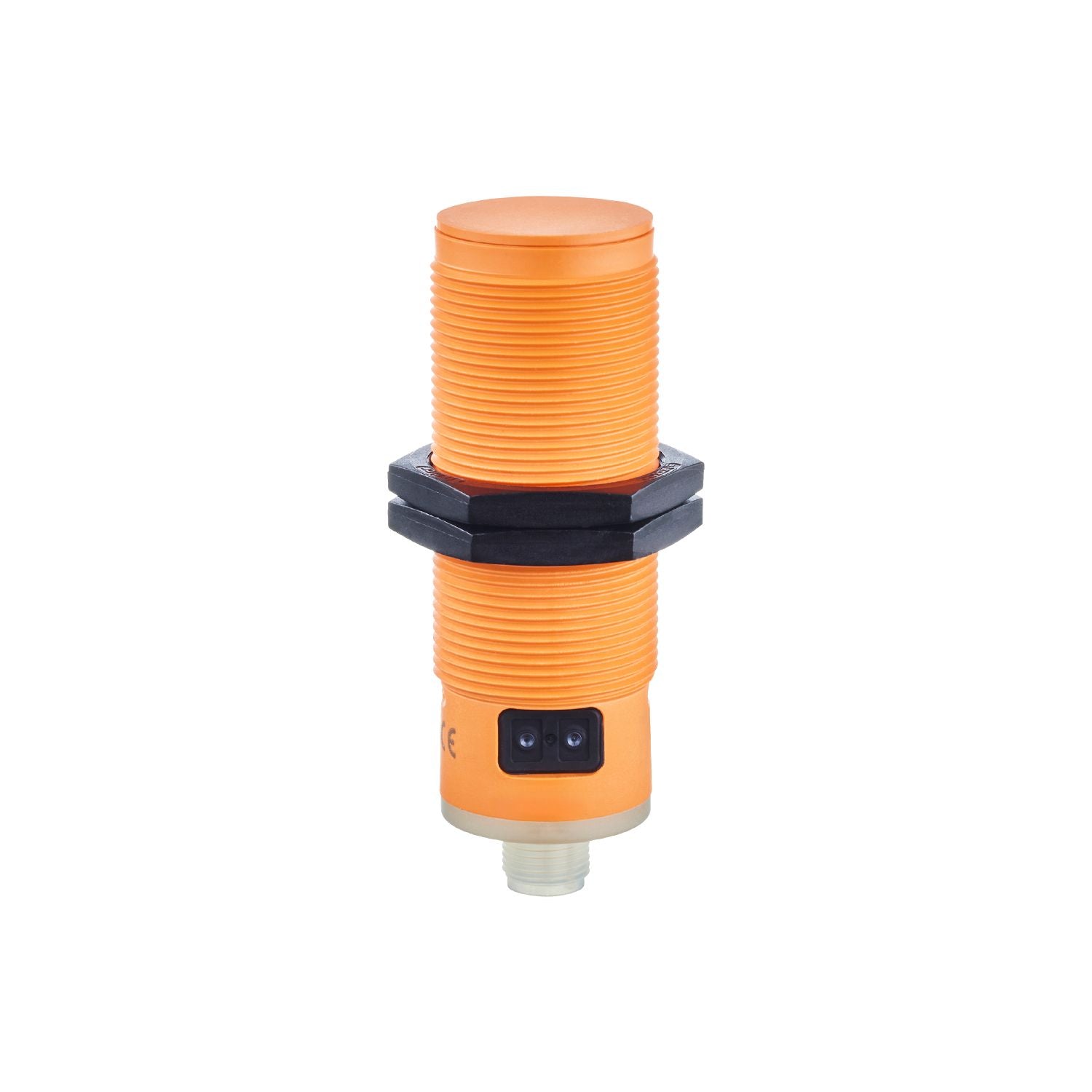

KI0064 - ifm threaded type Proximity Sensor

Name: KI0064 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KI0064
Price: 1197.00 AED
Availability: InStock

SKUKI0064Brandifm

AED 1,197.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KI0064 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 20mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 30...250 AC / 20...250 DC supply voltage, and normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Detection Range: 20
Output Function: normally open / normally closed; (selectable)
Connection Type: 1 x 1/2"; coding: C
Supply Voltage: 30...250 AC / 20...250 DC
IP Rating: IP65; IP67
Mounting Type: Non-Flush

Housing Material: housing: PBT; pushbuttons: TPE-U; LED window: PC
Maximum DC Voltage: 8
Minimum Operating Temperature: -25°C
Switching Current: 100; (150 (...40 °C))
Switching Frequency: 10 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 | 4 kV CD / 8 kV AD; EN 61000-4-3 | 3 V/m; EN 61000-4-4 | 2 kV; EN 61000-4-6 | 3 V; EN 55011 | class B
Series: KI0064
Short Circuit Overload Protection: no
