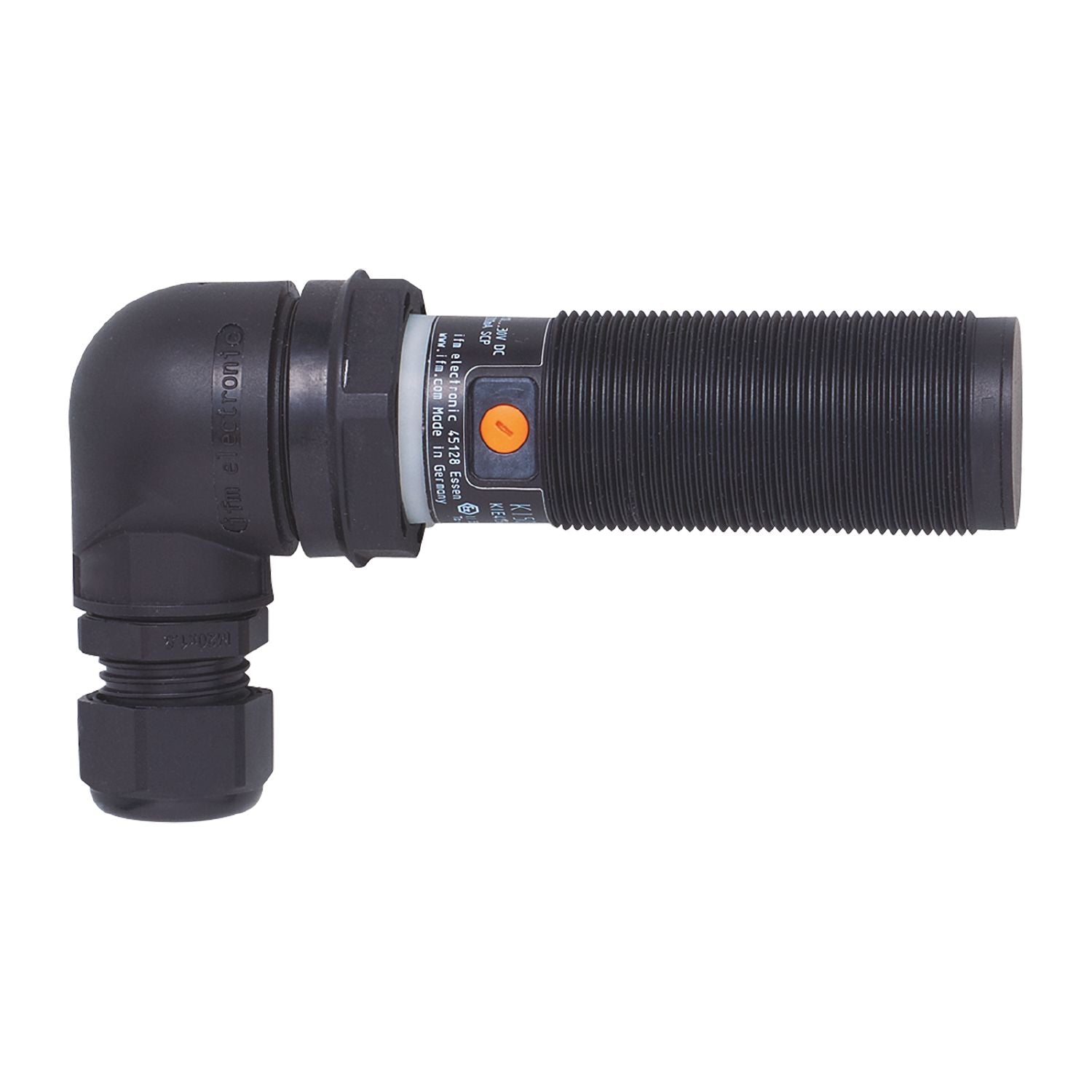

KI000A - ifm threaded type Proximity Sensor

Name: KI000A - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KI000A
Price: 1167.00 AED
Availability: InStock

SKUKI000ABrandifm

AED 1,167.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KI000A is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 15mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 30...250 AC / 20...250 DC supply voltage, and normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Detection Range: 15
Output Function: normally open / normally closed; (selectable)
Supply Voltage: 30...250 AC / 20...250 DC
IP Rating: IP65; IP67
Mounting Type: Non-Flush
Housing Material: PBT; PA

Maximum DC Voltage: 8
Minimum Operating Temperature: -20°C
Switching Current: 100; (150 (...40 °C))
Switching Frequency: 10 Hz
Maximum Operating Temperature: 60°C
Standards Met: EN 61000-4-2 ESD | kV / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 1 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: KI000A
Short Circuit Overload Protection: no
