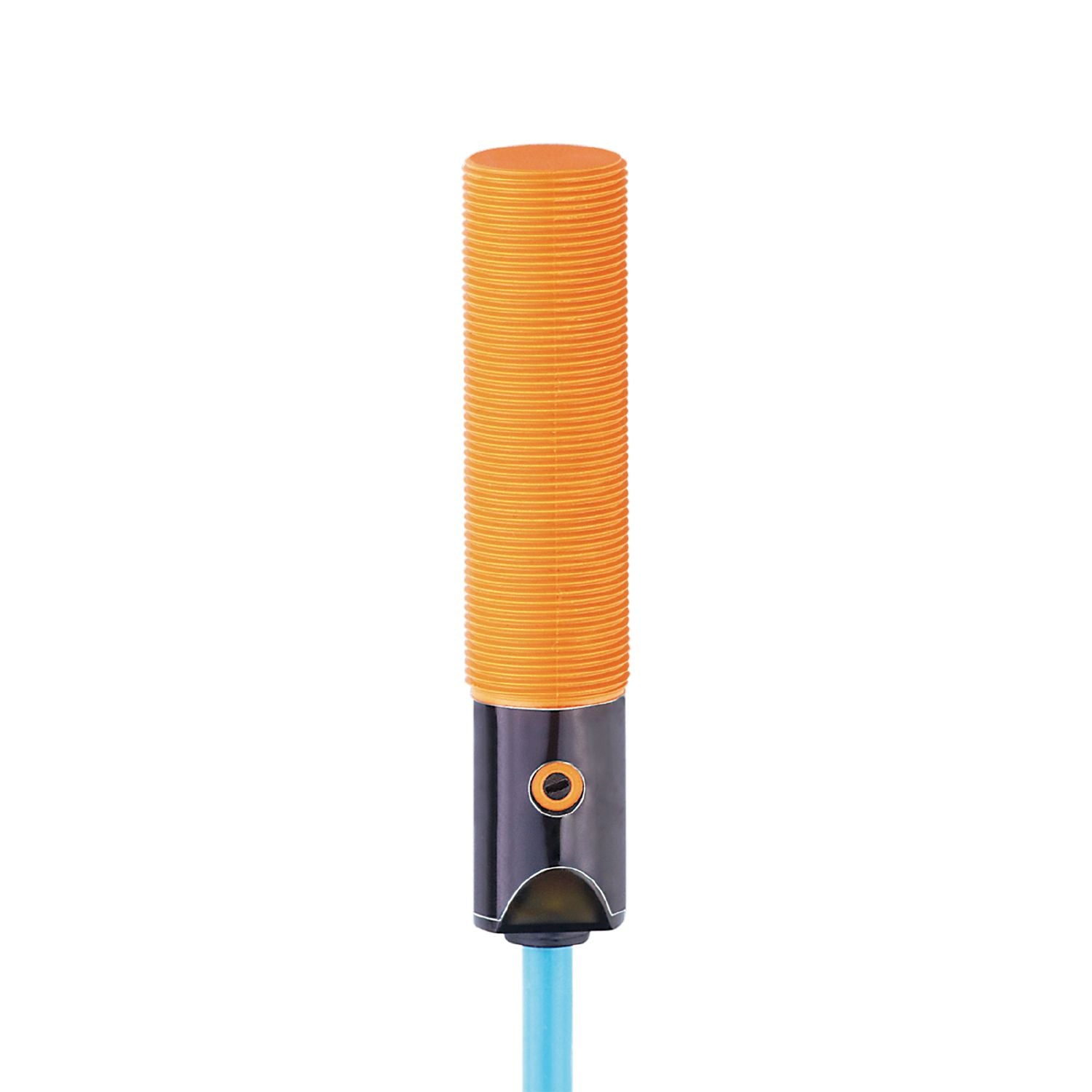

KG5079 - ifm threaded type Proximity Sensor

Name: KG5079 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KG5079
Price: 734.00 AED
Availability: InStock

SKUKG5079Brandifm

AED 734.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KG5079 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 7.5...15 supply voltage, and a NAMUR output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: NAMUR
Detection Range: 8
Output Function: normally closed
Cable Length: 6 m
Supply Voltage: 7.5...15

IP Rating: IP67
Mounting Type: Non-Flush
Housing Material: PBT
Minimum Operating Temperature: -20°C
Switching Frequency: 4 Hz
Maximum Operating Temperature: 60°C
Standards Met: EN 61000-4-2 ESD | - kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 emission | class B
Series: KG5079
