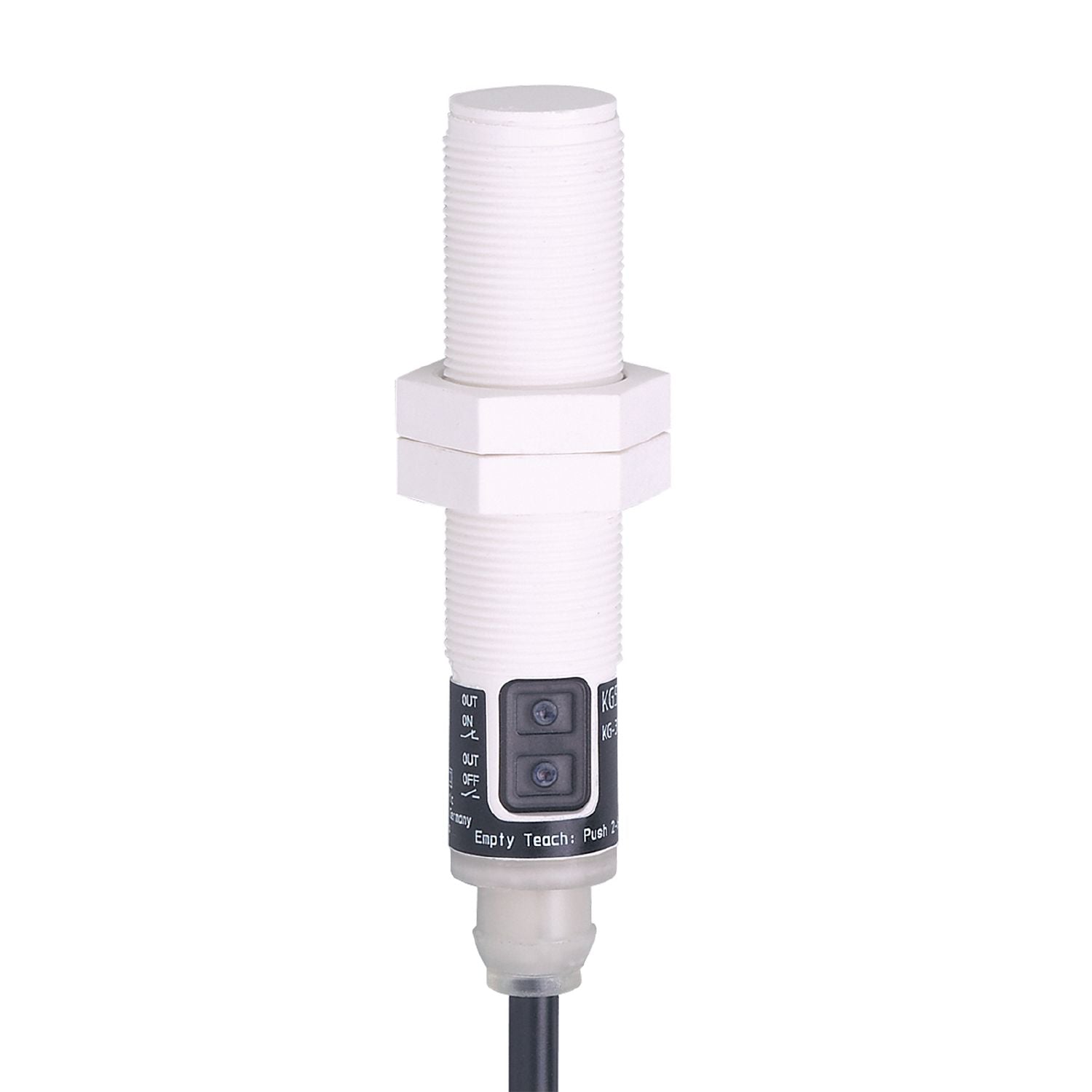

KG5069 - ifm threaded type Proximity Sensor

Name: KG5069 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KG5069
Price: 636.00 AED
Availability: InStock

SKUKG5069Brandifm

AED 636.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KG5069 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged PP white housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 8
Output Function: normally open / normally closed; (selectable)
Cable Length: 2 m
Supply Voltage: 10...36 DC
IP Rating: IP65; IP67
Mounting Type: Non-Flush

Housing Material: housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 10 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: KG5069
Short Circuit Overload Protection: yes
