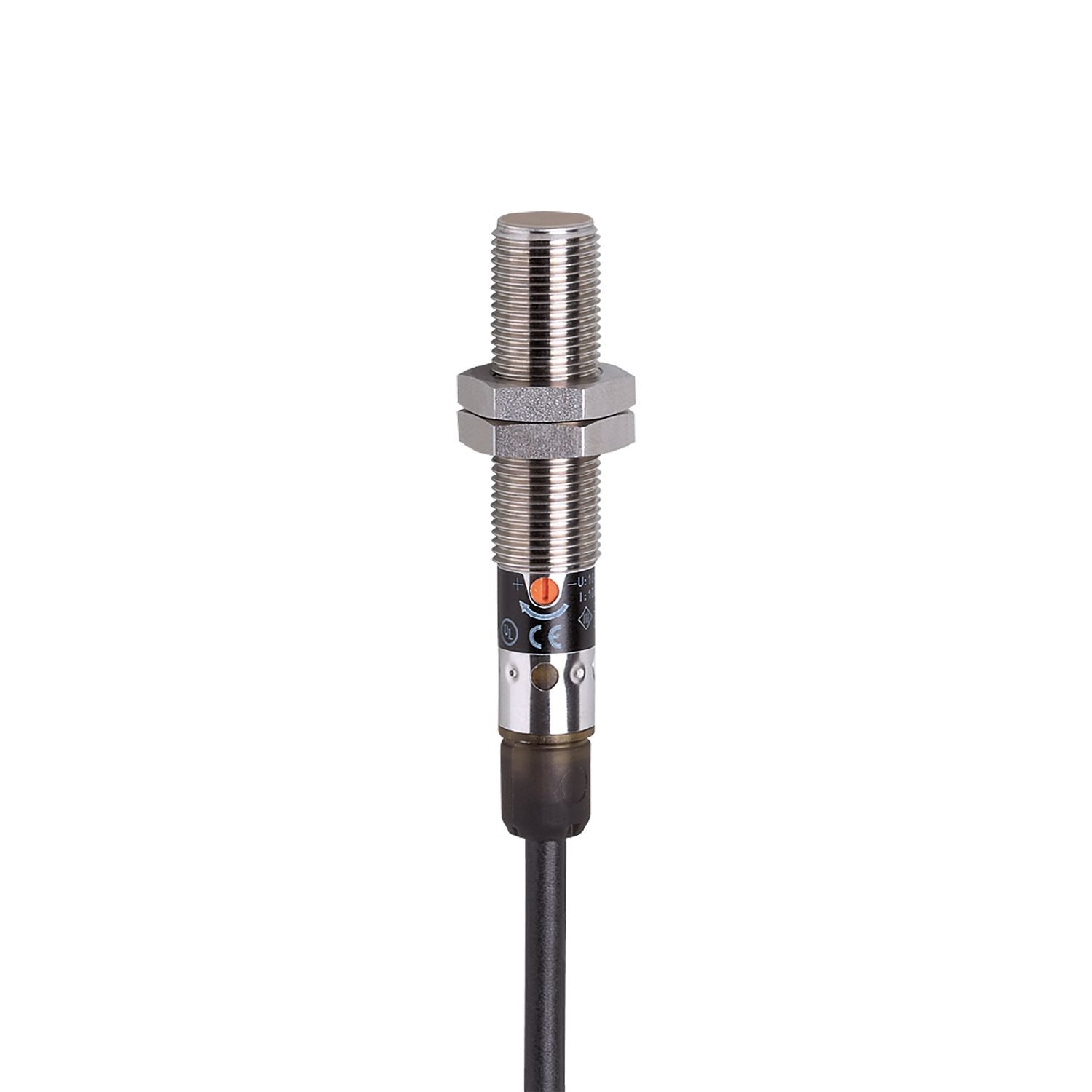

KF5014 - ifm threaded type Proximity Sensor

Name: KF5014 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: KF5014
Price: 640.00 AED
Availability: InStock

SKUKF5014Brandifm

AED 640.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The KF5014 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC; ("supply class 2" according to UL) supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 4
Output Function: normally open
Cable Length: 2 m
Supply Voltage: 10...36 DC; ("supply class 2" according to UL)
IP Rating: IP65
Mounting Type: Flush

Housing Material: housing: stainless steel; cover: PEEK
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 50 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 | 4 kV CD / 8 kV AD; EN 61000-4-3 | 3 V/m; EN 61000-4-4 | 2 kV; EN 61000-4-6 | 3 V
Series: KF5014
Short Circuit Overload Protection: yes
