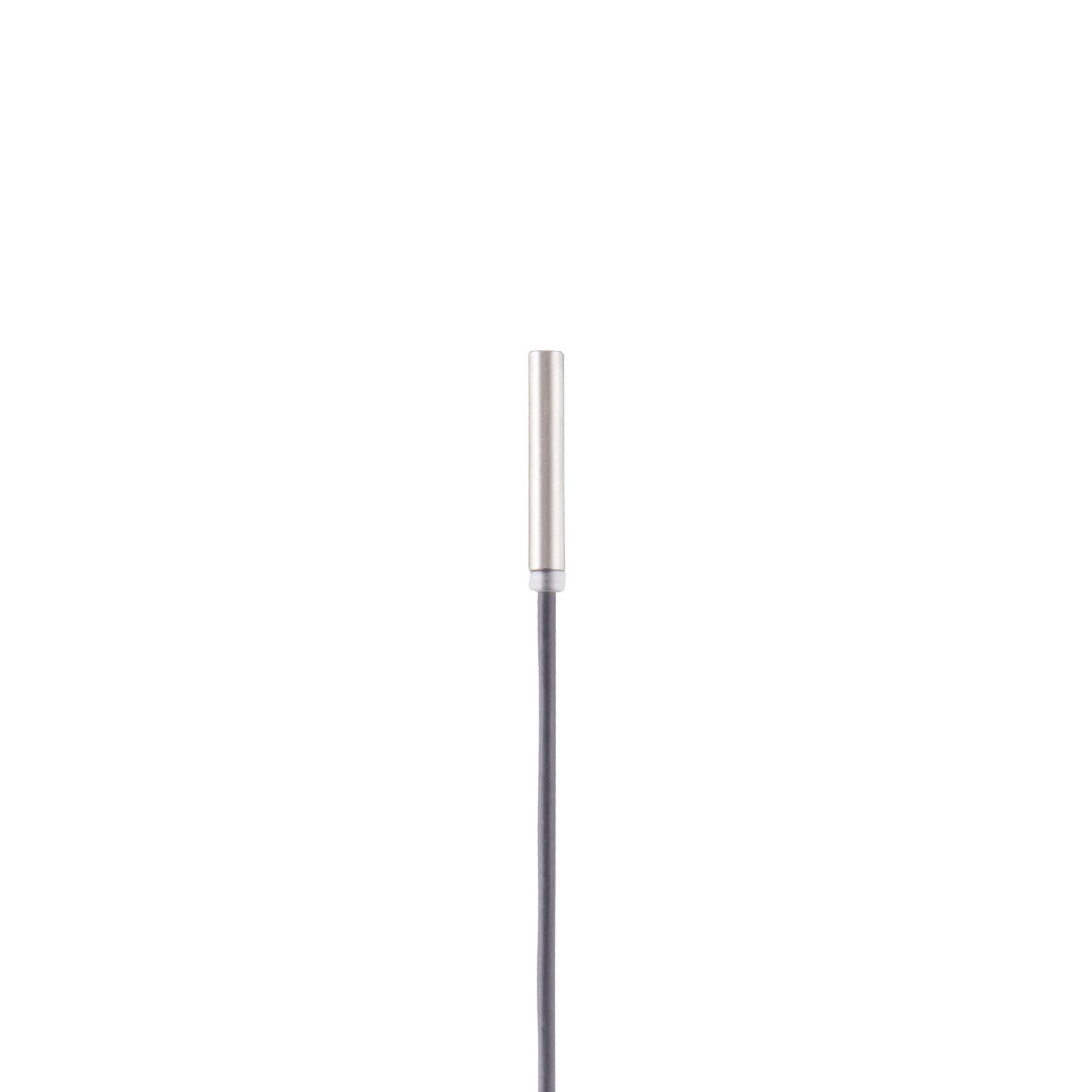

IZ5032 - ifm cylindrical Proximity Sensor

Name: IZ5032 - ifm cylindrical Proximity Sensor
Brand: ifm
SKU: IZ5032
Price: 497.00 AED
Availability: InStock

SKUIZ5032Brandifm

AED 497.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IZ5032 is a highly reliable cylindrical proximity sensor engineered by ifm for precision industrial automation. Featuring a 0.8mm sensing range and a rugged stainless steel (303/1.4305) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: cylindrical
Output Type: NPN
Detection Range: 0.8
Output Function: normally open
Cable Length: 2 m
Supply Voltage: 10...36 DC
IP Rating: IP65; IP67
Mounting Type: Flush

Housing Material: stainless steel (303/1.4305); sensing face: POM
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IZ5032
Short Circuit Overload Protection: yes
