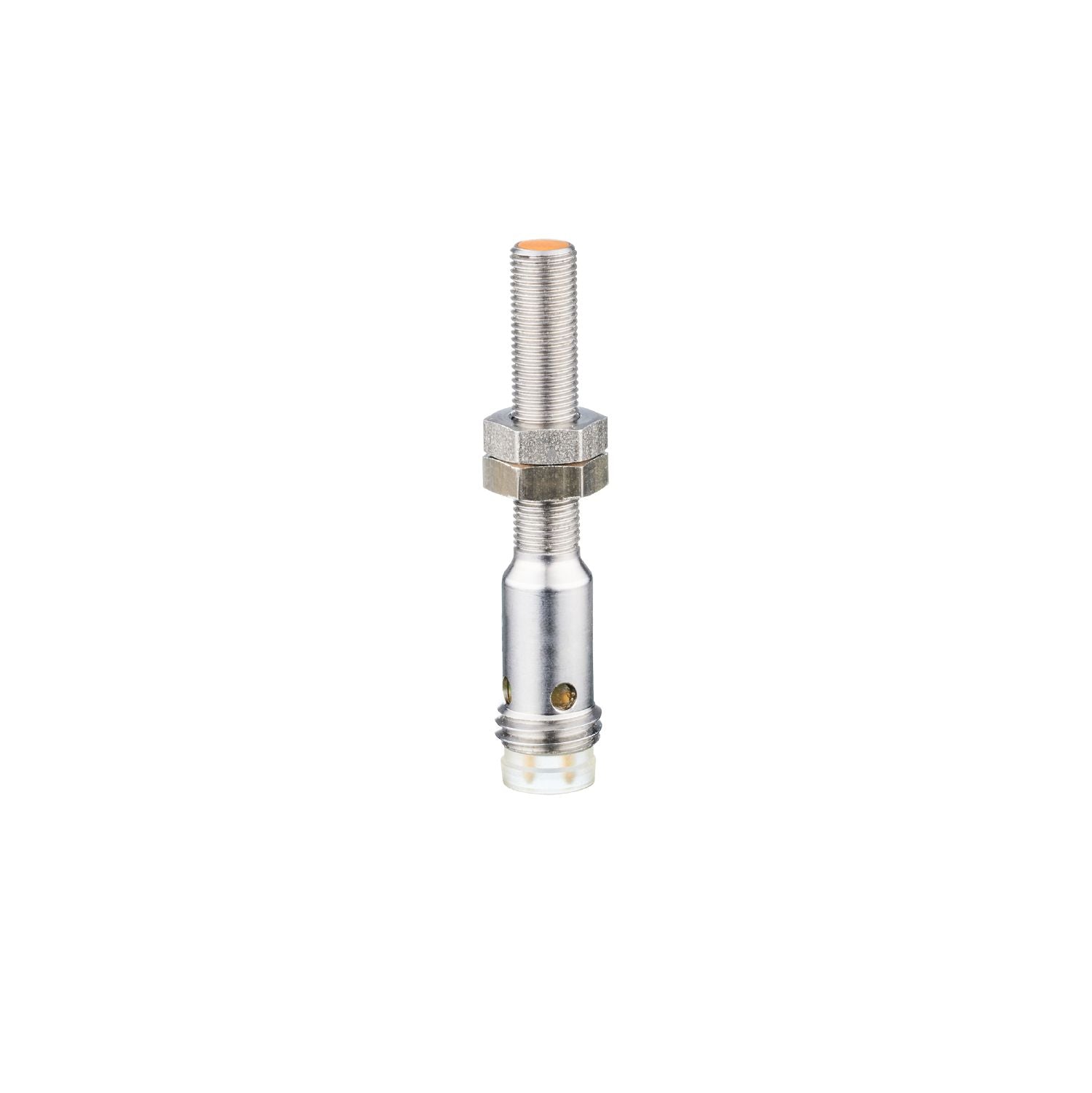

IY5036 - ifm threaded type Proximity Sensor

Name: IY5036 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IY5036
Price: 445.00 AED
Availability: InStock

SKUIY5036Brandifm

AED 445.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IY5036 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 0.8mm sensing range and a rugged stainless steel (303/1.4305) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M5 x 0.5
Body Style: threaded type
Output Type: PNP
Detection Range: 0.8
Output Function: normally open
Connection Type: 1 x M8; coding: A
Supply Voltage: 10...36 DC
IP Rating: IP65
Mounting Type: Flush

Housing Material: housing: stainless steel (303/1.4305); LED window: PA; sensing face: POM
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IY5036
Short Circuit Overload Protection: yes
