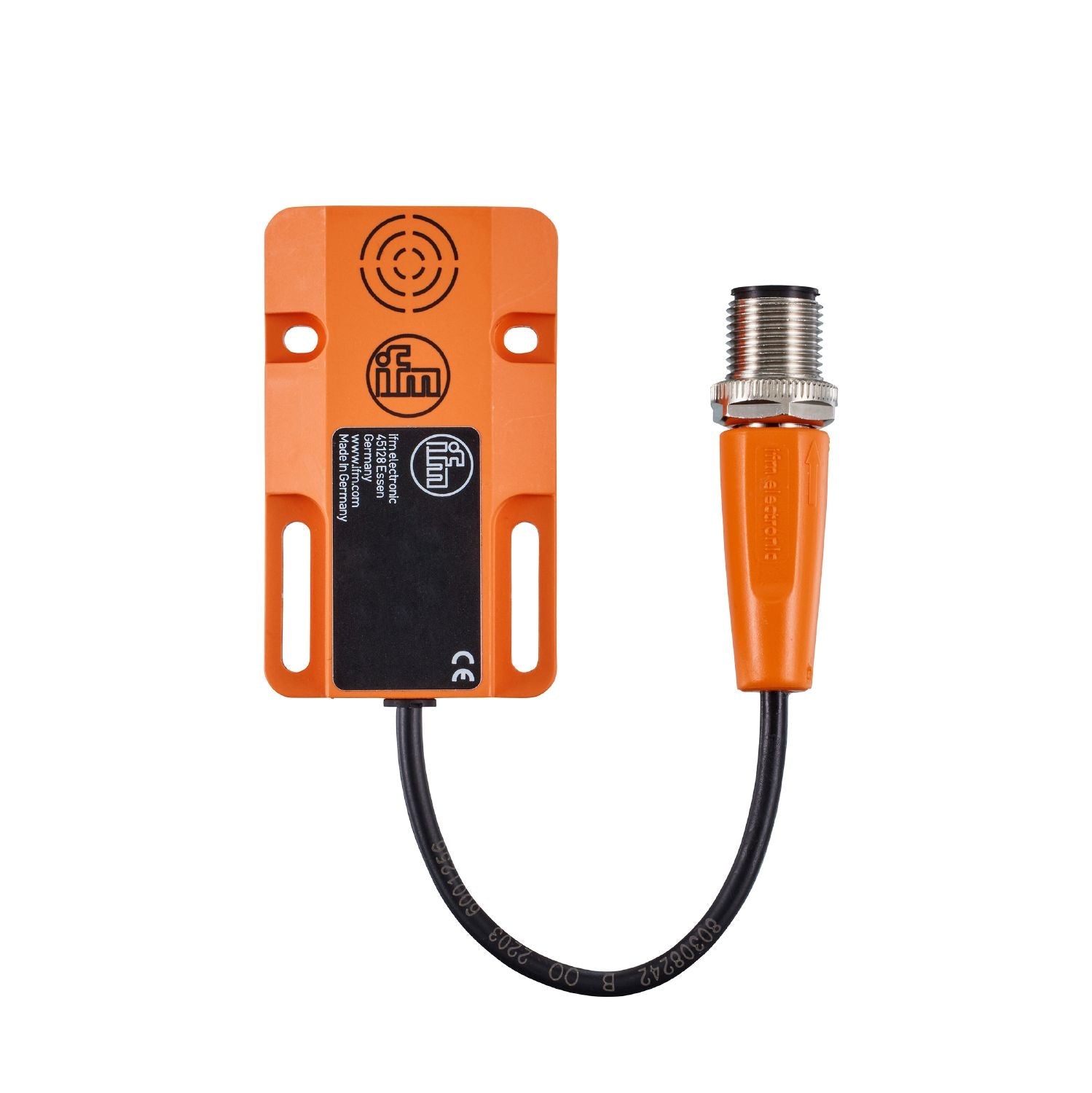

IW5084 - ifm rectangular Proximity Sensor

Name: IW5084 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IW5084
Price: 399.00 AED
Availability: InStock

SKUIW5084Brandifm

AED 399.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IW5084 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: PNP
Detection Range: 8
Output Function: normally open
Connection Type: 1 x M12; coding: A
Cable Length: 0.2 m
Supply Voltage: 10...36 DC
IP Rating: IP67

Mounting Type: Non-Flush
Housing Material: PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 300 Hz
Maximum Operating Temperature: 80°C
Standards Met: automotive area | ; noise emission and noise immunity: ECE R10 | E1 type approval; radiation according to ECE R10_ESA_1m | >10 db limits, depending on distance; noise immunity according to DIN ISO 11452-2 | 30 V/m; bulk current injection (BCI) acc. DIN ISO 11452-4 | 60 mA; conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) | ; pulse | 1 2a 2b 3a 3b 4; severity level | III III III III III III; failure criterion | C B C A A C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IW5084
Short Circuit Overload Protection: yes
