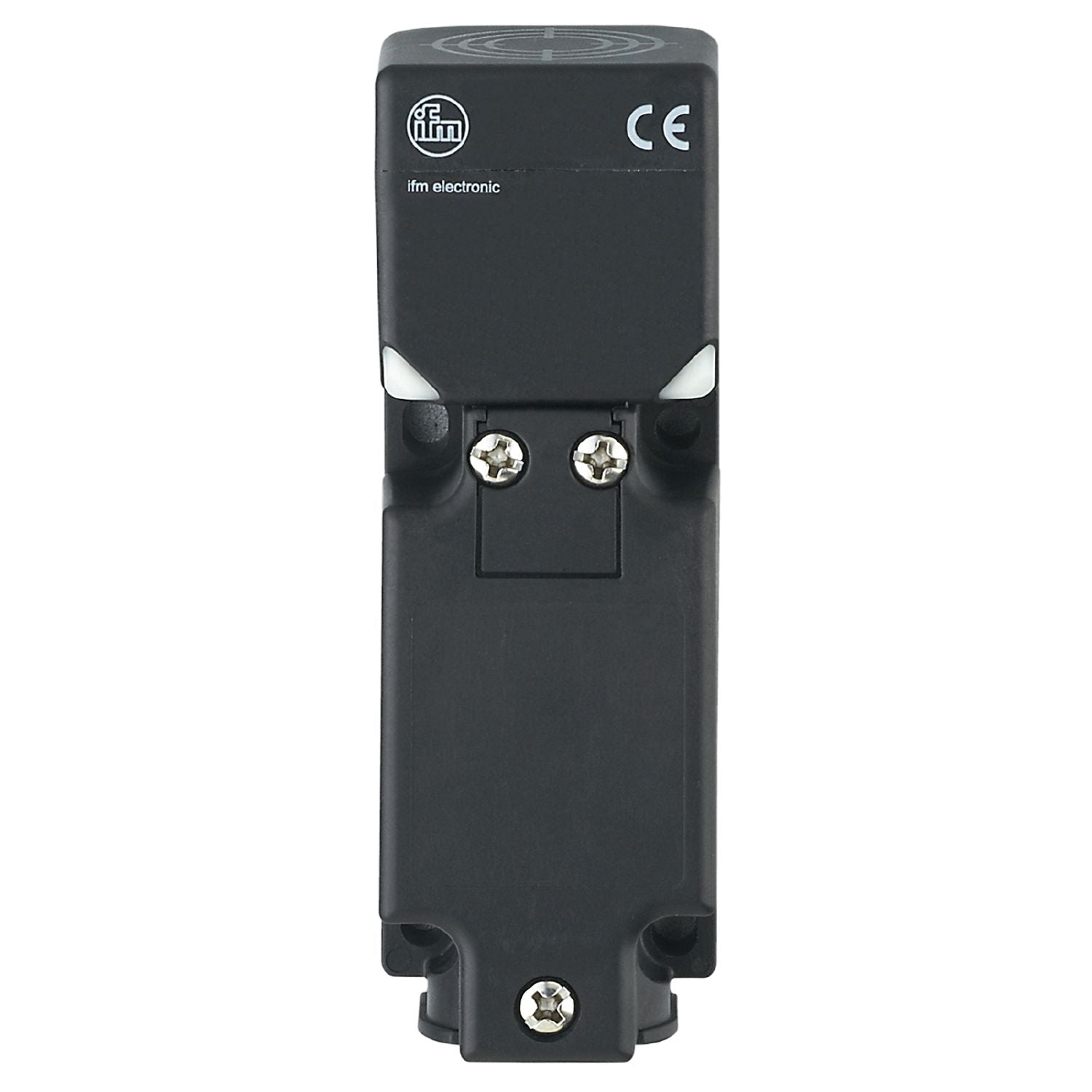

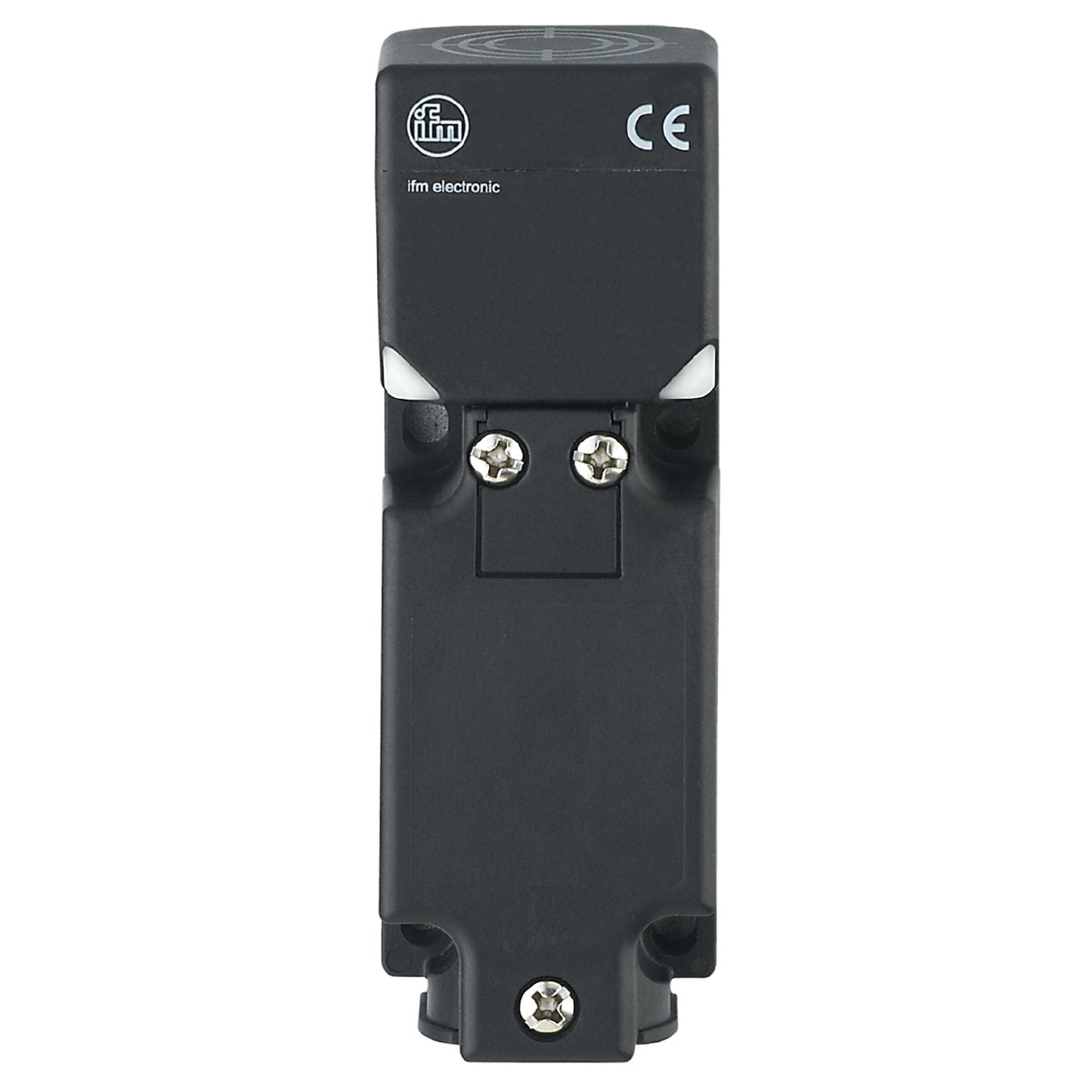

IV5004 - ifm rectangular Proximity Sensor

Name: IV5004 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IV5004
Price: 484.00 AED
Availability: InStock

SKUIV5004Brandifm

AED 484.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IV5004 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 20mm sensing range and a rugged PA 6.6 housing, this sensor is built to withstand harsh environments with an IP68 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with complementary switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP
Detection Range: 20
Output Function: complementary
Supply Voltage: 10...30 DC
IP Rating: IP68; IP69K
Mounting Type: Flush
Housing Material: PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (303/1.4305)

Maximum DC Voltage: 2
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 400 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | 8 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 15 V; EN 55011 | class B
Series: IV5004
Short Circuit Overload Protection: yes
