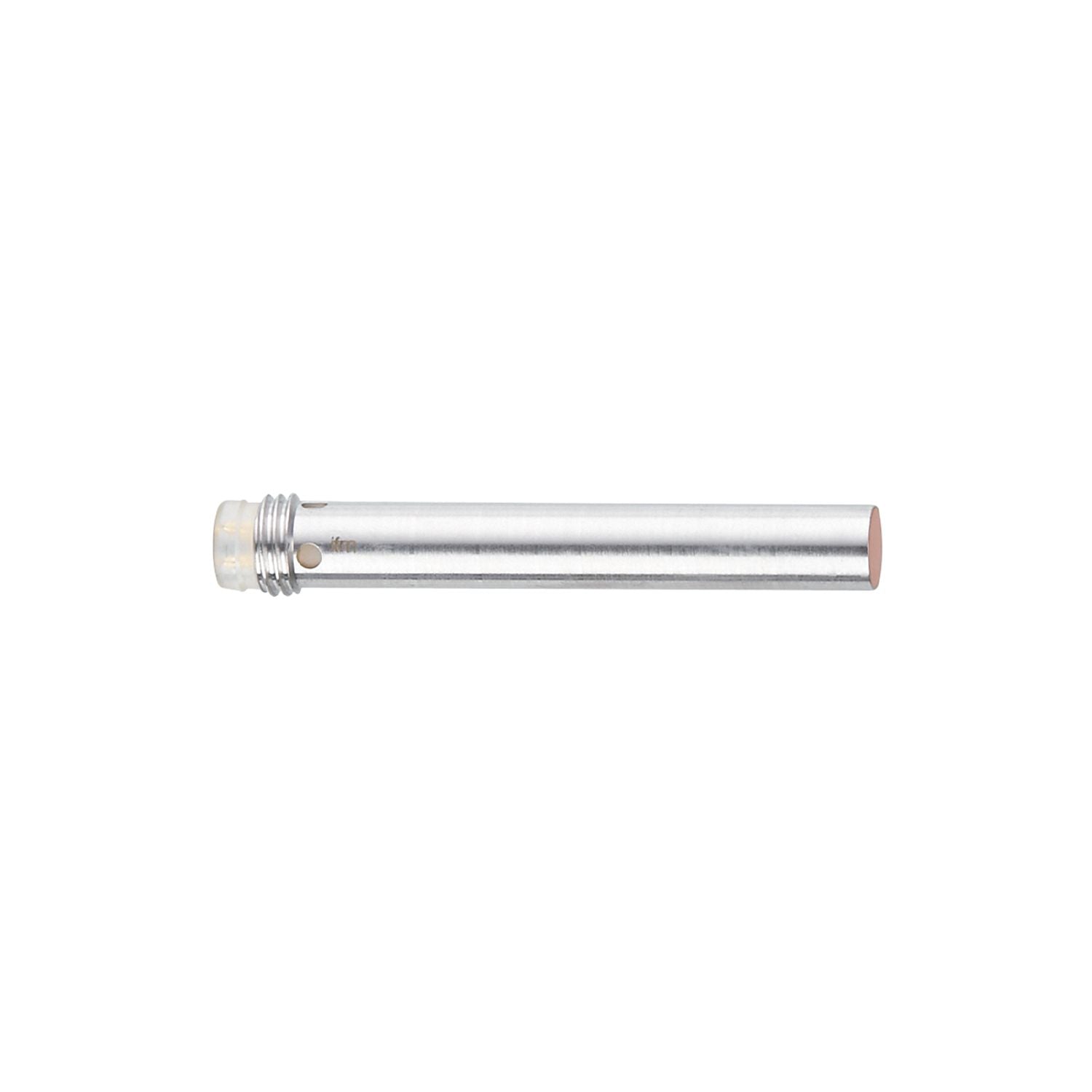

IT5021 - ifm cylindrical Proximity Sensor

Name: IT5021 - ifm cylindrical Proximity Sensor
Brand: ifm
SKU: IT5021
Price: 379.00 AED
Availability: InStock

SKUIT5021Brandifm

AED 379.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IT5021 is a highly reliable cylindrical proximity sensor engineered by ifm for precision industrial automation. Featuring a 1mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: cylindrical
Output Type: PNP
Detection Range: 1
Output Function: normally open
Connection Type: 1 x M8; coding: A
Supply Voltage: 10...30 DC
IP Rating: IP65; (with ifm socket duly screwed on: IP67)
Mounting Type: Flush

Housing Material: brass white bronze coated; sensing face: PBT orange; LED window: PPSU
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 emission | class B
Series: IT5021
Short Circuit Overload Protection: yes
