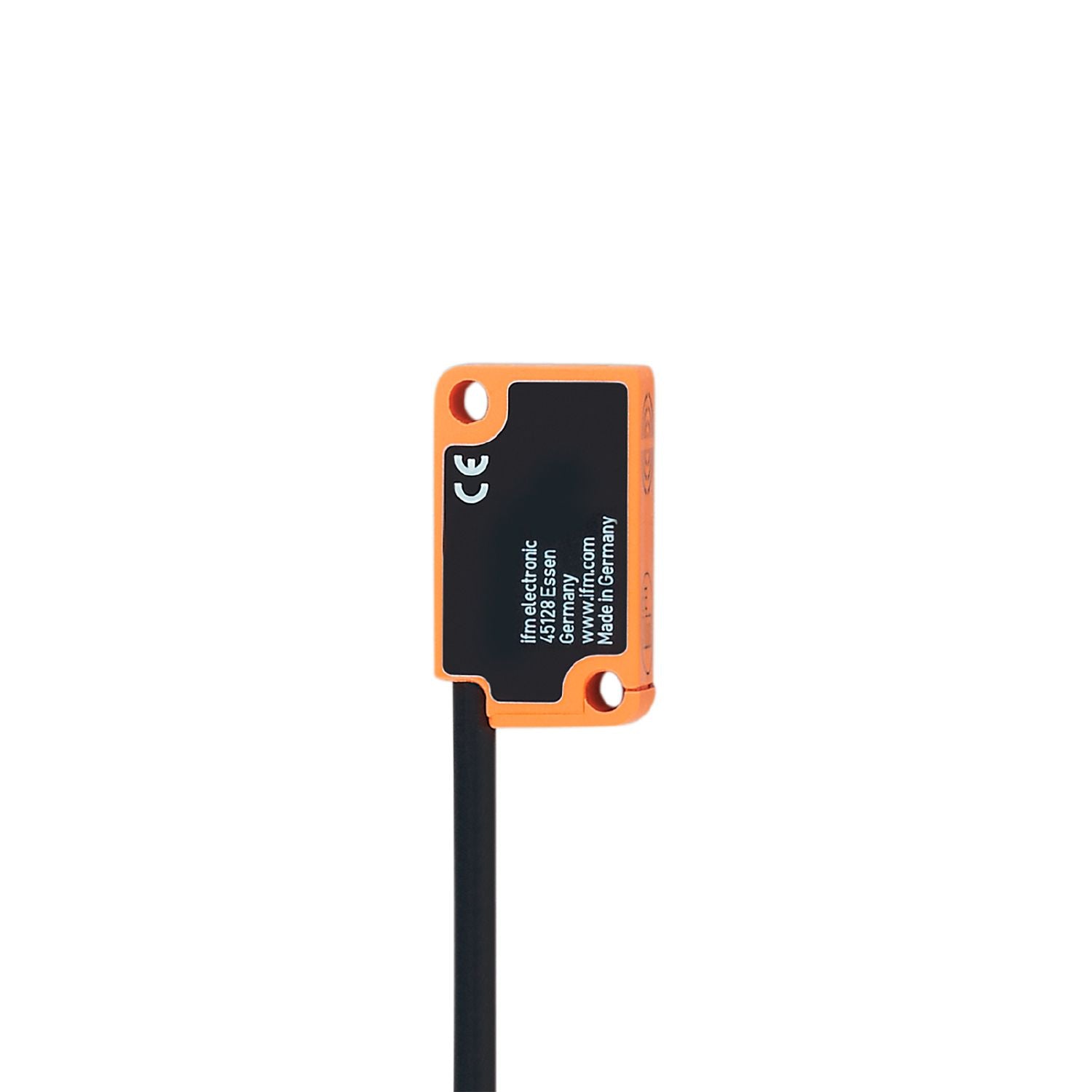

IS5101 - ifm rectangular Proximity Sensor

Name: IS5101 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IS5101
Price: 365.00 AED
Availability: InStock

SKUIS5101Brandifm

AED 365.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IS5101 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 2mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP
Detection Range: 2
Output Function: normally open
Cable Length: 0.145 m
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 800 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IS5101
Short Circuit Overload Protection: yes
