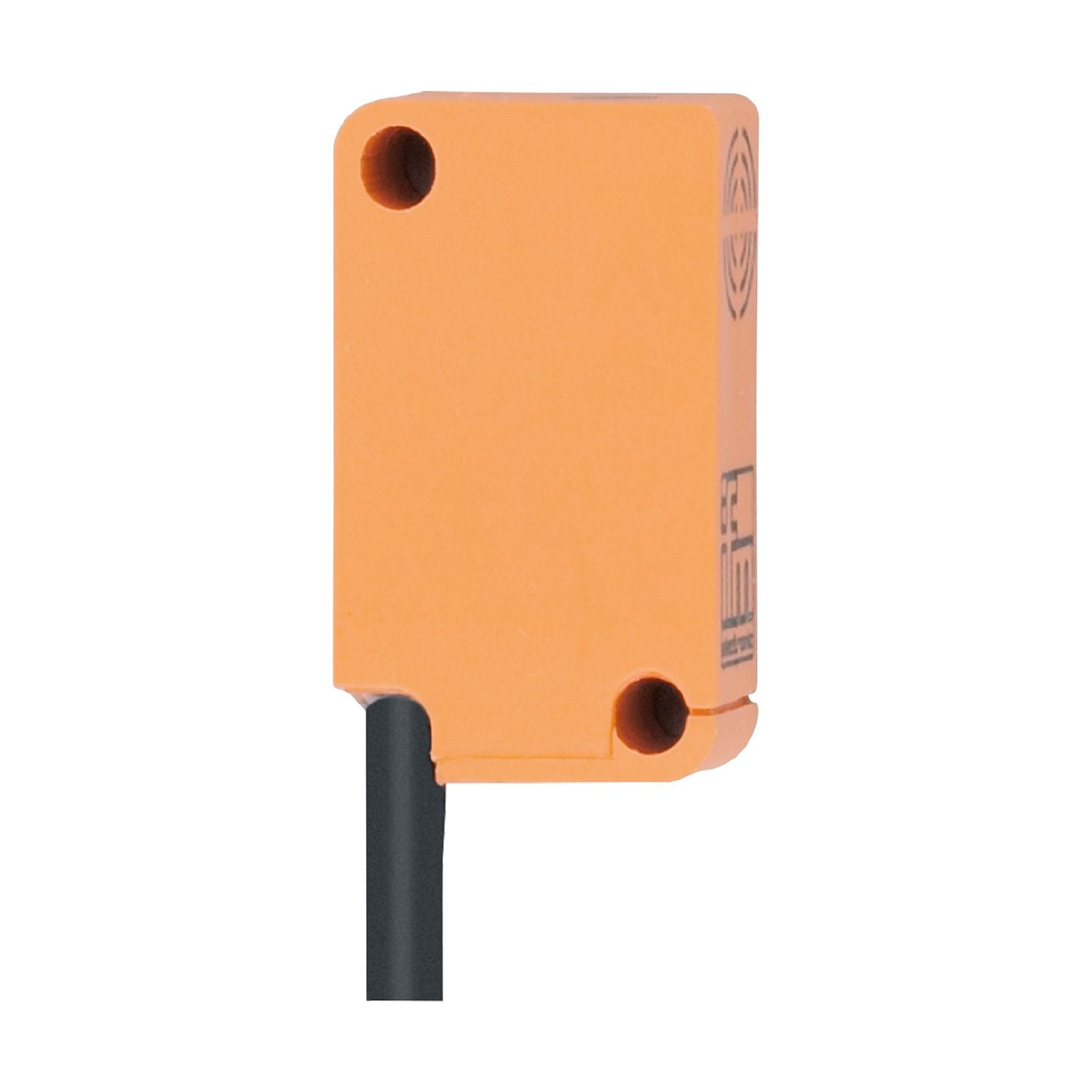

IS5077 - ifm rectangular Proximity Sensor

Name: IS5077 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IS5077
Price: 364.00 AED
Availability: InStock

SKUIS5077Brandifm

AED 364.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IS5077 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 3mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 5...36 DC supply voltage, and a PNP/NPN output with normally open / normally closed; (parameterisable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP/NPN
Detection Range: 3
Output Function: normally open / normally closed; (parameterisable)
Cable Length: 0.3 m
Supply Voltage: 5...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: PBT
Maximum DC Voltage: 4.6
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 500 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IS5077
Short Circuit Overload Protection: yes
