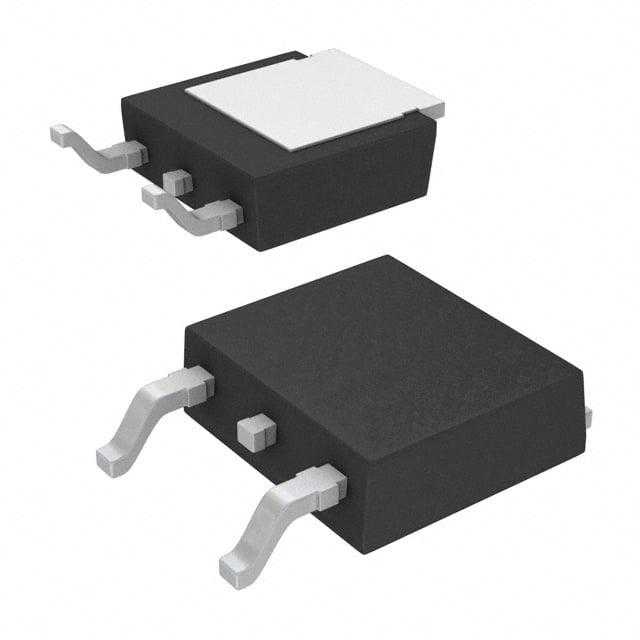

Infineon MOSFETs IPD60R600PFD7SAUMA1

Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is IPD60R600PFD7SAUMA1. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4.5v @ 80 µa. The product has -40 °c ~ 150 °c (tj) operating temperature range. Moreover, the product comes in to-252-3, dpak (2 leads + tab), sc-63. It has a maximum Rds On and voltage of 600mohm @ 1.7a, 10v. The maximum gate charge and given voltages include 8.5 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tape & reel (tr) package . The product has a 600 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 3 (168 hours). The product carries maximum power dissipation 31w (tc). The products input capacitance at maximum includes 344 pf @ 400 v. The product is available in surface mount configuration. The product coolmos pfd7, is a highly preferred choice for users. pg-to252-3 is the supplier device package value. The continuous current drain at 25 °C is 6a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ipd60r, a base product number of the product. The product is designated with the ear99 code number.
