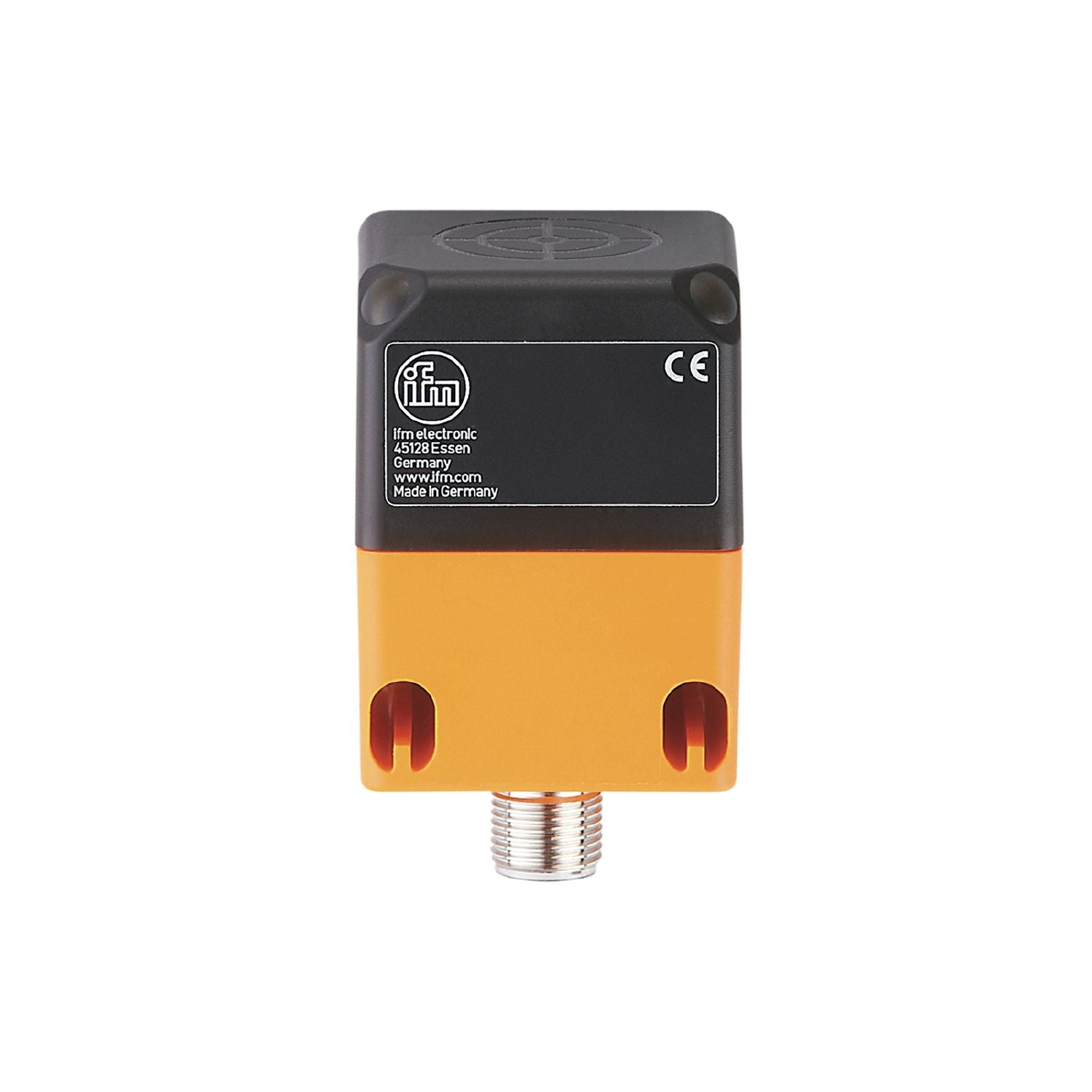

IM5143 - ifm rectangular Proximity Sensor

Name: IM5143 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IM5143
Price: 606.00 AED
Availability: InStock

SKUIM5143Brandifm

AED 606.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IM5143 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a rugged PA housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 15...30 DC supply voltage, and a PNP/NPN; (parameterisable) output with normally open / normally closed; (parameterisable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: PNP/NPN (Parameterisable)
Output Function: normally open / normally closed; (parameterisable)
Connection Type: 1 x M12; coding: A
Supply Voltage: 15...30 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: PA; stainless steel (316L/1.4404)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 100 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IM5143
Short Circuit Overload Protection: yes
