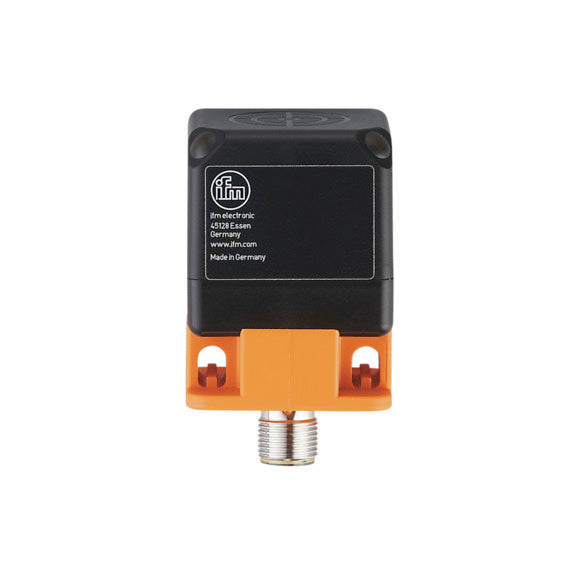

IFM IM5135 - Inductive Sensor, 40 mm Range, Factor 1

Name: IFM IM5135 - Inductive Sensor, 40 mm Range, Factor 1
Brand: IFM
SKU: IM5135
Price: 367.65 AED
Availability: InStock

SKUIM5135BrandIFM

AED 367.65

~~AED 408.49~~ AED 367.65

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IM5135 Inductive Sensor — factor-1 block sensor 40x40, 40 mm range, complementary NO/NC, magnetic-field immune. inductive proximity sensor, 40x40 mm block, 40 mm range, correction factor K=1 (equal range on all metals), complementary PNP NO/NC, magnetic-field immune, 10...36 V DC, IP69K.

MPN / SKU: IM5135

Also known as: IFM IM5135 proximity sensor / proximity switch.

IM5135 Applications

The IFM IM5135 factor-1 inductive sensor gives the same 40 mm range on steel, stainless, brass, aluminium and copper, ideal for conveying and welding areas thanks to magnetic-field immunity and five sensing-face positions.

IM5135 Specifications

Brand	IFM	Product Type	Inductive sensor (factor 1)
Product type code	IMC4040-CPKG/K1/US-100-DPA	Housing	40 x 40 x 54 mm block
Sensing range	40 mm (K=1)	Output	Complementary PNP NO/NC
Operating voltage	10...36 V DC	Magnetic-field immune	Yes (300 mT)
Protection	IP 67; IP 69K	Weight	134 g

IM5135 Datasheet & Manual

Download IFM IM5135 Datasheet & Manual (PDF)

IM5135 -- Frequently Asked Questions (FAQ)

What is the IFM IM5135?

IFM IM5135 is a Inductive Sensor -- factor-1 block sensor 40x40, 40 mm range, complementary NO/NC, magnetic-field immune.

What is the IFM IM5135 used for?

What are the key specifications of the IFM IM5135?

IFM IM5135 -- inductive proximity sensor, 40x40 mm block, 40 mm range, correction factor K=1 (equal range on all metals), complementary PNP NO/NC, magnetic-field immune, 10...36 V DC, IP69K.

What output or connection does the IFM IM5135 have?

The IFM IM5135 has -- Output: Complementary PNP NO/NC.

Where can I get the IFM IM5135 datasheet?

The official IFM IM5135 datasheet (PDF) is linked in the Datasheet & Manual section on this page.
