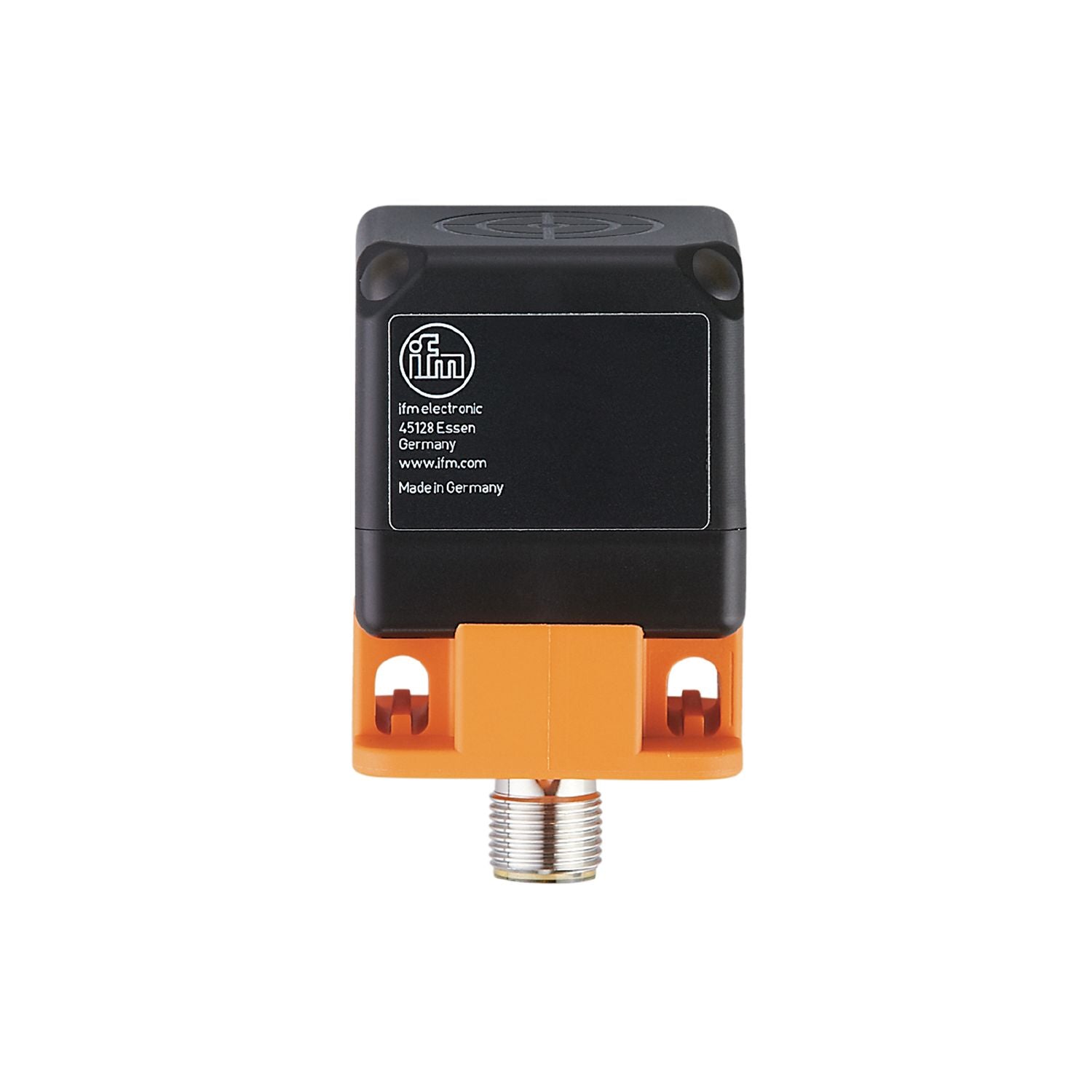

IM5118 - ifm rectangular Proximity Sensor

Name: IM5118 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IM5118
Price: 343.00 AED
Availability: InStock

SKUIM5118Brandifm

AED 343.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IM5118 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 15mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 26.5...31.6 DC supply voltage, and a AS-i output, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: AS-i
Detection Range: 15
Connection Type: 1 x M12; coding: A; Locking: locking, rotatable
Supply Voltage: 26.5...31.6 DC
IP Rating: IP67

Mounting Type: Flush
Housing Material: PBT; PPE
Minimum Operating Temperature: -25°C
Switching Frequency: 100 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IM5118
