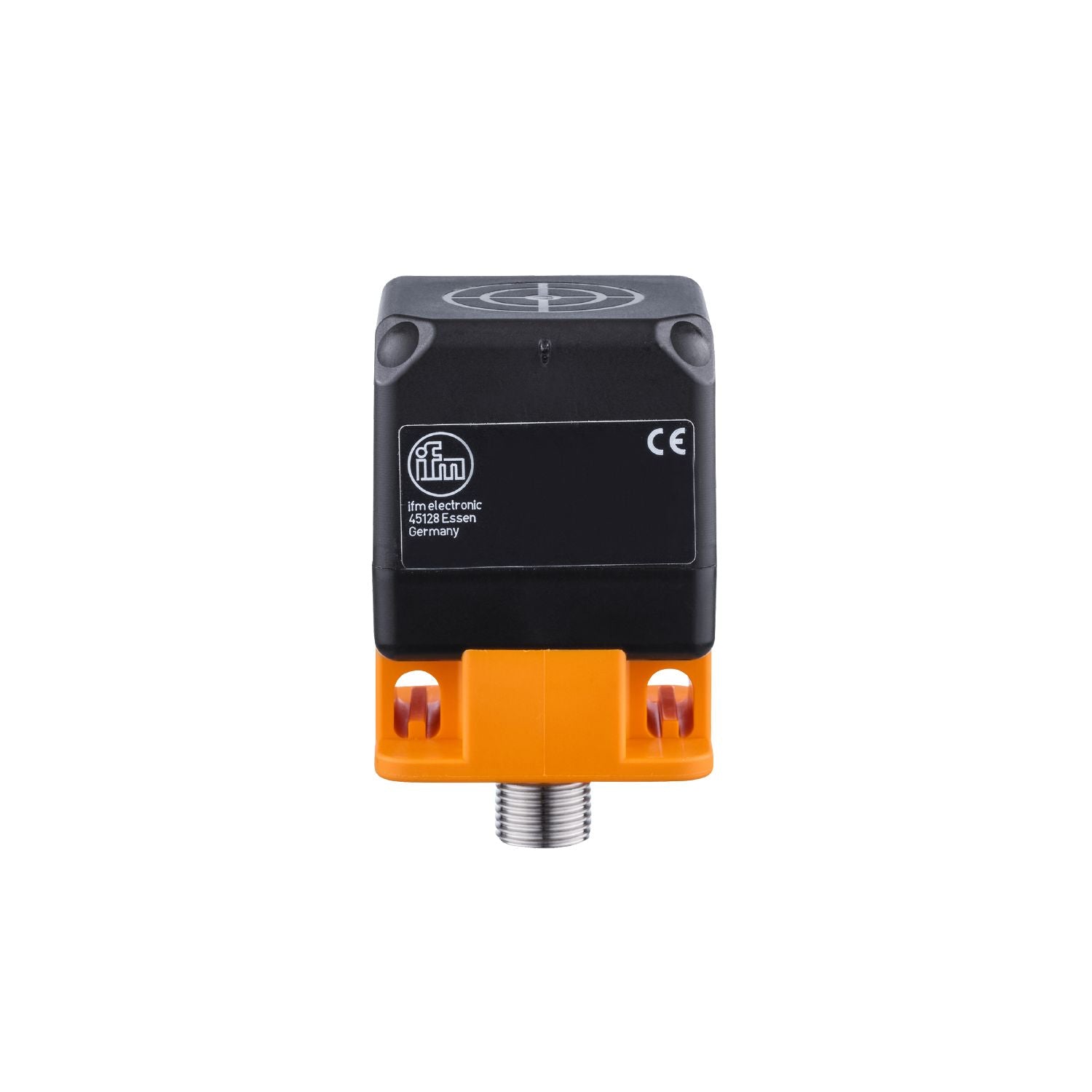

IM5116 - ifm rectangular Proximity Sensor

Name: IM5116 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IM5116
Price: 264.00 AED
Availability: InStock

SKUIM5116Brandifm

AED 264.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IM5116 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 35mm sensing range and a rugged PA housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: PNP
Detection Range: 35
Output Function: normally open
Connection Type: 1 x M12; coding: A; Locking: locking, rotatable
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: housing: PA; sensing face: PA black; bevelled housing part: PA; clamp: black; screw: stainless steel (304CU/1.4567)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 80 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 8 kV CD / 6 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IM5116
Short Circuit Overload Protection: yes
