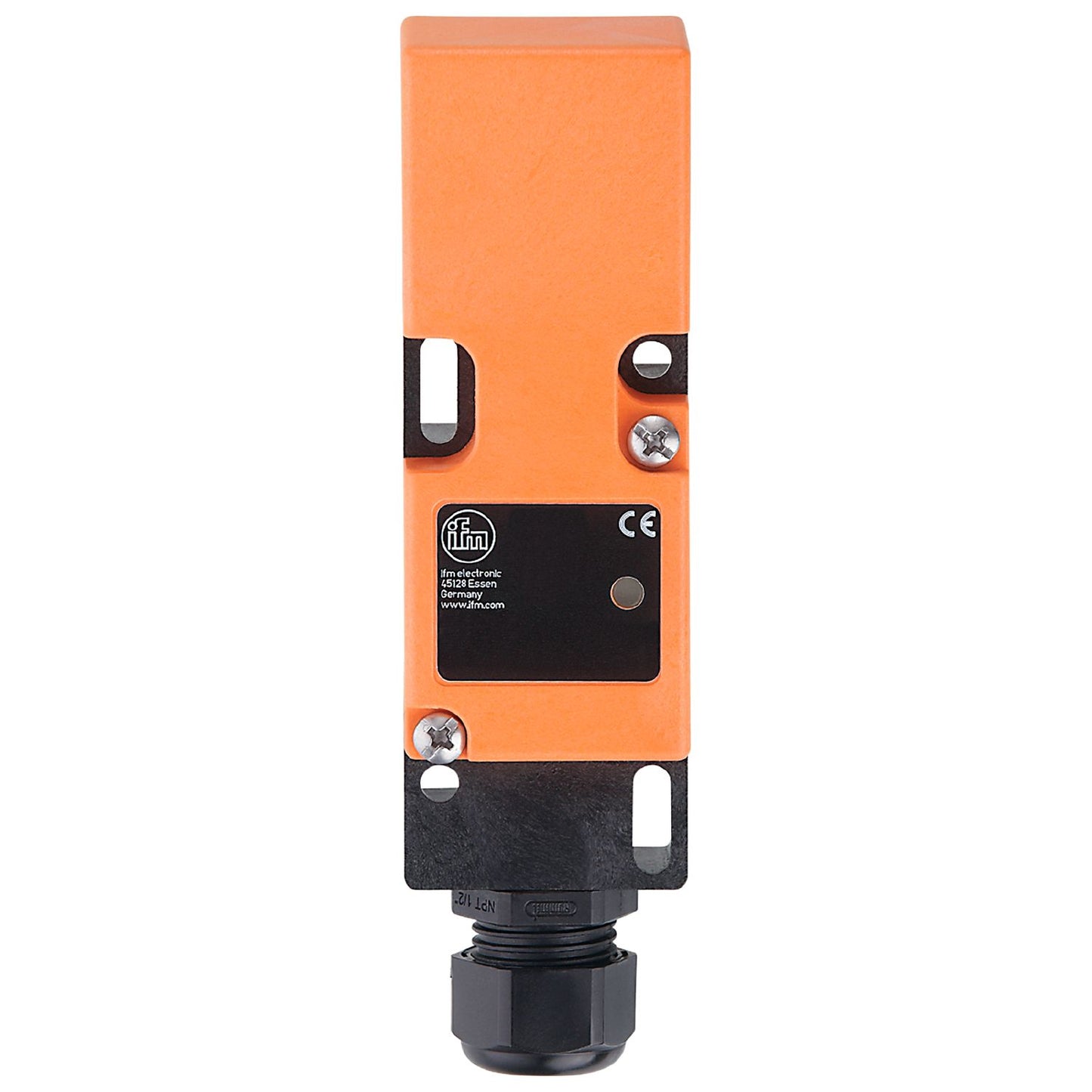

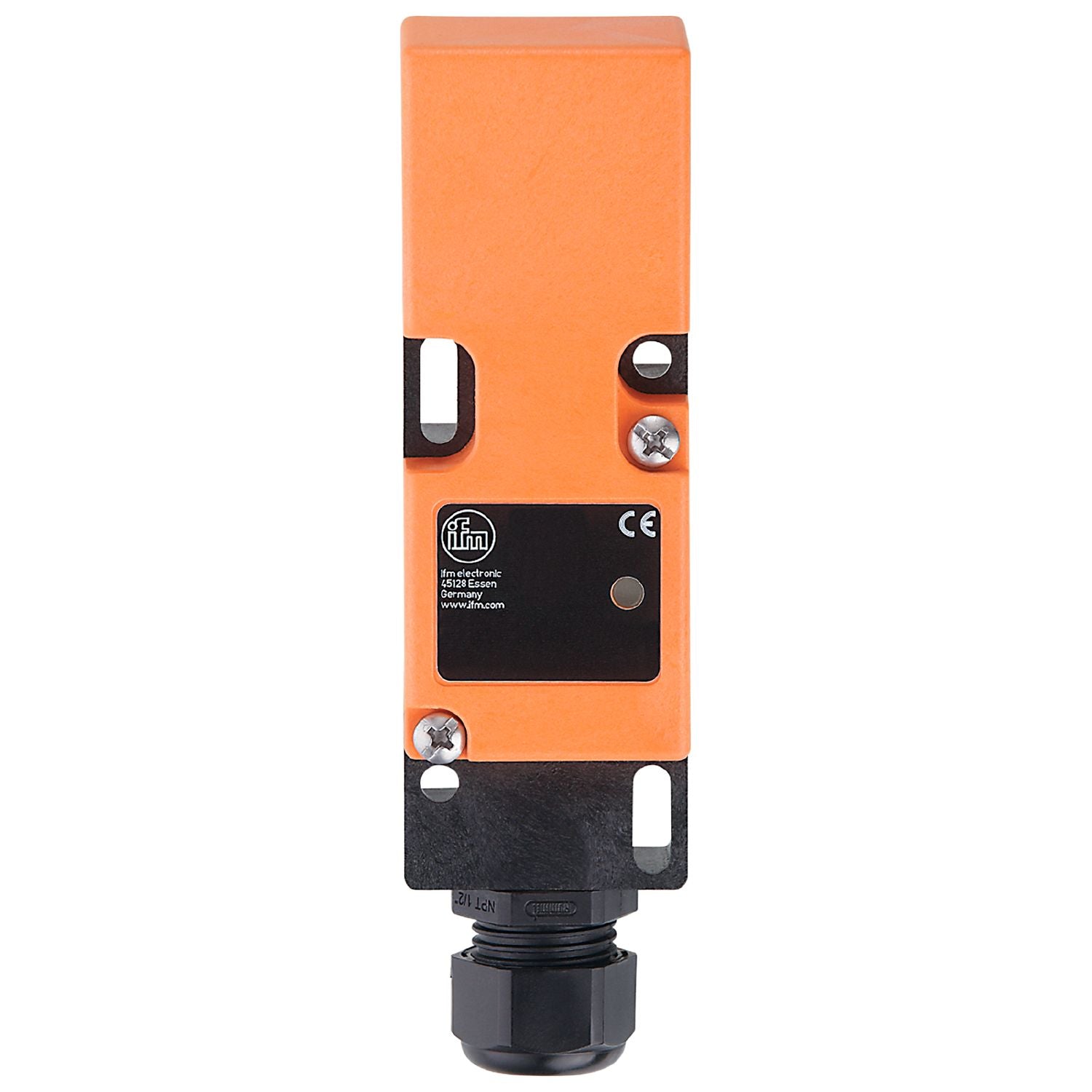

The IM5024 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 20mm sensing range and a rugged PPE housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP
Detection Range: 20
Output Function: normally open / normally closed; (selectable)
Supply Voltage: 10...36 DC
IP Rating: IP65
Mounting Type: Non-Flush
Housing Material: PPE

Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 300 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IM5024
Short Circuit Overload Protection: yes
