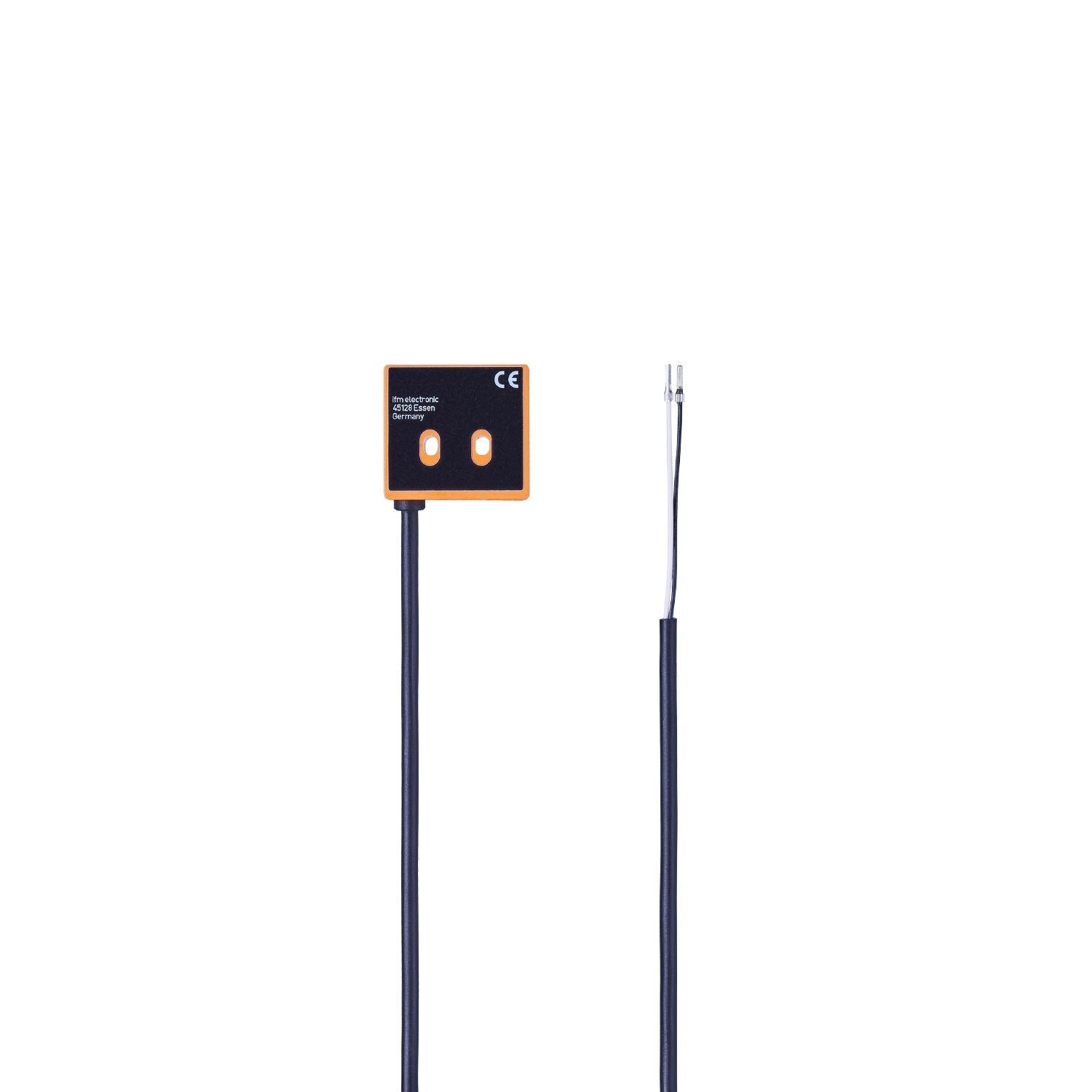

IJ5003 - ifm rectangular Proximity Sensor

Name: IJ5003 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: IJ5003
Price: 389.00 AED
Availability: InStock

SKUIJ5003Brandifm

AED 389.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IJ5003 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 2mm sensing range and a rugged PPE housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP/NPN output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP/NPN
Detection Range: 2
Output Function: normally open / normally closed; (selectable)
Cable Length: 0.15 m
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: PPE; PC; TPE-E
Maximum DC Voltage: 4.6
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IJ5003
Short Circuit Overload Protection: yes
