IIM208 - ifm threaded type Proximity Sensor

Name: IIM208 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IIM208
Price: 403.00 AED
Availability: InStock

SKUIIM208Brandifm

AED 403.00

Sale Sold out

Shipping calculated at checkout.

Quantity

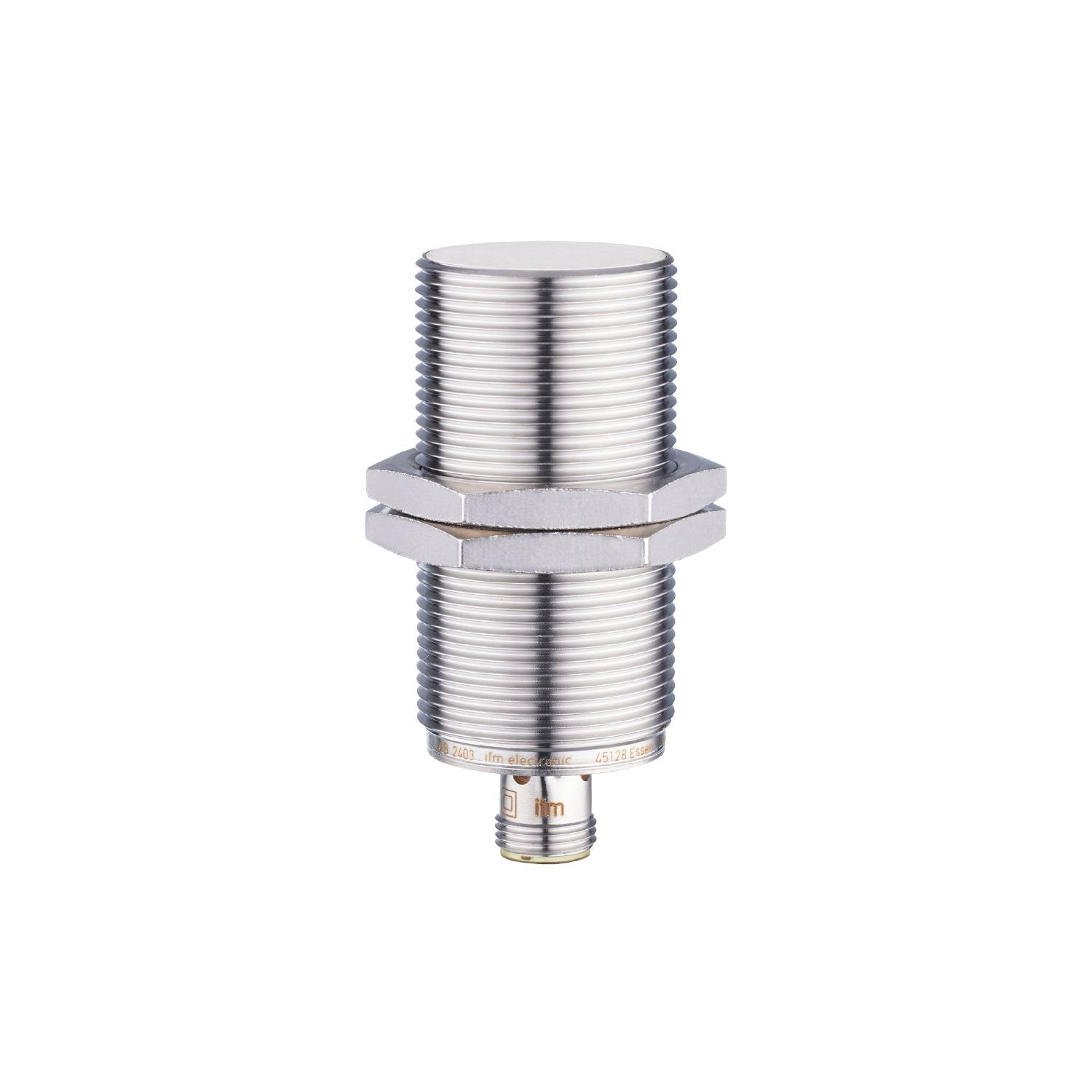

The IIM208 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 12mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...60 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 12
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...60 DC
IP Rating: IP67; IP69K
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404); Sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 200
Switching Frequency: 100 Hz
Maximum Operating Temperature: 85°C
Standards Met: automotive area | ; noise emission and noise immunity: ECE R10 | E1 type approval; noise immunity according to DIN ISO 11452-2 | 100 V/m; conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) and ISO16750-2: 2012 (load dump) | ; pulse | 1 2a 2b 3a 3b 4 Load dump; severity level | III III III III III III Test A; failure criterion | C A C A A C C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV mains line to line; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IIM208
Short Circuit Overload Protection: yes
