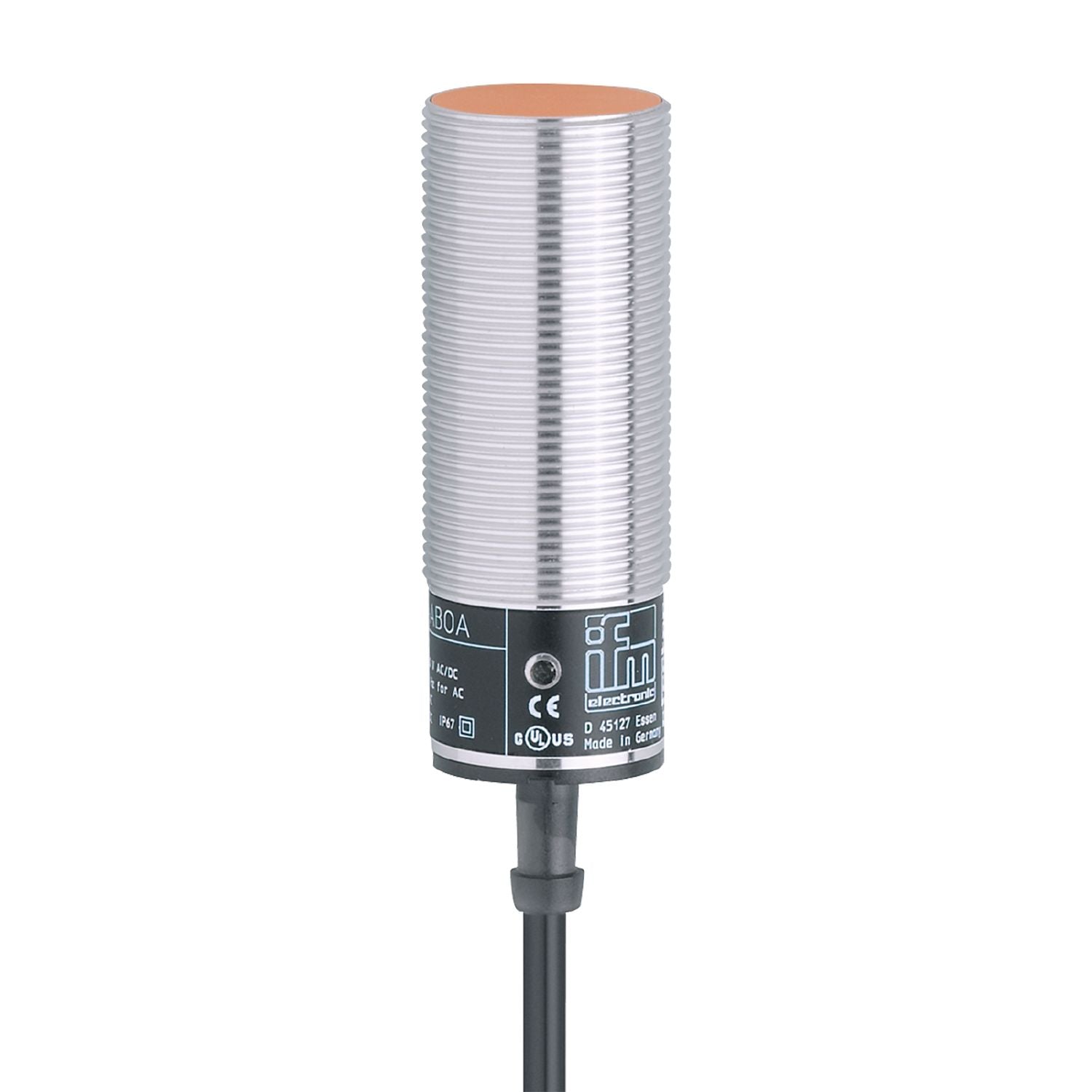

II5952 - ifm threaded type Proximity Sensor

Name: II5952 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: II5952
Price: 364.00 AED
Availability: InStock

SKUII5952Brandifm

AED 364.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The II5952 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 10mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 10
Output Function: normally open
Connection Type: 1 x AMP (282105-1; 281934-4)
Cable Length: 0.5 m
Supply Voltage: 10...36 DC
IP Rating: IP67

Mounting Type: Flush
Housing Material: brass white bronze coated; sensing face: PBT; end cap: TPE
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 250 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 emission | class B
Series: II5952
Short Circuit Overload Protection: yes
