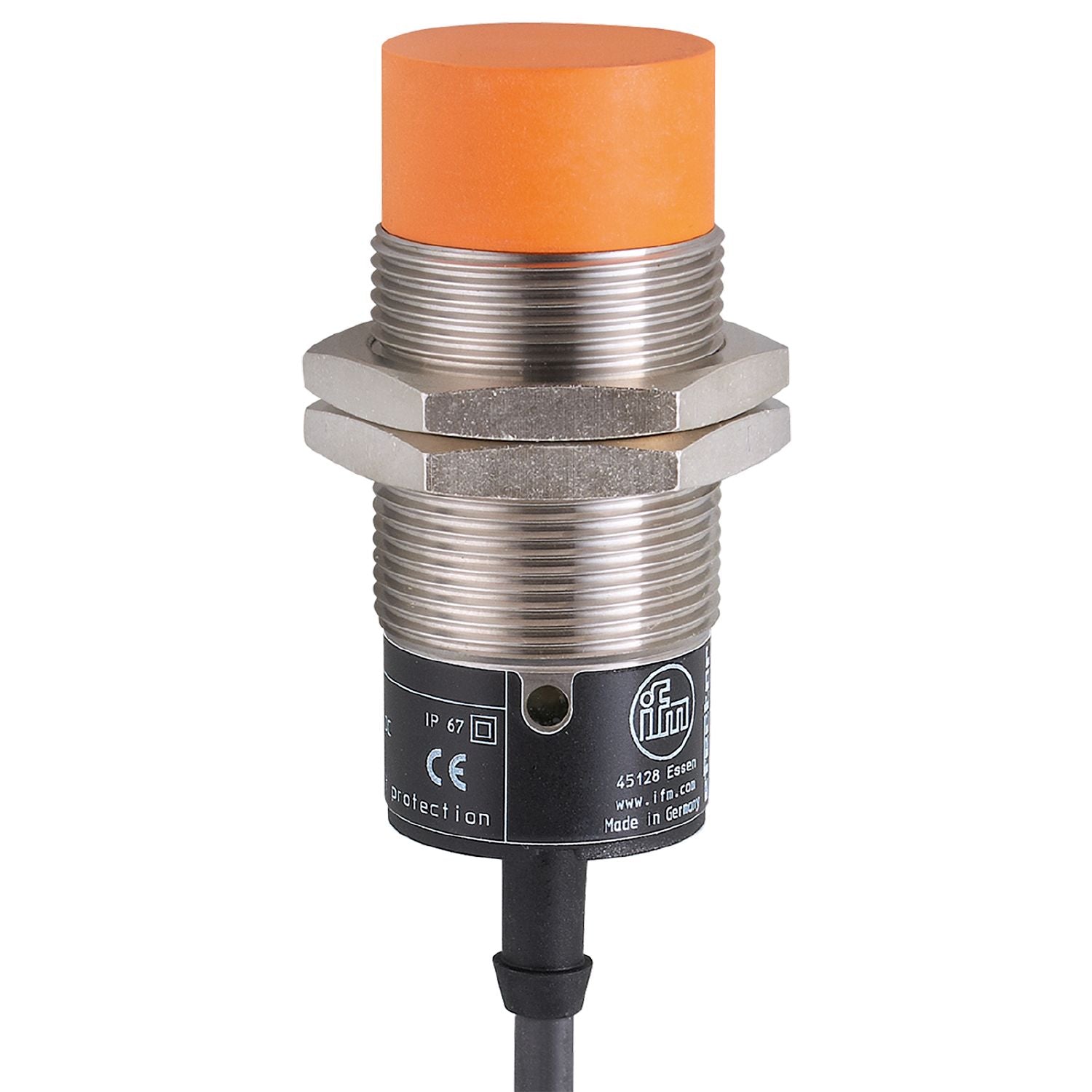

II5936 - ifm threaded type Proximity Sensor

Name: II5936 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: II5936
Price: 421.00 AED
Availability: InStock

SKUII5936Brandifm

AED 421.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The II5936 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 15mm sensing range and a rugged threaded sleeve: stainless steel housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with complementary switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 15
Output Function: complementary
Cable Length: 6 m
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: threaded sleeve: stainless steel; sensing face: PBT; end cap: TPE
Maximum DC Voltage: 2.5
Minimum Operating Temperature: 0°C
Switching Current: 70
Switching Frequency: 250 Hz
Maximum Operating Temperature: 130°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 emission | class B
Series: II5936
Short Circuit Overload Protection: yes
