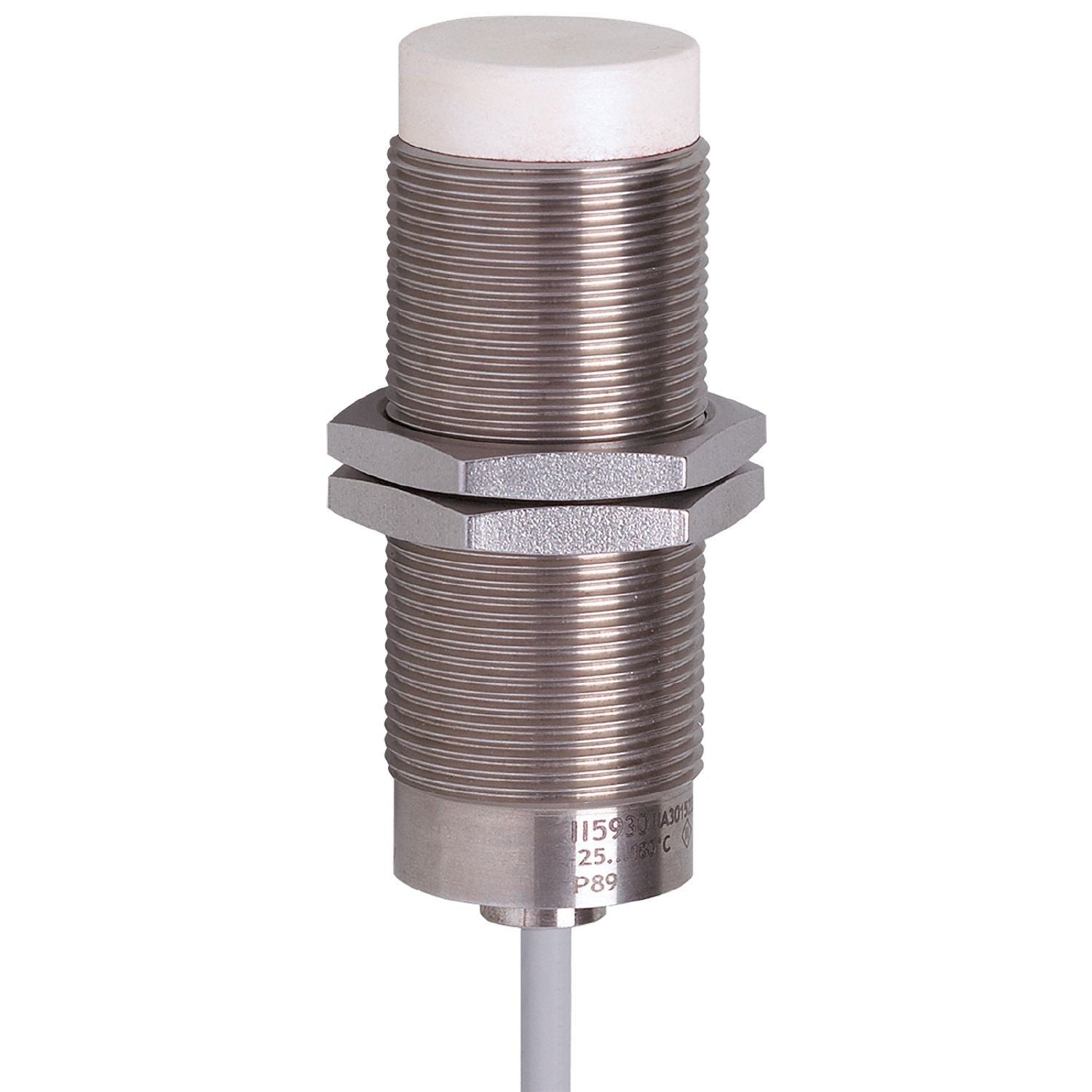

II5930 - ifm threaded type Proximity Sensor

Name: II5930 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: II5930
Price: 1461.00 AED
Availability: InStock

SKUII5930Brandifm

AED 1,461.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The II5930 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 15mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...35 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 15
Output Function: normally open
Cable Length: 5 m
Supply Voltage: 10...35 DC
IP Rating: IP65
Mounting Type: Non-Flush

Housing Material: housing: stainless steel; sensing face: LCP
Maximum DC Voltage: 2
Minimum Operating Temperature: 0°C
Switching Current: 150
Switching Frequency: 200 Hz
Maximum Operating Temperature: 180°C
Standards Met: EN 61000-4-2 ESD | 2 kV CD / 4 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V
Series: II5930
Short Circuit Overload Protection: yes
