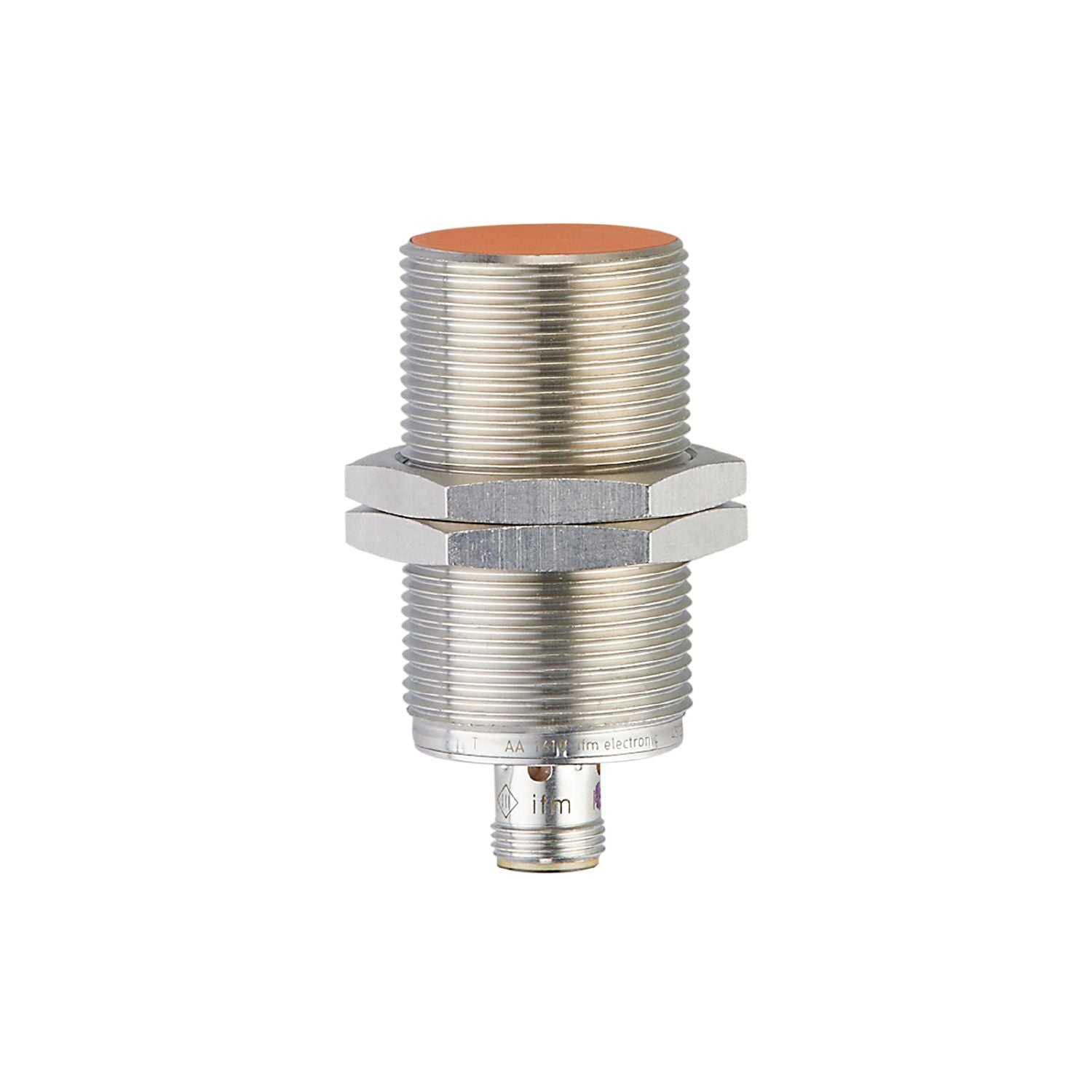

II5851 - ifm threaded type Proximity Sensor

Name: II5851 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: II5851
Price: 333.00 AED
Availability: InStock

SKUII5851Brandifm

AED 333.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The II5851 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 10mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 10
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 400 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 60947-5-2 | ; EN 55011 | class B
Series: II5851
Short Circuit Overload Protection: yes
