IGT002 - ifm threaded type Proximity Sensor

Name: IGT002 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IGT002
Price: 435.00 AED
Availability: InStock

SKUIGT002Brandifm

AED 435.00

Sale Sold out

Shipping calculated at checkout.

Quantity

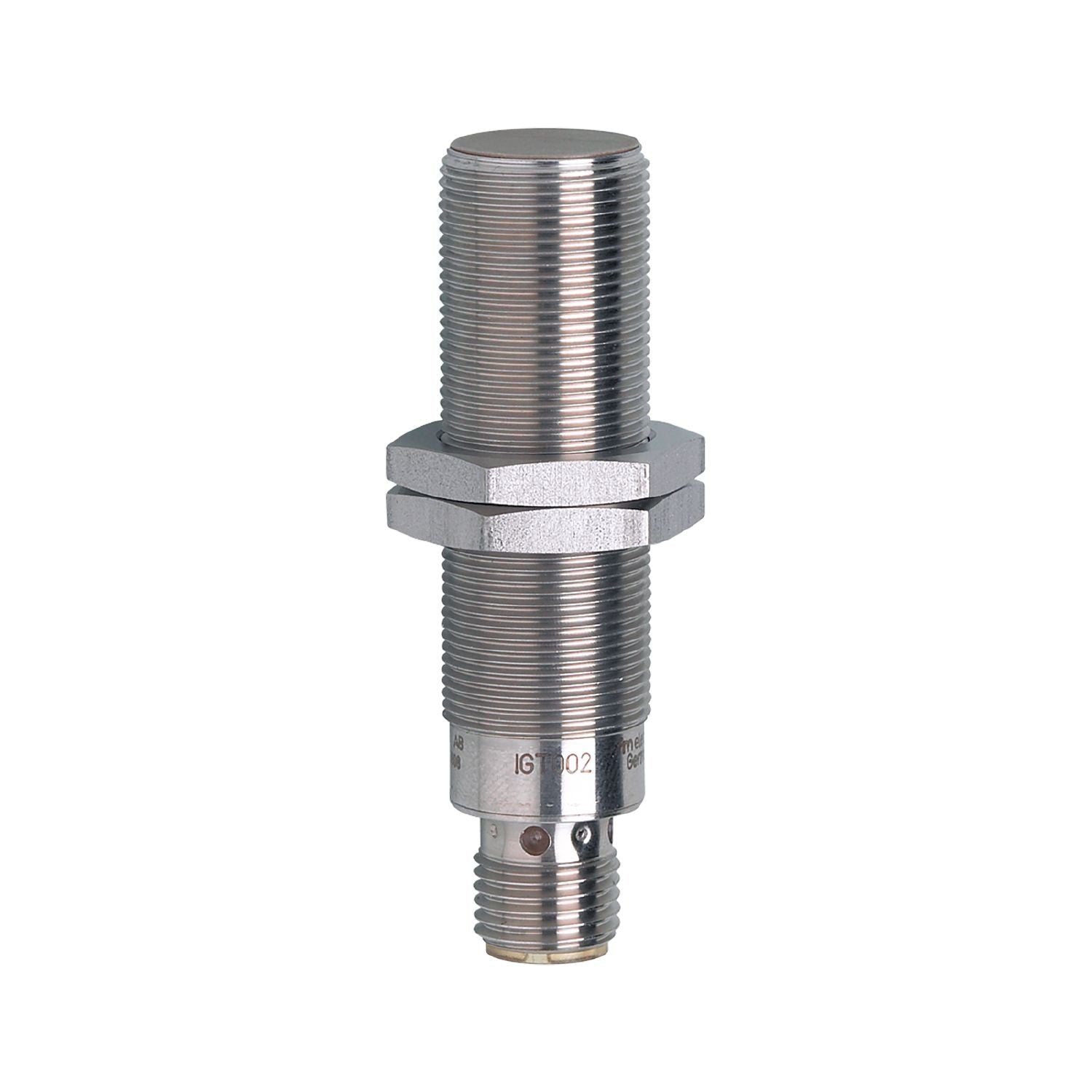

The IGT002 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 5mm sensing range and a rugged threaded sleeve: stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP68 protection rating. It operates on a 20...140 AC/DC supply voltage, and normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Detection Range: 5
Output Function: normally open
Connection Type: 1 x 1/2"; coding: C
Supply Voltage: 20...140 AC/DC
IP Rating: IP68; IP69K; ("COP")
Mounting Type: Flush

Housing Material: threaded sleeve: stainless steel (316L/1.4404); sensing face: PEEK; lock nuts: stainless steel
Maximum DC Voltage: 5.5
Minimum Operating Temperature: 0°C
Switching Current: 80; (200 (...80 °C))
Switching Frequency: 400 Hz
Maximum Operating Temperature: 100°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IGT002
Short Circuit Overload Protection: yes
