IGS715 - ifm threaded type Proximity Sensor

Name: IGS715 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IGS715
Price: 245.00 AED
Availability: InStock

SKUIGS715Brandifm

AED 245.00

Sale Sold out

Shipping calculated at checkout.

Quantity

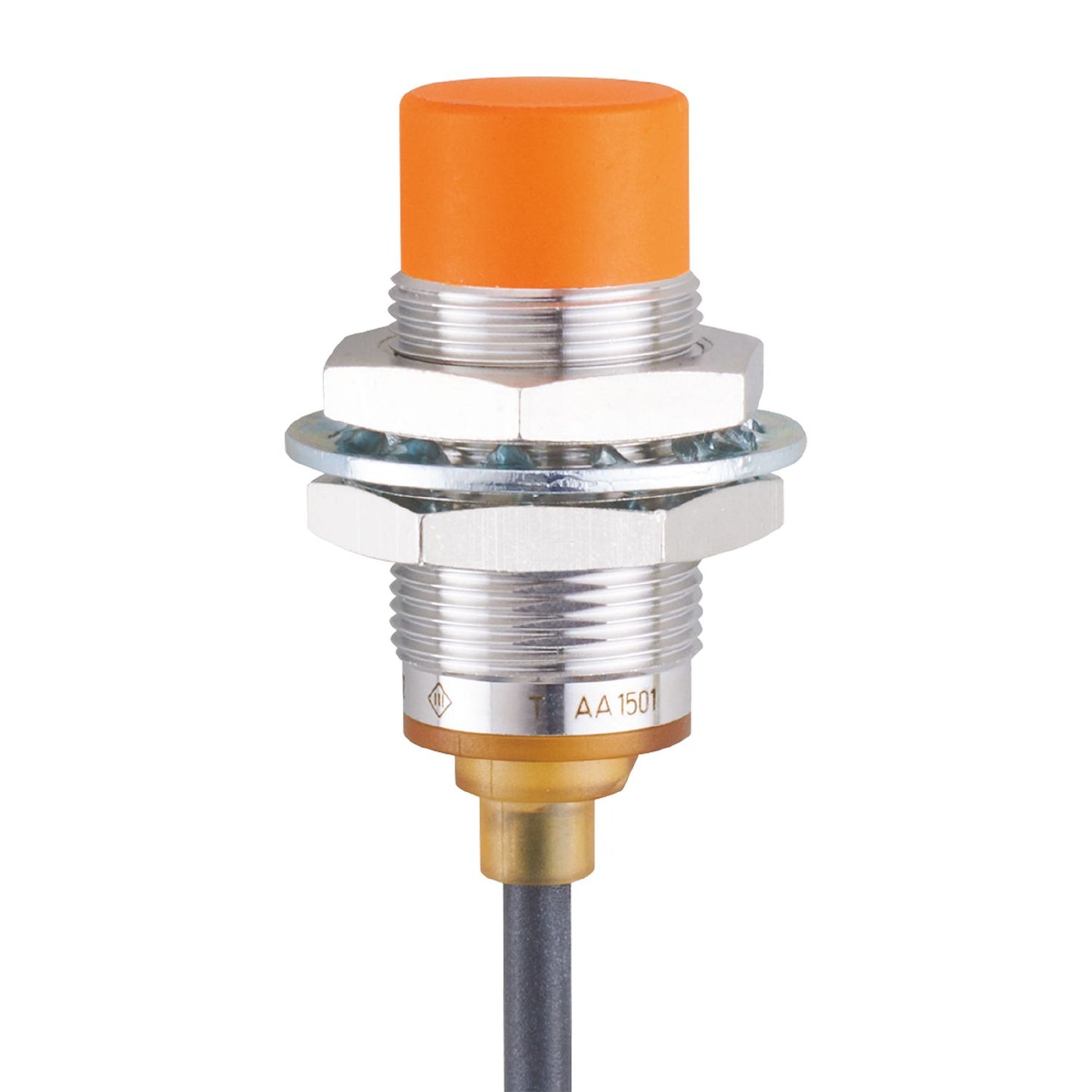

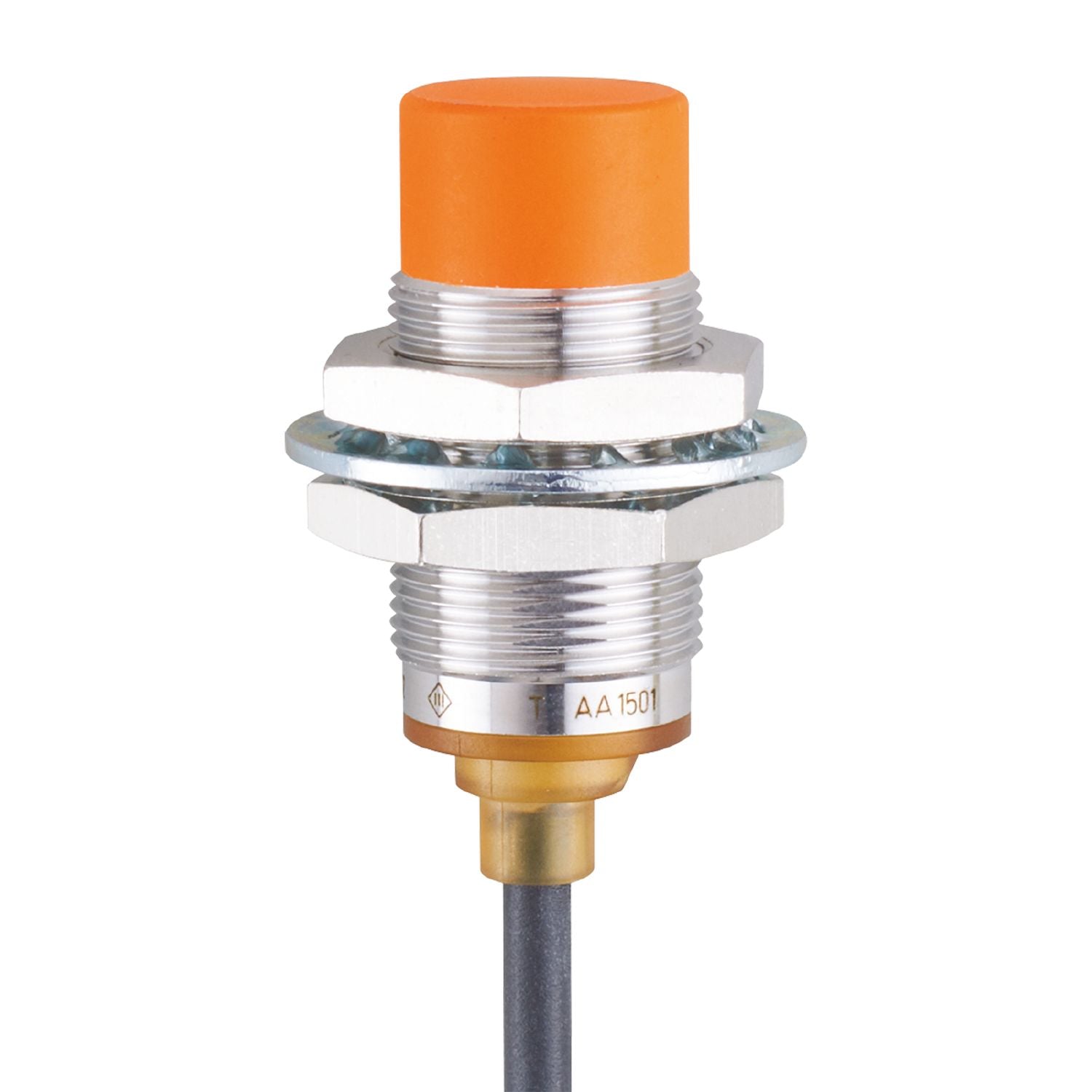

The IGS715 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 12mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC; ("supply limited voltage / current" to UL) supply voltage, and a PNP/NPN output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 12
Output Function: normally closed
Cable Length: 2 m
Supply Voltage: 10...30 DC; ("supply limited voltage / current" to UL)
IP Rating: IP65; IP66; IP67; IP68; IP69K
Mounting Type: Non-Flush

Housing Material: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 5
Minimum Operating Temperature: -40°C
Switching Current: 100
Switching Frequency: 300 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IGS715
Short Circuit Overload Protection: yes
