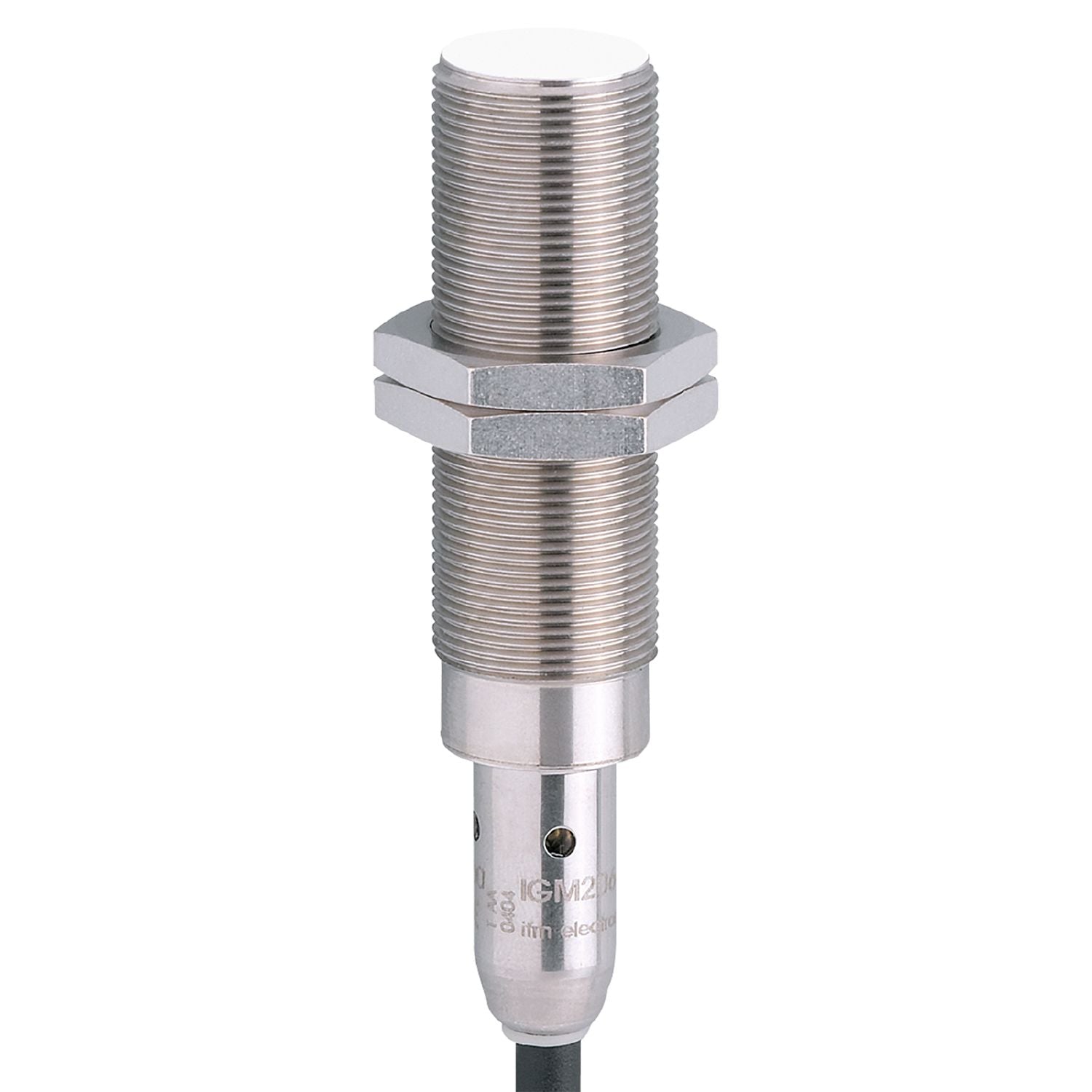

The IGM215 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP/NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 8
Output Function: normally open
Cable Length: 0.8 m
Supply Voltage: 10...36 DC
IP Rating: IP67; IP69K
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404); sensing face: LCP
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 100
Switching Frequency: 200 Hz
Maximum Operating Temperature: 85°C
Standards Met: noise immunity according to DIN ISO 11452-2 | 100 V/m; conducted interference acc. to ISO 7637-2 | ; pulse | 1 2 3a 3b 4 5; severity level | IV IV IV IV IV IV; failure criterion | C C A A A C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IGM215
Short Circuit Overload Protection: yes
