IGM202 - ifm threaded type Proximity Sensor

Name: IGM202 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IGM202
Price: 318.00 AED
Availability: InStock

SKUIGM202Brandifm

AED 318.00

Sale Sold out

Shipping calculated at checkout.

Quantity

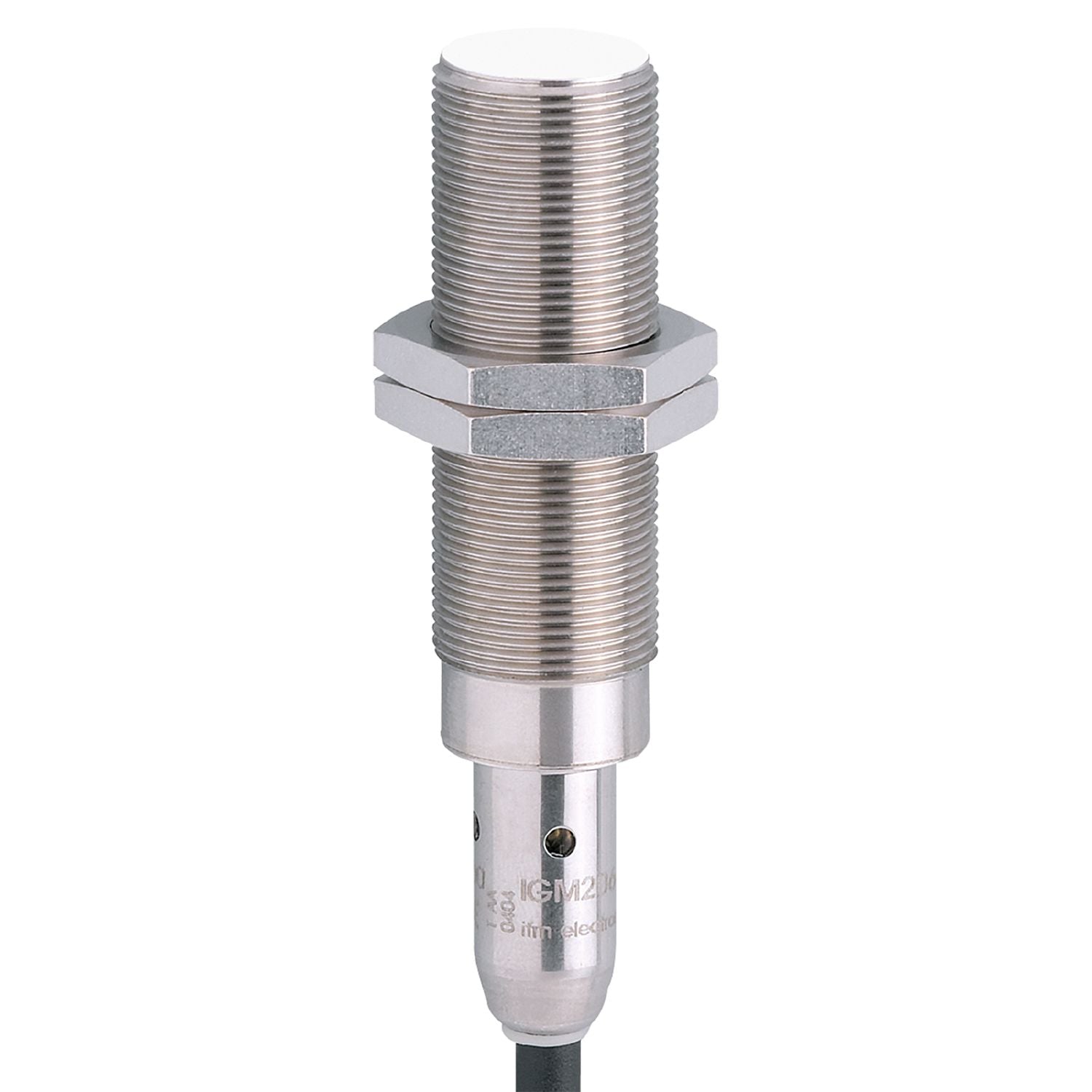

The IGM202 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP/NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 8
Output Function: normally open
Cable Length: 6 m
Supply Voltage: 10...36 DC
IP Rating: IP67; IP69K
Mounting Type: Flush

Housing Material: housing: stainless steel; sensing face: LCP; lock nuts: brass
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 100
Switching Frequency: 200 Hz
Maximum Operating Temperature: 85°C
Standards Met: automotive area | ; noise emission and noise immunity: ECE R10 | E1 type approval; noise immunity according to DIN ISO 11452-2 | 100 V/m; conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) and ISO16750-2: 2012 (load dump) | ; pulse | 1 2a 2b 3a 3b 4 Load dump; severity level | III III III III III III Test A; failure criterion | C A C A A C C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV mains line to line; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IGM202
Short Circuit Overload Protection: yes
