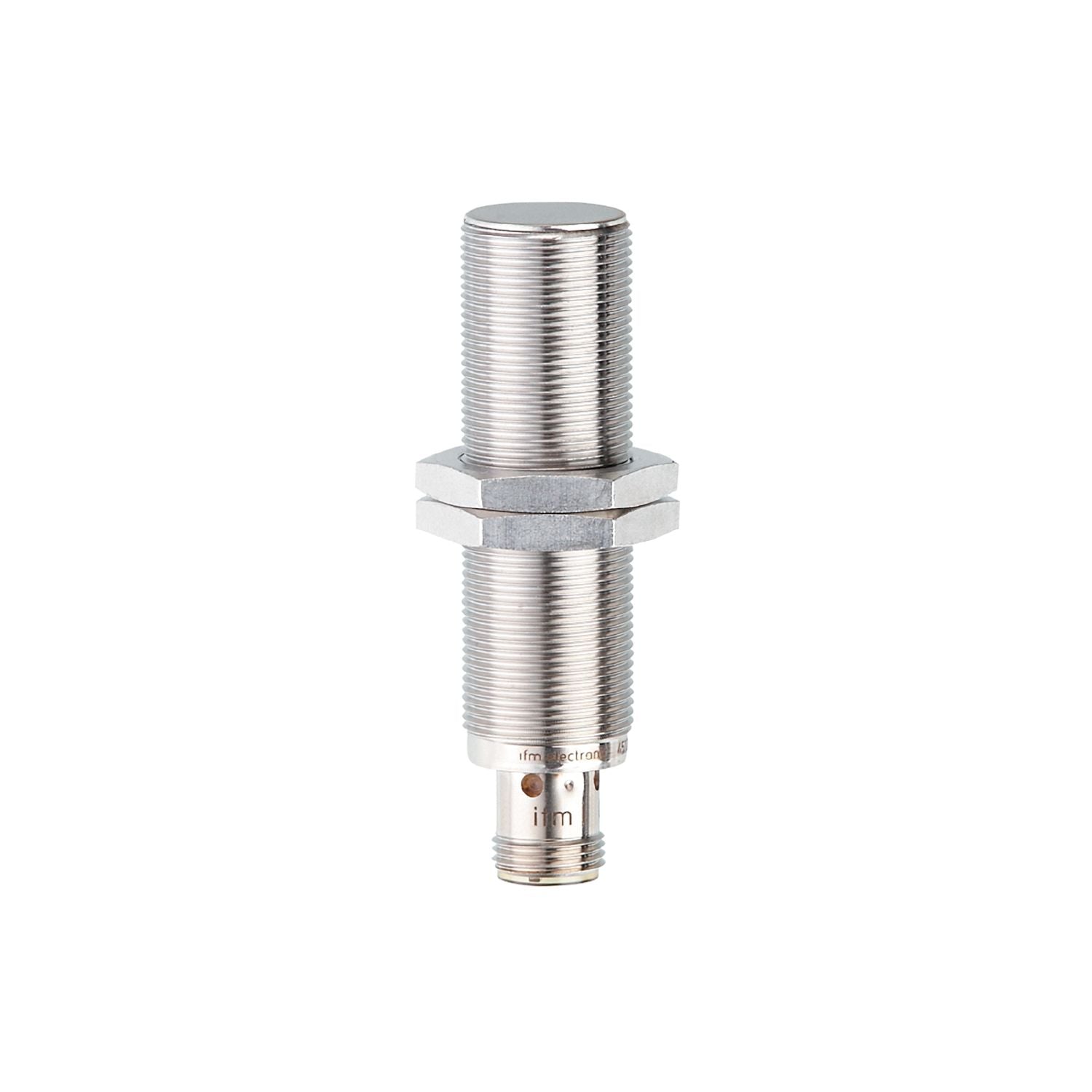

IGC252 - ifm threaded type Proximity Sensor

Name: IGC252 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IGC252
Price: 338.00 AED
Availability: InStock

SKUIGC252Brandifm

AED 338.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IGC252 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 5mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: NPN
Detection Range: 5
Output Function: normally open
Supply Voltage: 10...30 DC
IP Rating: IP67; IP68; ("Coolant")
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PEI; lock nuts: stainless steel (316L/1.4404)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 100 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 emission | class B
Series: IGC252
Short Circuit Overload Protection: yes
