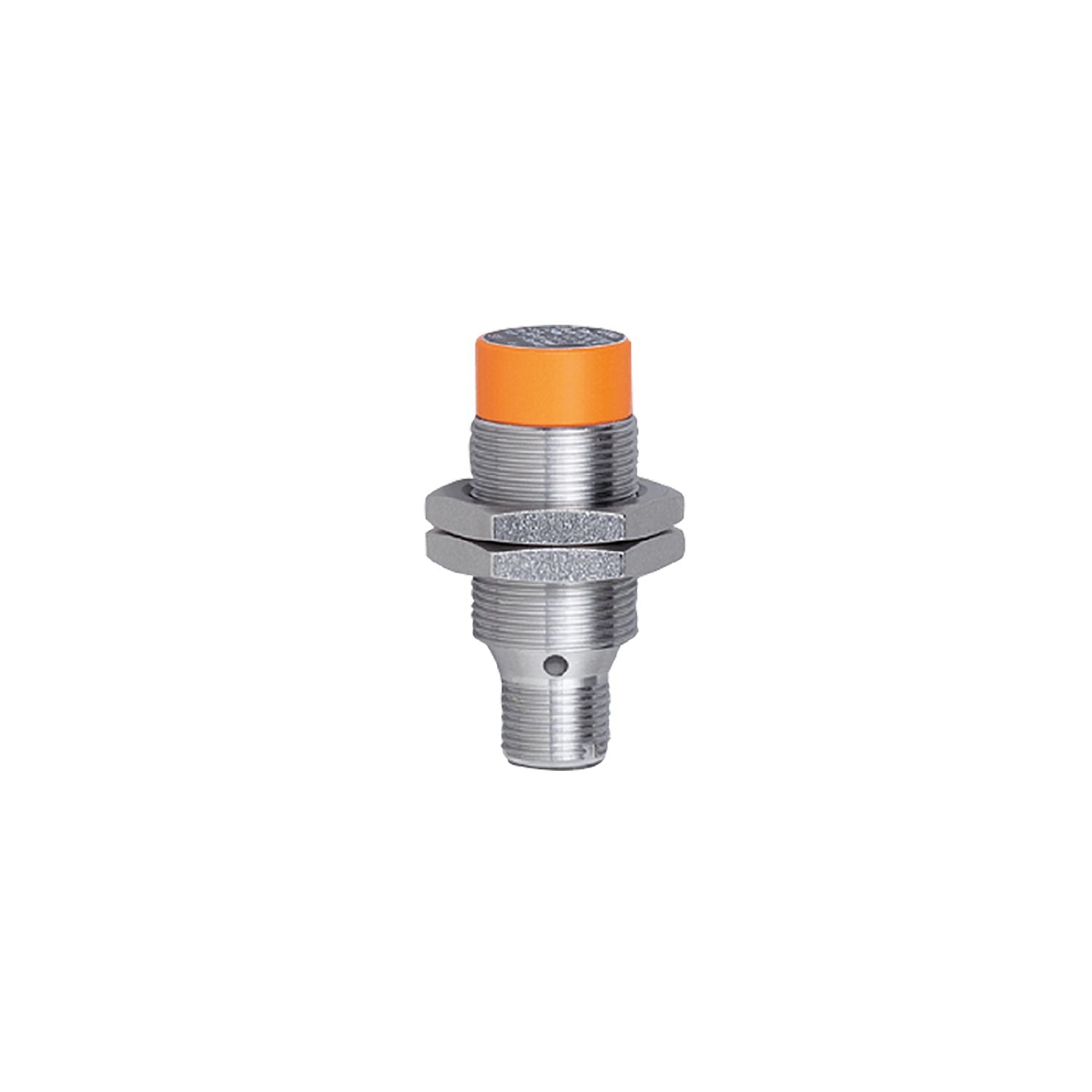

IG5846 - ifm threaded type Proximity Sensor

Name: IG5846 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IG5846
Price: 374.00 AED
Availability: InStock

SKUIG5846Brandifm

AED 374.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IG5846 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 10mm sensing range and a rugged stainless steel (316Ti/1.4571) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with complementary switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 10
Output Function: complementary
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: stainless steel (316Ti/1.4571); sensing face: PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 300 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 emission | class B
Series: IG5846
Short Circuit Overload Protection: yes
