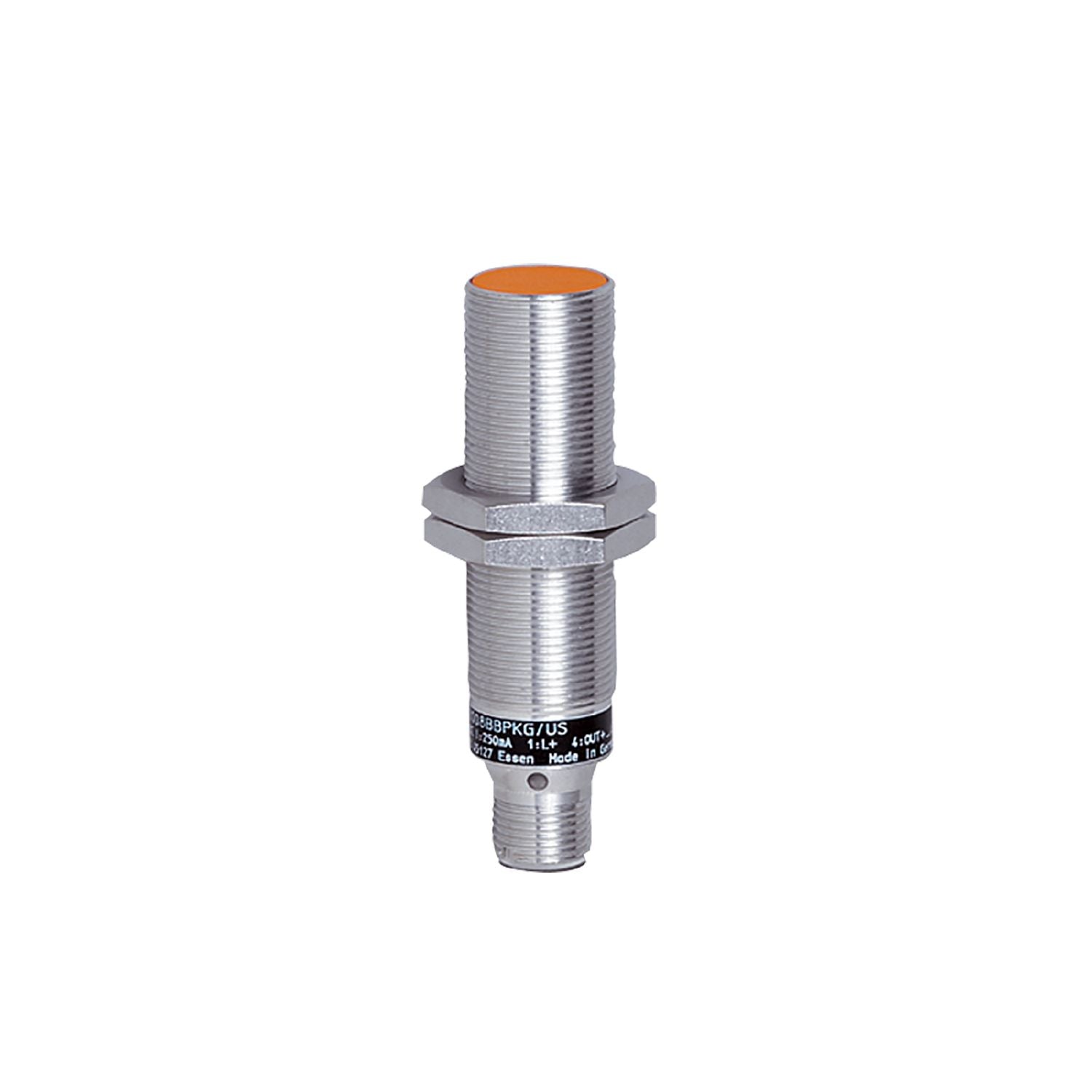

IG5595 - ifm threaded type Proximity Sensor

Name: IG5595 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IG5595
Price: 321.00 AED
Availability: InStock

SKUIG5595Brandifm

AED 321.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IG5595 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 5mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...55 DC supply voltage, and a PNP/NPN output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 5
Output Function: normally open / normally closed; (selectable)
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...55 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: brass white bronze coated; sensing face: PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 400
Switching Frequency: 700 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IG5595
Short Circuit Overload Protection: yes
