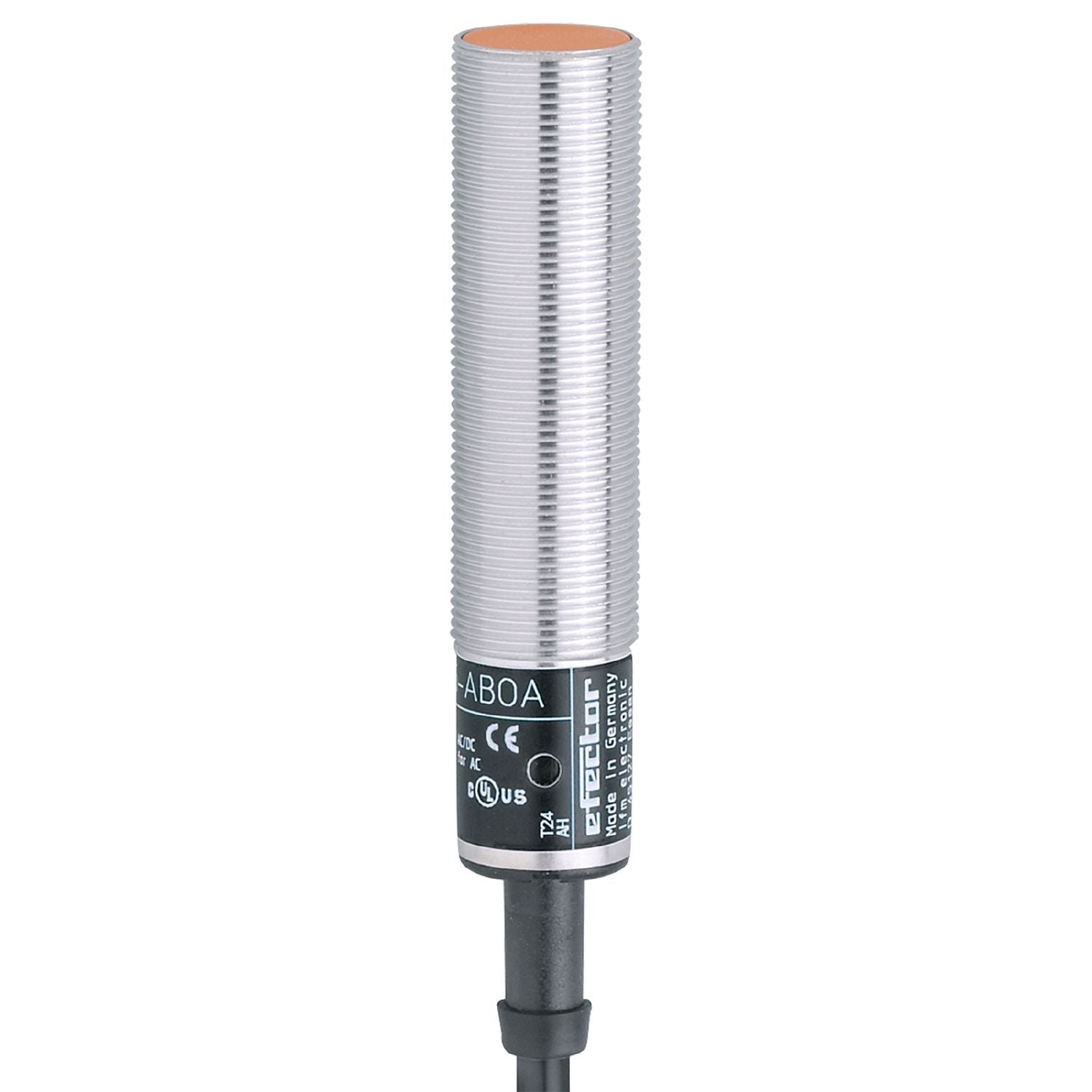

IG0327 - ifm threaded type Proximity Sensor

Name: IG0327 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IG0327
Price: 599.00 AED
Availability: InStock

SKUIG0327Brandifm

AED 599.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IG0327 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 5mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 20...250 AC/DC supply voltage, and normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Detection Range: 5
Output Function: normally closed
Cable Length: 2 m
Supply Voltage: 20...250 AC/DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural
Maximum DC Voltage: 6
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 50 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IG0327
Short Circuit Overload Protection: no
