IG0054 - ifm threaded type Proximity Sensor

Name: IG0054 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IG0054
Price: 537.00 AED
Availability: InStock

SKUIG0054Brandifm

AED 537.00

Sale Sold out

Shipping calculated at checkout.

Quantity

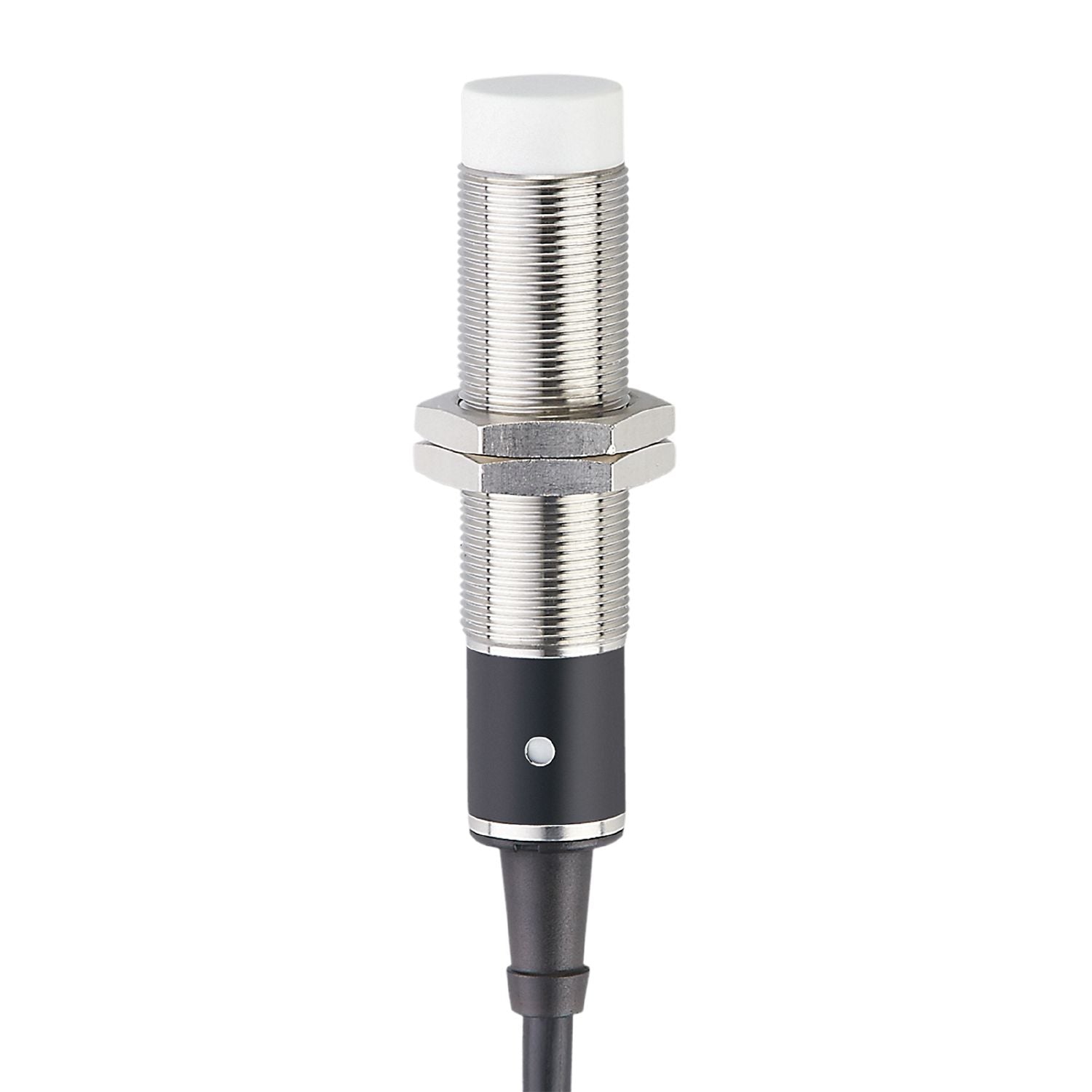

The IG0054 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 8mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 20...250 AC/DC supply voltage, and normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Detection Range: 8
Output Function: normally open
Cable Length: 6 m
Supply Voltage: 20...250 AC/DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: brass white bronze coated; sensing face: PBT natural; conduit attachment: TPU; LED window: PBT natural; lock nuts: brass white bronze coated
Maximum DC Voltage: 6
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 50 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 60947-5-2 | ; EN 55011 | class B
Series: IG0054
Short Circuit Overload Protection: no
