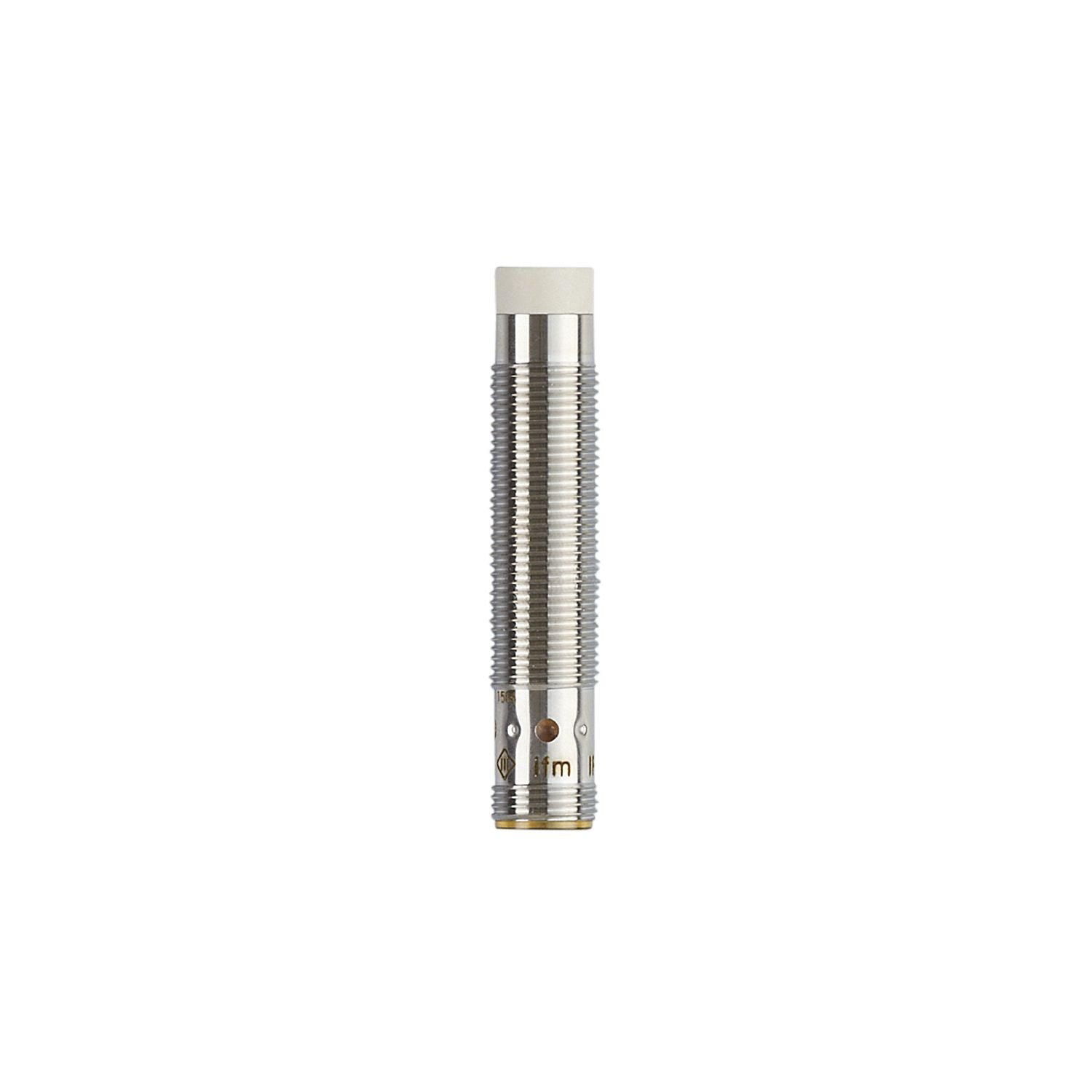

IFS286 - ifm threaded type Proximity Sensor

Name: IFS286 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IFS286
Price: 265.00 AED
Availability: InStock

SKUIFS286Brandifm

AED 265.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IFS286 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 10mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 10
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP65; IP66; IP67; IP68; IP69K
Mounting Type: Non-Flush

Housing Material: brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IFS286
Short Circuit Overload Protection: yes
