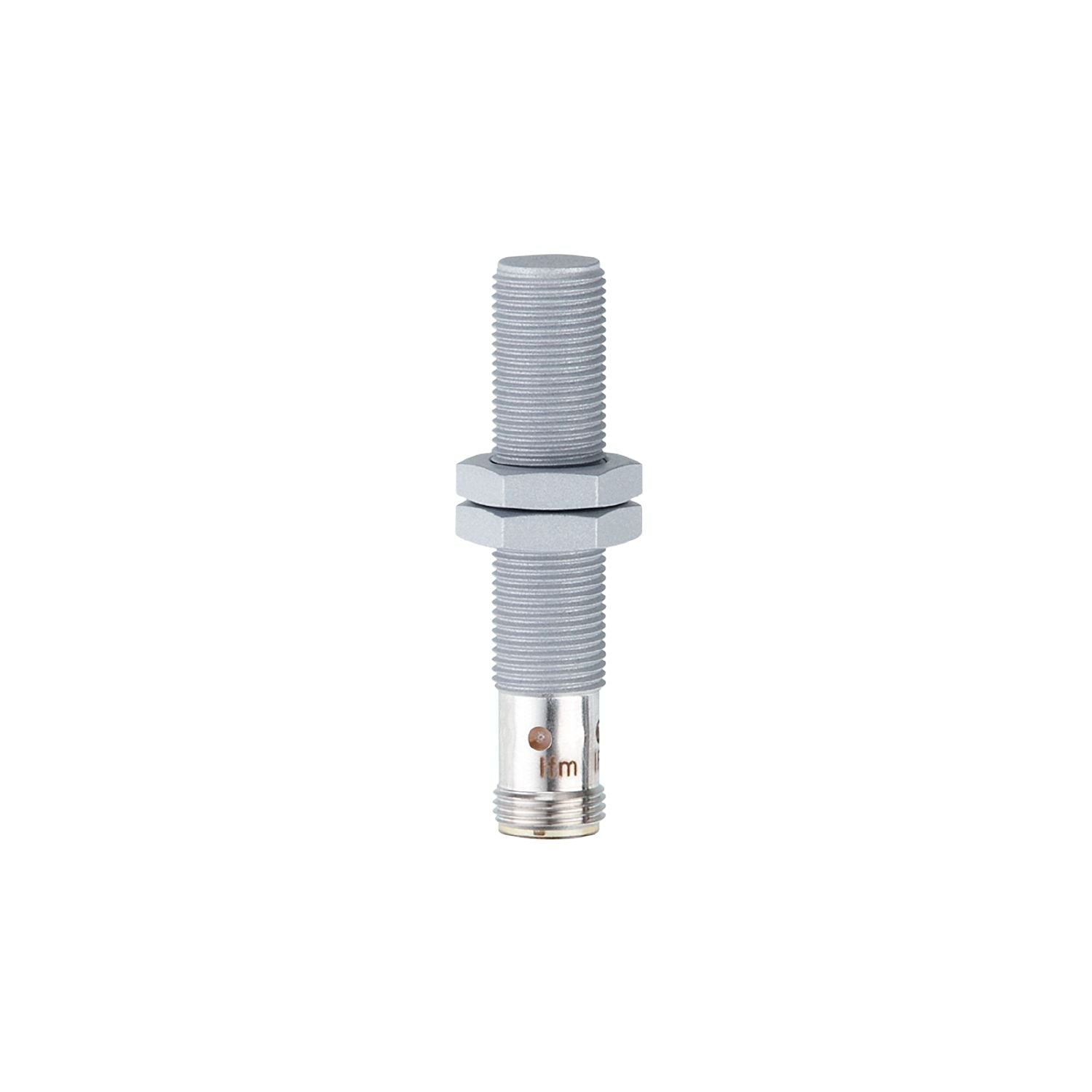

IFR200 - ifm threaded type Proximity Sensor

Name: IFR200 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IFR200
Price: 367.00 AED
Availability: InStock

SKUIFR200Brandifm

AED 367.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IFR200 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged stainless steel (316L/1.4404) anti-spatter housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 4
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404) anti-spatter; sensing face: stainless steel (316L/1.4404) anti-spatter; LED window: PEI; lock nuts: stainless steel (316L/1.4404) anti-spatter
Maximum DC Voltage: 2.5
Minimum Operating Temperature: 0°C
Switching Current: 100
Switching Frequency: 2 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 emission | class B
Series: IFR200
Short Circuit Overload Protection: yes
