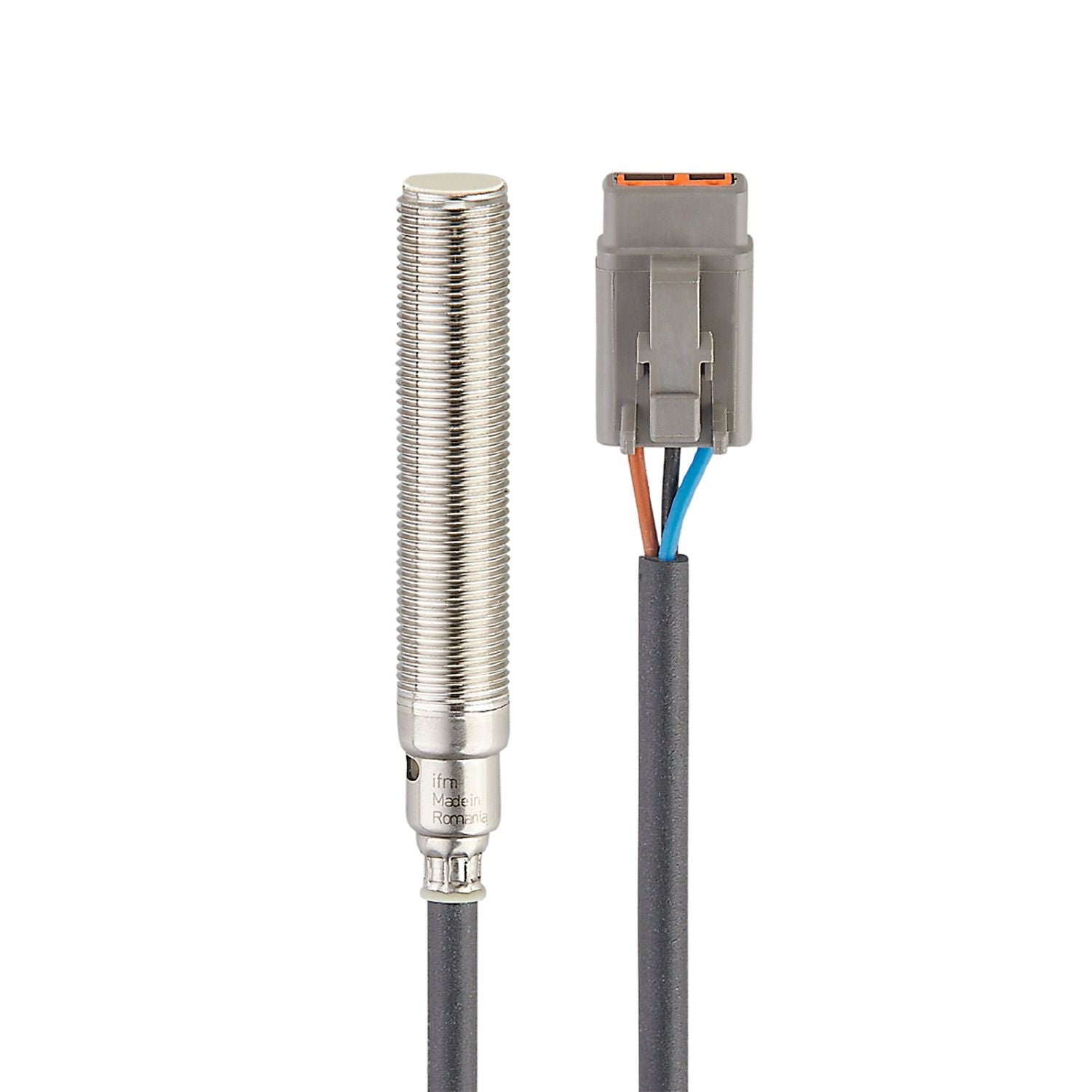

IFM214 - ifm threaded type Proximity Sensor

Name: IFM214 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IFM214
Price: 403.00 AED
Availability: InStock

SKUIFM214Brandifm

AED 403.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IFM214 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged stainless steel housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: NPN
Detection Range: 4
Output Function: normally open
Connection Type: 1 x DEUTSCH connector ((DTM06-3S))
Cable Length: 0.2 m
Supply Voltage: 10...36 DC
IP Rating: IP67; IP69K

Mounting Type: Flush
Housing Material: housing: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 300
Switching Frequency: 400 Hz
Maximum Operating Temperature: 85°C
Standards Met: automotive area | ; noise emission and noise immunity according to the automotive directive 95/54/EC | ; noise immunity according to DIN ISO 11452-2 | 100 V/m; conducted interference acc. to ISO 7637-2 | ; pulse | 1 2 3a 3b 4 5; severity level | IV IV IV IV IV IV; failure criterion | C C A A A C; EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV mains line to line; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IFM214
Short Circuit Overload Protection: yes
